Chapter 2: Hardware Information

2-4

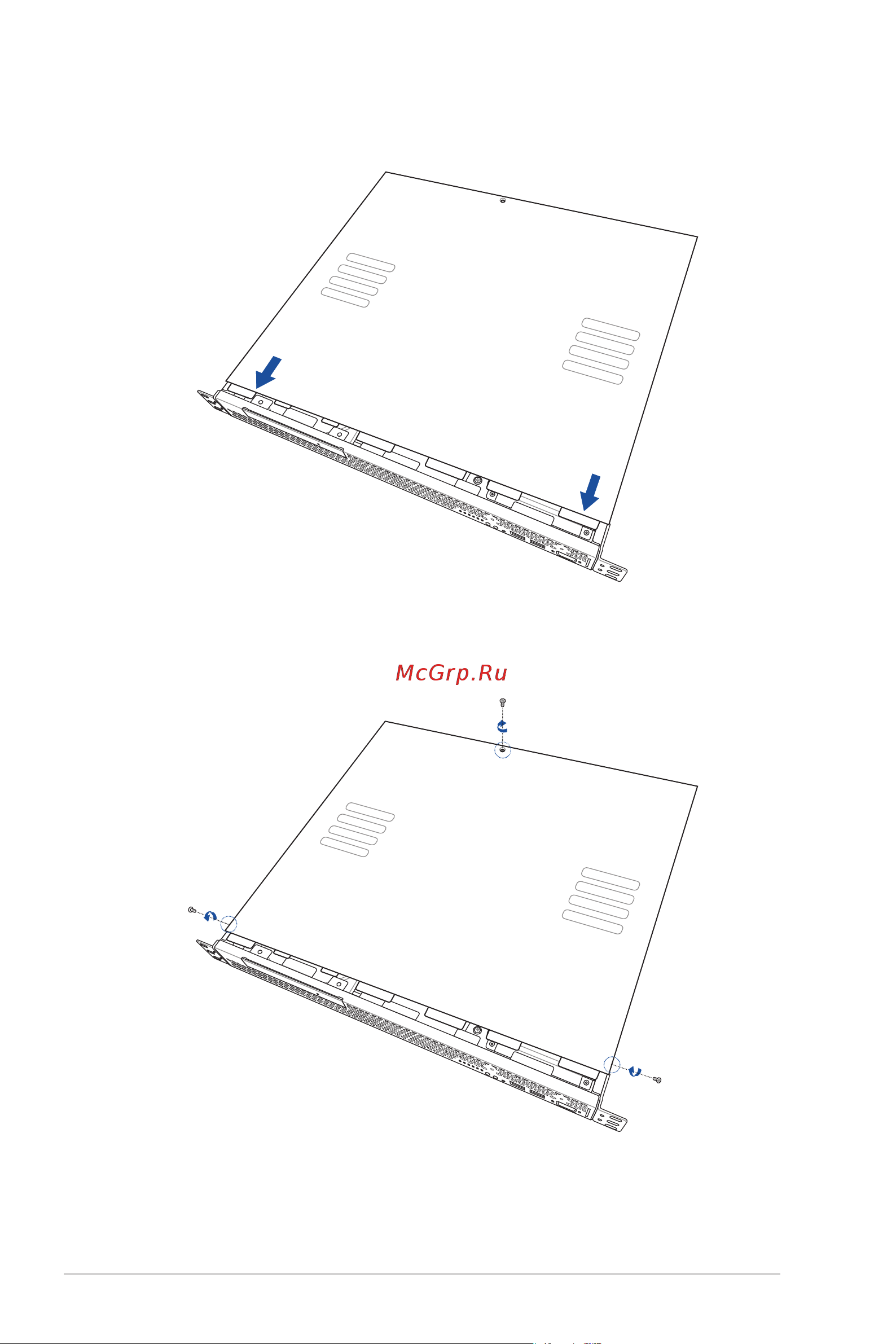

2. Slide the cover toward the front until it snaps in place.

3. Secure the cover with three screws.
