4-28

Chapter 4: Motherboard Information

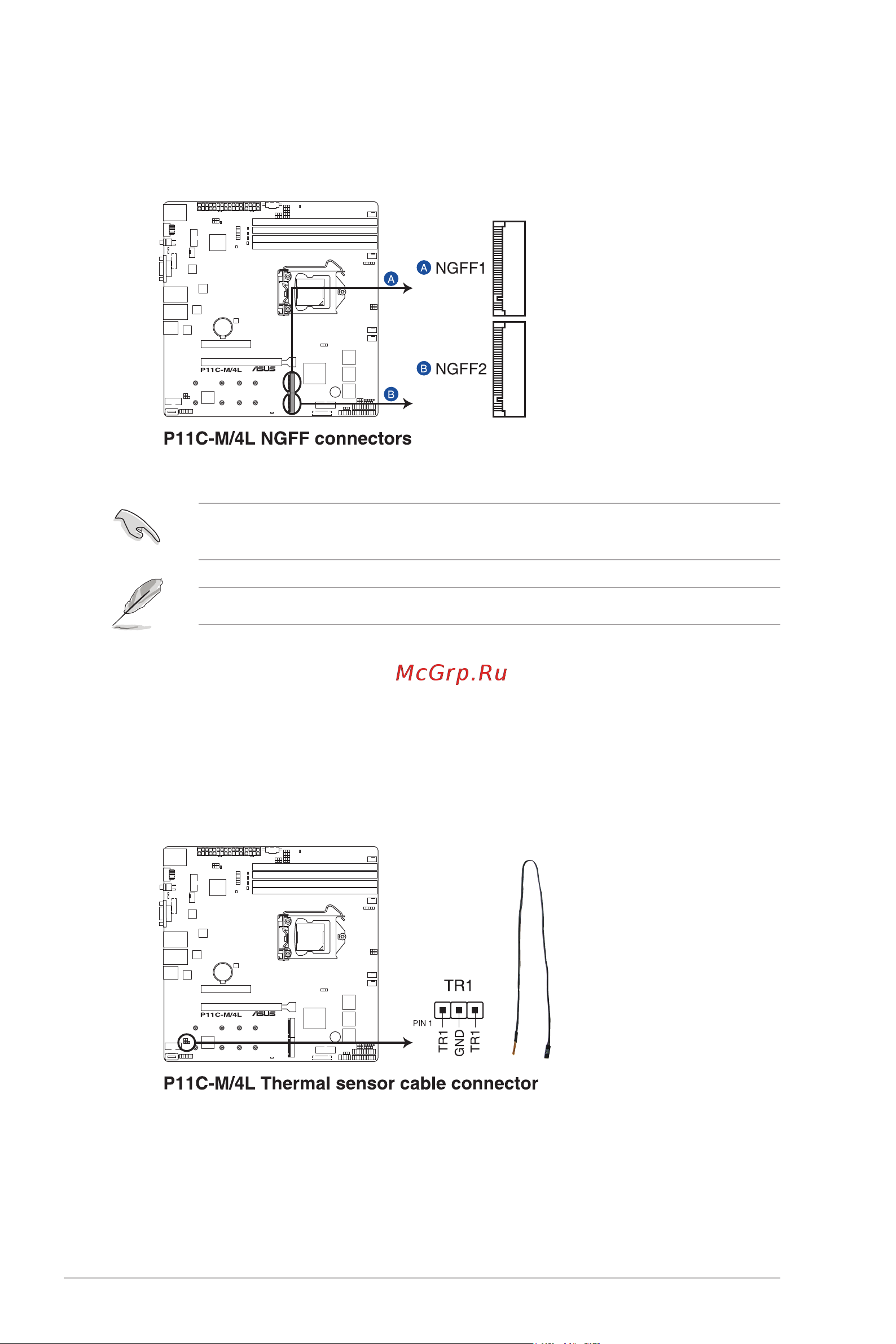

16. M.2 (NGFF) connectors (NGFF1-2)

These connectors allow you to install M.2 devices.

These connectors support type 2242 / 2260 / 2280 / 22110 devices on both PCIe x2 and

SATA interface.

The M.2 (NGFF) device is purchased separately.

17. Thermal sensor cable connector (3-pin TR1)

This connector allows you to connect a thermal sensor cable that is used for monitoring

temperature. Connect the thermal sensor cable to the connector and place its probe to

the device that you want to monitor.
