Chapter 1: Product Introduction
1-8

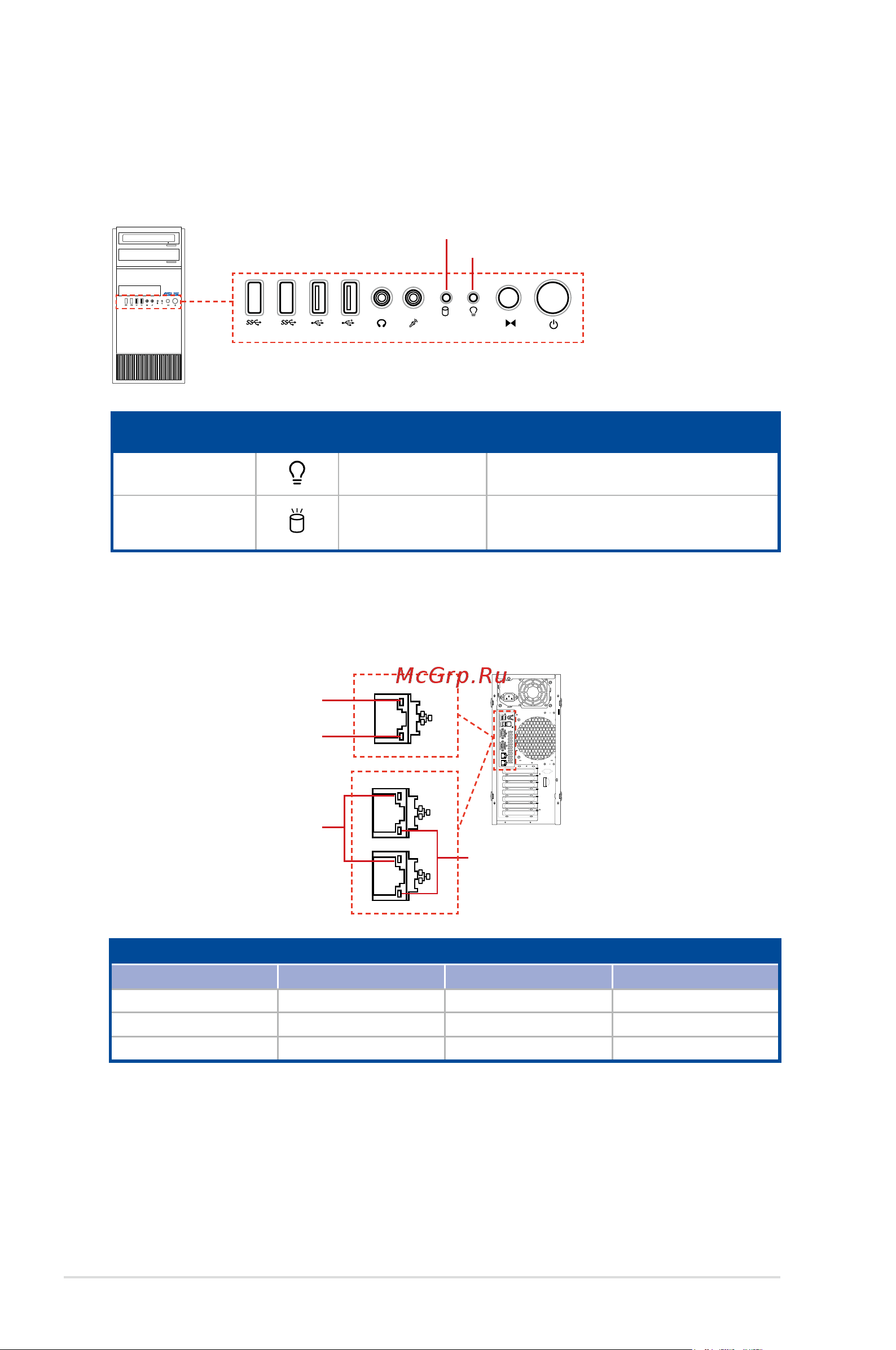

1.7 LED information
1.7.1 Front panel LEDs
LED Icon Display status Description
Power LED
ON System power ON
HDD Access LED
OFF
Blinking
No activity
Read/write data into the HDD
HDD Access LED
Power LED
1.7.2 Rear panel LEDs
SPEED LED
SPEED LED
ACT/LINK LED
ACT/LINK LED
ACT/LINK LED SPEED LED
Status Description Status Description
OFF No link OFF 10 Mbps connection
GREEN Linked ORANGE 100 Mbps connection
BLINKING Data activity GREEN 1 Gbps connection
