ASUS TS100-E9-PI4
4-43
4.10 Event Logs menu

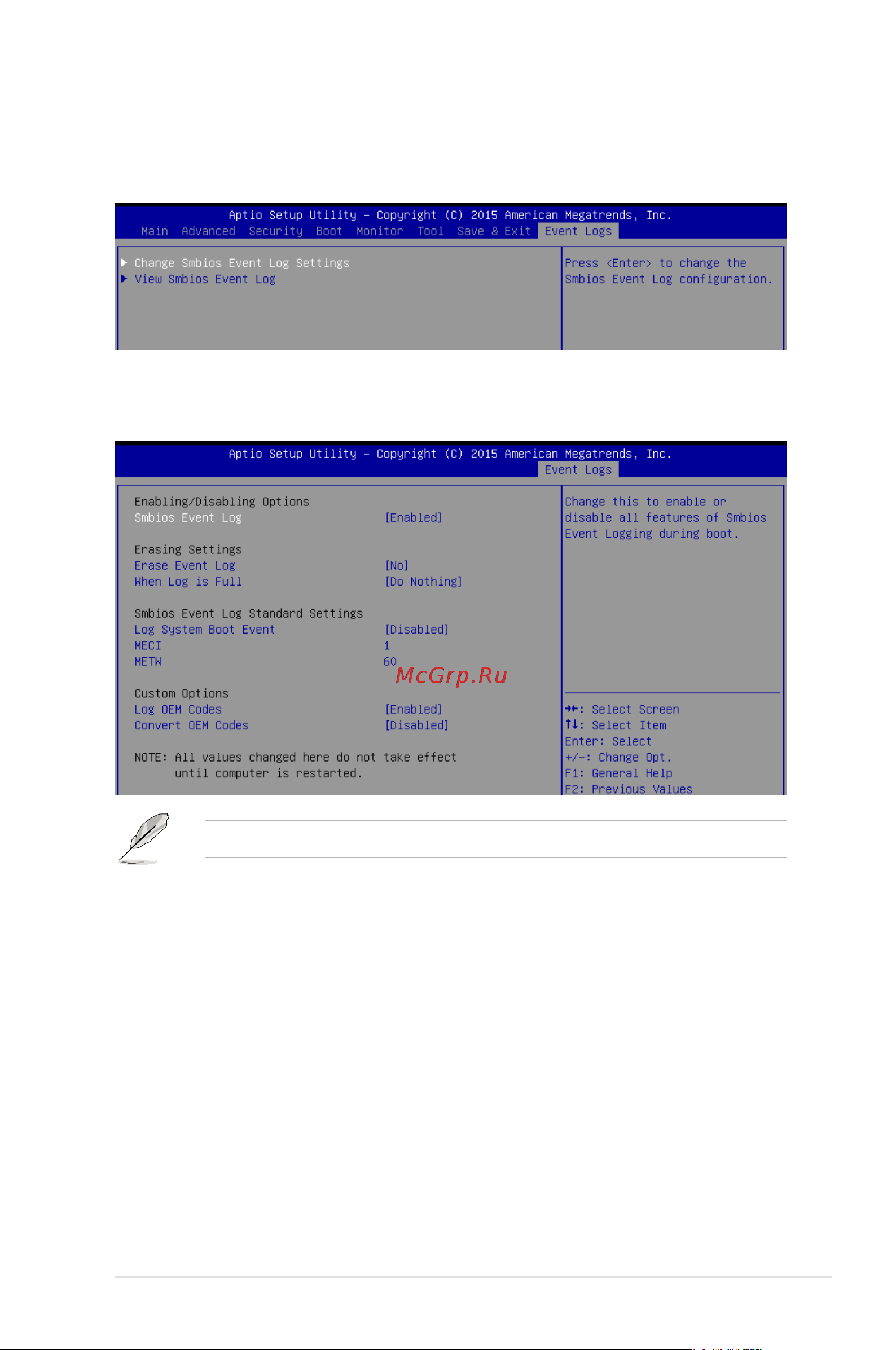

The Event Logs menu items allow you to change the event log settings and view the system
event logs.
4.10.1 Change Smbios Event Log Settings
Press<Enter>tochangetheSmbiosEventLogconguration.
Enabling/Disabling Options
Smbios Event Log [Enabled]
Change this to enable or disable all features of Smbios Event Logging during boot.
Congurationoptions:[Disabled][Enabled]
Erasing Settings
Erase Event Log [No]
Choose options for erasing Smbios Event Log. Erasing is done prior to any logging activation
during reset.
Congurationoptions:[No][Yes,Nextreset][Yes,Everyreset]
Allvalueschangedheredonottakeeffectuntilcomputerisrestarted.
