ASUS TS100-E9-PI4
4-15

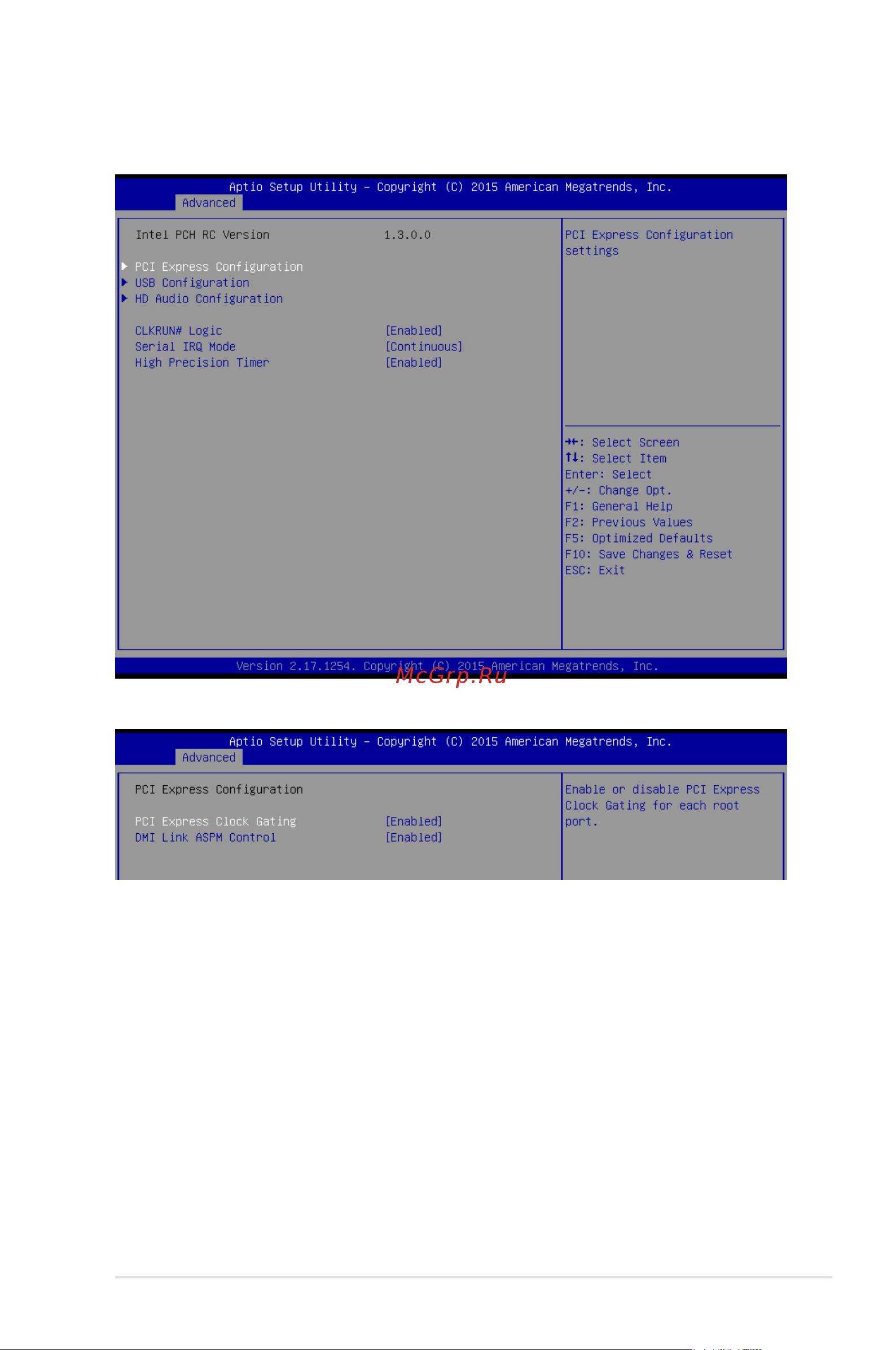

PCH-IO Configuration
Allows you to set PCH-IO parameters.
PCI Express Configuration
PCI Express Clock Gating [Enabled]
AllowsyoutoenableordisablePCIExpressClockGatingforeachrootport.
Congurationoptions:[Disabled][Enabled]
DMI Link ASPM Control [Enabled]
Allows you to enable or disable the control of Active State Power Management on SA
sideoftheDMIlink.
Congurationoptions:[Disabled][Enabled]
