Asus TS100-E9-PI4 [36/138] Expansion cards

Chapter 2: Hardware Information

2-18

2.7 Expansion cards

Thesystemhasexpansionslotsontherearpanelthatallowsyoutoinstallexpansioncards

or additional components.

Ensuretounplugthepowercordbeforeinstallingorremovingexpansioncards.Failureto

do so may cause severe damage to the motherboard and other system components!

Readthedocumentationoftheexpansioncardandmakethenecessaryhardwaresettings

for the card before installing them.

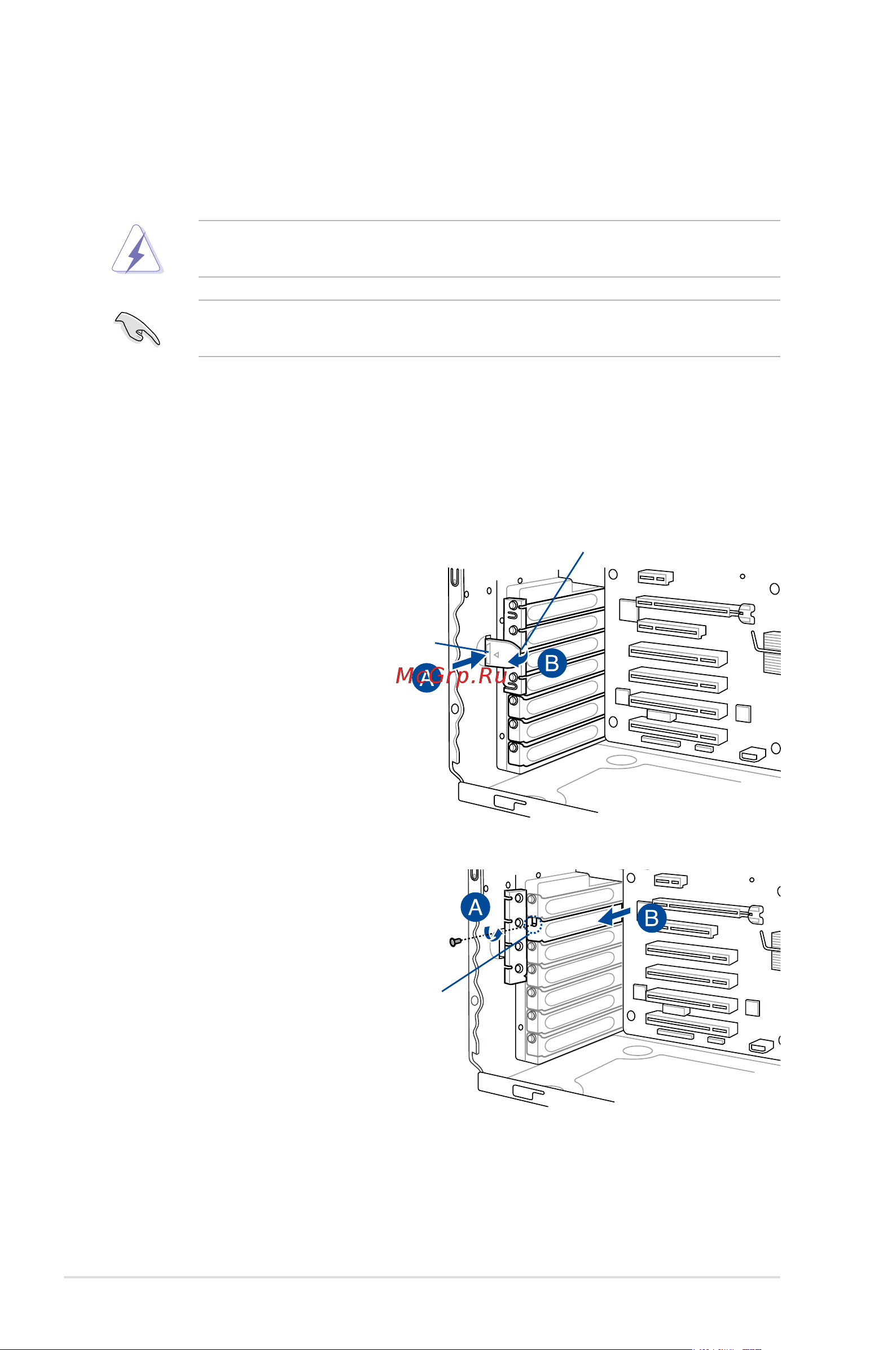

2.7.1 Installing an expansion card

Toinstallanexpansioncard:

1. Laythesystemonitssideonaat,stablesurface.

2. PressthePCI-Elatch(A),holditbyitsedge thenliftittowardstherear(B).

3. Removethescrew(A)thatsecures

themetalbrackettothechassisthen

removethemetalbracket(B).

metal bracket

PCI-E latch

edge of the PCI-E latch

screw
