2-17
ASUS TS100-E9-PI4

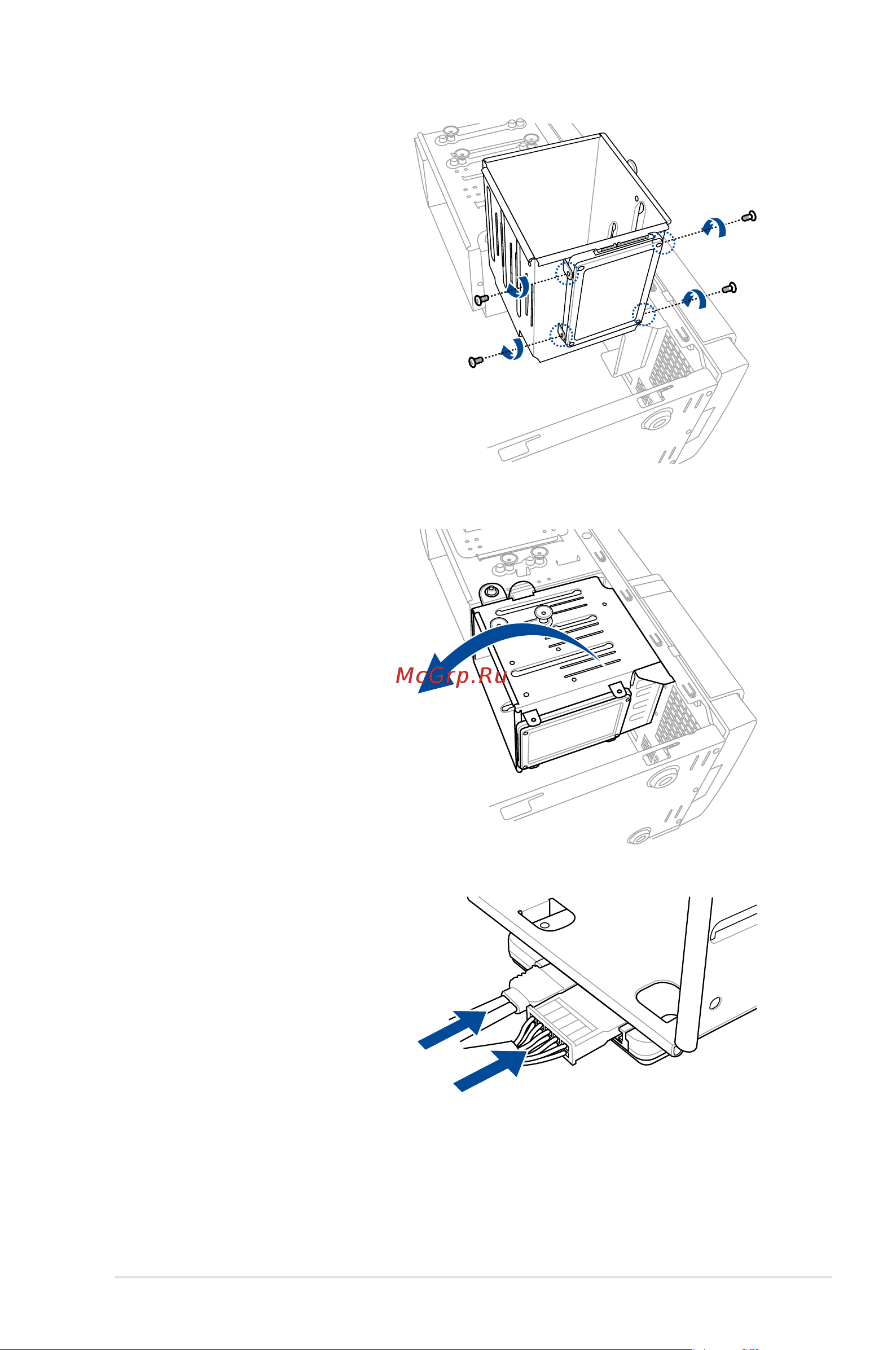

6. Secure the 2.5-inch HDD/SSD to
the HDD cage using the bundled
set of screws.
7. Swing the HDD cage inwards
untilitclicksbackintoplace.
8. Connect a SATA cable and a
SATA power cable to the 2.5-inch
HDD/SSD.
