ASUS TS100-E9-PI4
4-41

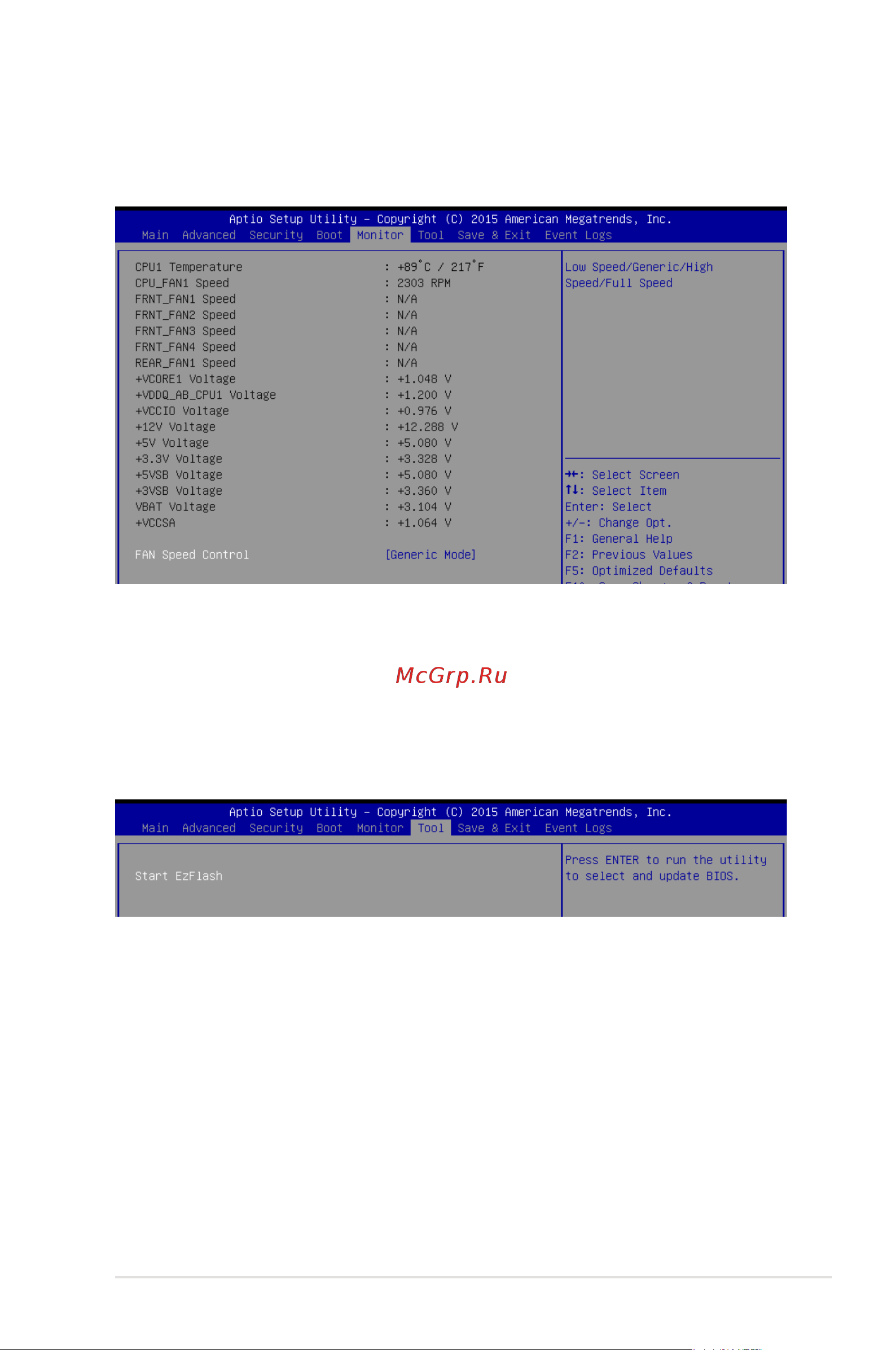

4.7 Monitor Menu
The Monitor menu displays the system temperature/power status, and allows you to change
the fan settings.
Fan Speed Control [Generic Mode]
Allows you to set the fan speed.
Congurationoptions:[GenericMode][HighSpeedMode][FullSpeedMode]
4.8 Tool menu
TheToolmenuitemsallowyoutocongureoptionsforspecialfunctions.Selectanitemthen
press <Enter> to display the submenu.
ASUS EZ Flash
Allows you to run ASUS EZ Flash BIOS ROM Utility when you press <Enter>. Refer to the
ASUS EZ Flash Utility section for details.
