Asus TS100-E9-PI4 [30/138] 5 5 inch drives

Chapter 2: Hardware Information

2-12

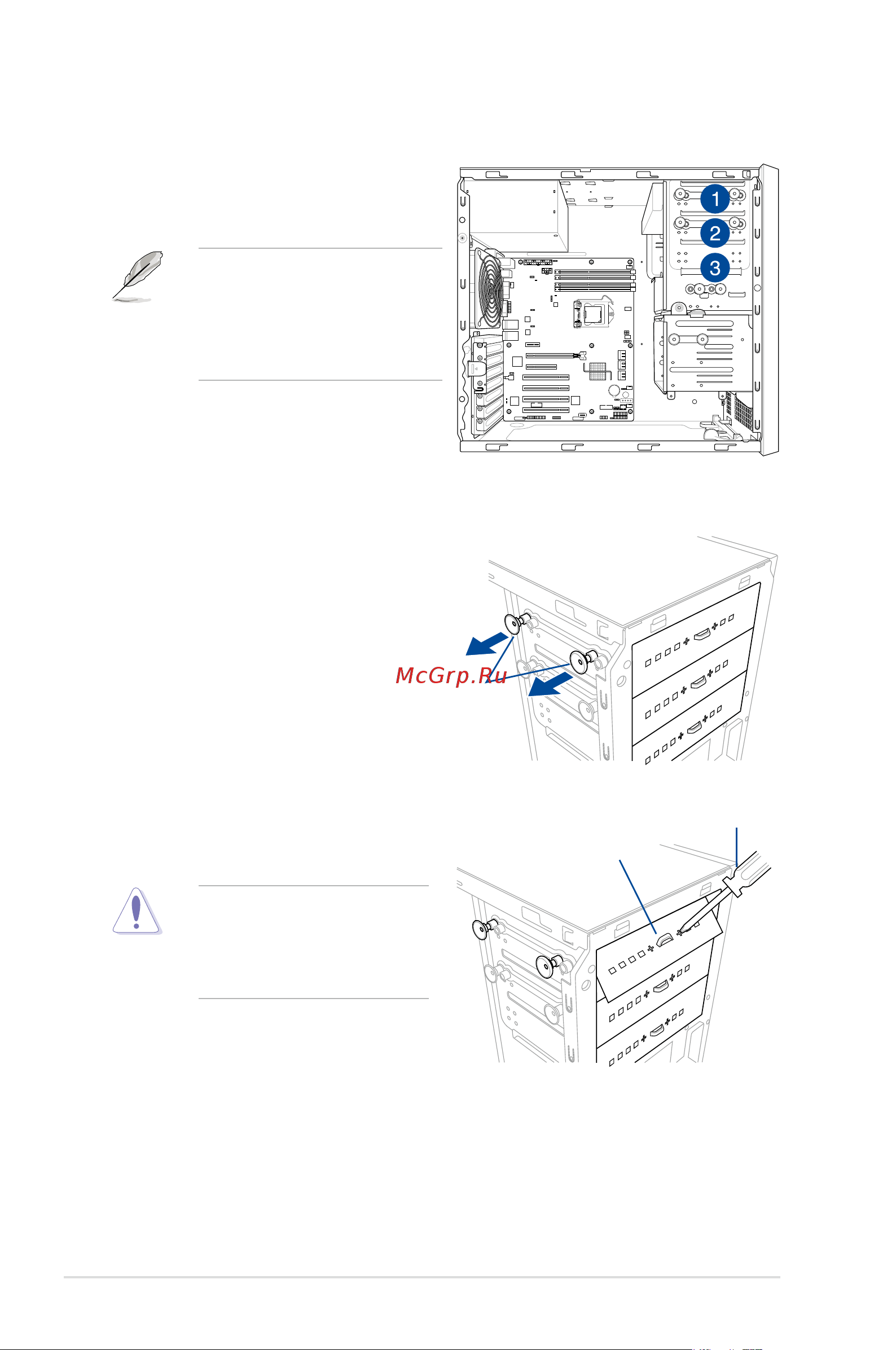

2.5 5.25-inch drives

Installing a 5.25-inch drive

To install a 5.25-inch drive:

1. Remove the front panel cover. Refer to

the

Removing the front panel cover

section for more information.

2. Pullthebaylocksoutward.

3. Remove the metal cover of the bay

you intend to use.

Takeextracarewhenremovingthe

metal cover. Use tools such as a

screw driver to bend and remove

the metal cover to avoid physical

injury.

This system comes with three 5.25-inch drive

bays located on the upper front section of the

chassis.

If your system came with an optical

drive, the optical drive occupies the

topmostbay(1).Thelowerbays(2

and3)areavailableforadditional

5.25-inchoptical,zip,oroppydisk

drives.

bay locks

screw driver

metal cover
