Asus TS100-E9-PI4 [52/138] Atx power connectors 24 pin eatxpwr1 8 pin eatx12v1

Chapter 3: Motherboard Information

3-12

• DONOTforgettoconnectthe24-pinandthe8-pinpowerplugs;otherwise,thesystem

willnotbootup.

• Useofapowersupplyunit(PSU)withahigherpoweroutputisrecommendedwhen

conguringasystemwithmorepower-consumingdevices.Thesystemmaybecome

unstableormaynotbootupifthepowerisinadequate.

• ThismotherboardsupportsATX2.0PSUorlaterversion.

• EnsurethatyourPSUcanprovideatleasttheminimumpowerrequiredbyyour

system.

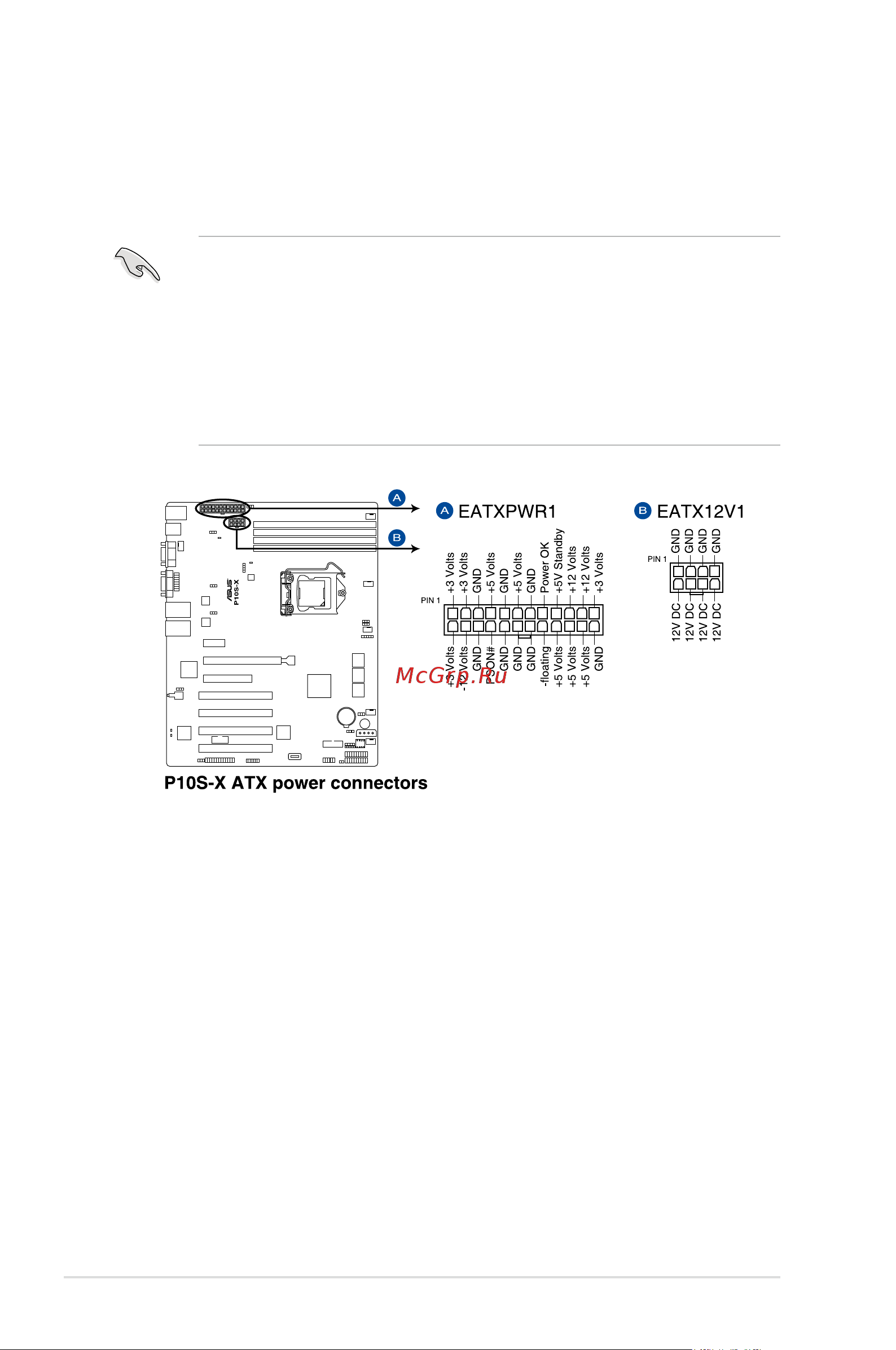

11. ATX power connectors (24-pin EATXPWR1, 8-pin EATX12V1)

TheseconnectorsarefortheATXpowersupplyplugs.Thepowersupplyplugsare

designedtottheseconnectorsinonlyoneorientation.Findtheproperorientationand

pushdownrmlyuntiltheconnectorscompletelyt.
