ASUS TS100-E9-PI4

3-13

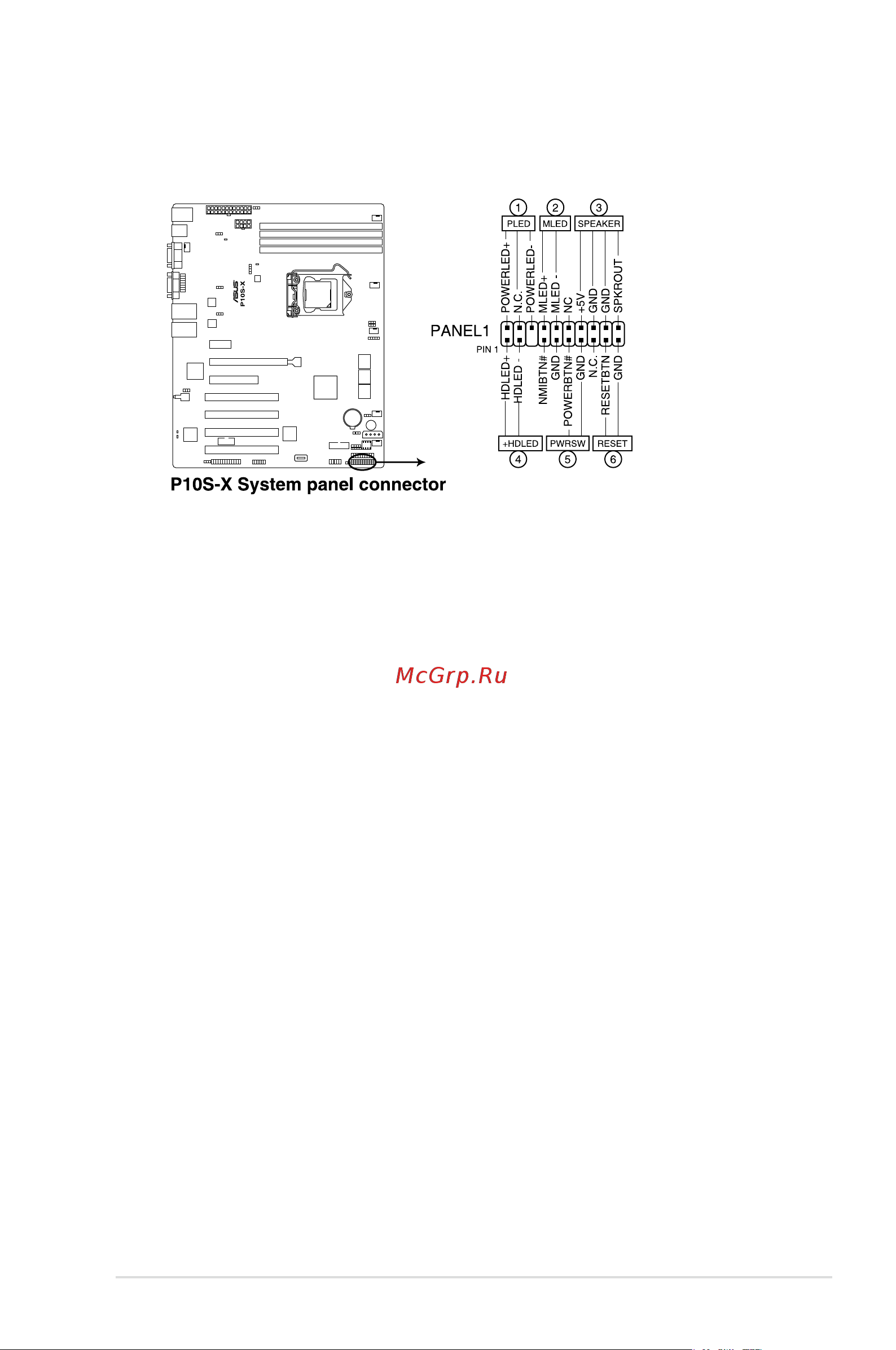

12. System panel connector (20-1 pin PANEL1)

Thisconnectorsupportsseveralchassis-mountedfunctions.

1. System power LED (3-pin PLED)

This3-pinconnectorisforthesystempowerLED.Connectthechassispower

LEDcabletothisconnector.ThesystempowerLEDlightsupwhenyouturnon

thesystempower,andblinkswhenthesystemisinsleepmode.

2. Message LED (2-pin MLED)

This2-pinconnectorisforthemessageLEDcablethatconnectstothefront

messageLED.ThemessageLEDiscontrolledbyHardwaremonitortoindicate

anabnormaleventoccurrence.

3. System warning speaker (4-pin SPEAKER)

This4-pinconnectorisforthechassis-mountedsystemwarningspeaker.The

speakerallowsyoutohearsystembeepsandwarnings.

4. Hard disk drive activity LED (2-pin +HDLED)

This2-pinconnectorisfortheHDDActivityLED.ConnecttheHDDActivityLED

cabletothisconnector.TheIDELEDlightsuporasheswhendataisreadfrom

orwrittentotheHDD.

5. Power button/soft-off button (2-pin PWRSW)

Thisconnectorisforthesystempowerbutton.Pressingthepowerbuttonturns

the system on or puts the system in sleep or soft-off mode depending on the

BIOSsettings.Pressingthepowerswitchformorethanfoursecondswhilethe

system is ON turns the system OFF.

6. Reset button (2-pin RESET)

This 2-pin connector is for the chassis-mounted reset button for system reboot

withoutturningoffthesystempower.
