2-19

ASUS TS100-E9-PI4

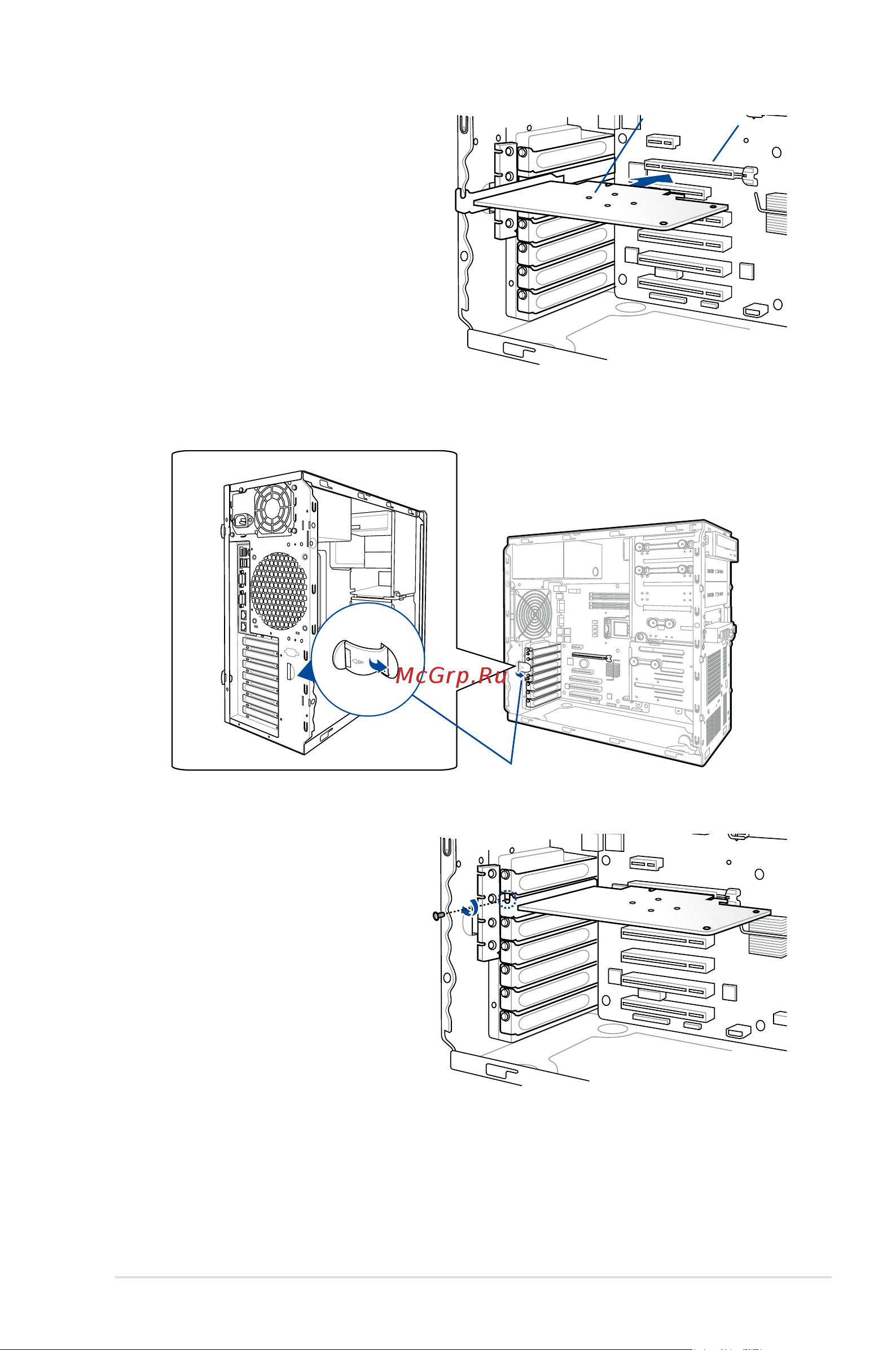

4. Alignandinserttheexpansioncardinto

thePCI-Eslot.

5. LiftthePCI-Elatchinwardsuntilitclicksintoplacesecuringtheexpansioncardtothe

chassis.

6. (Optional)Replacethescrewofthe

metalbracket.

PCI-E slot

expansion card

PCI-E latch
