Instruction SiBE04-609
96 System Configuration

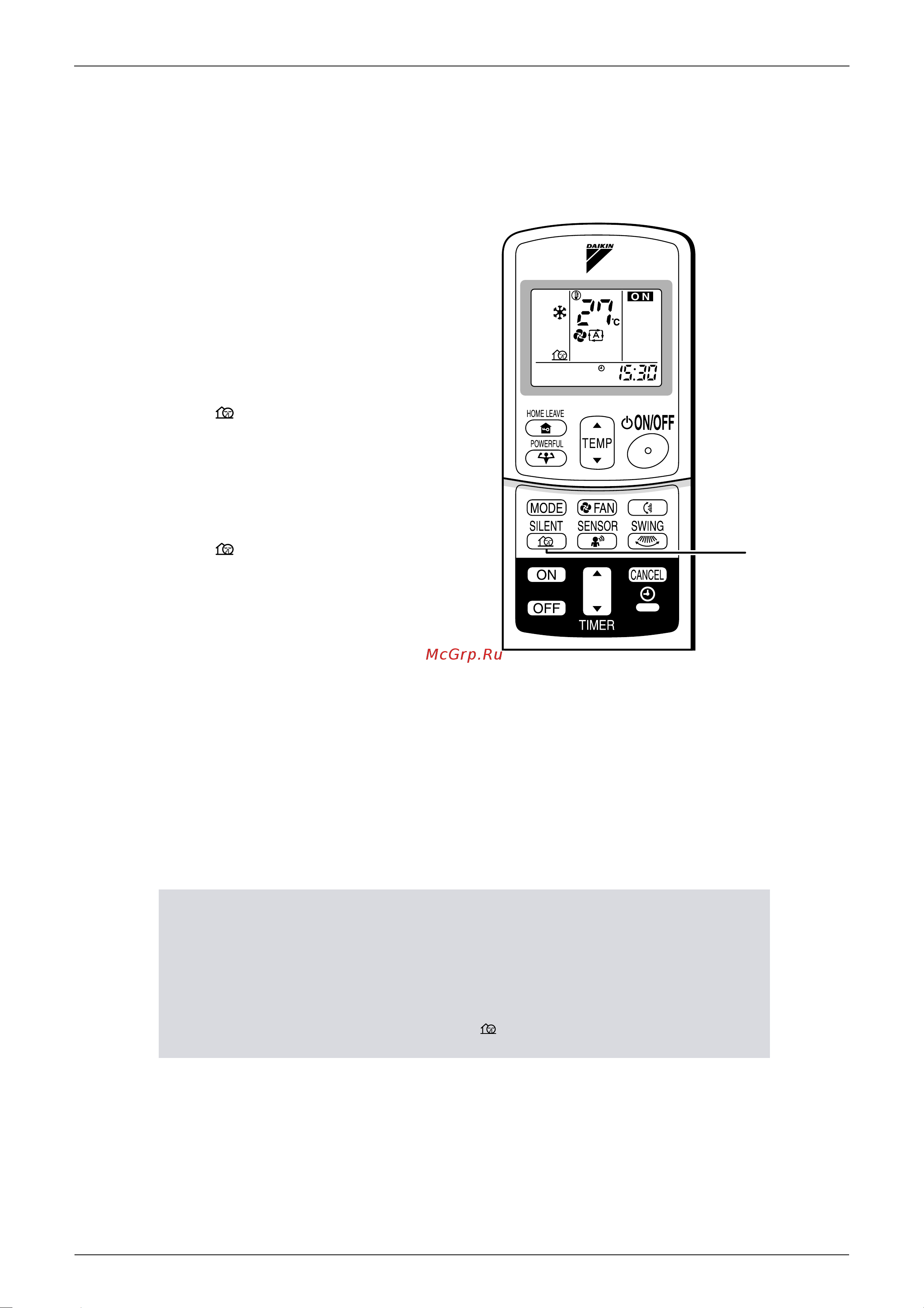

2.3.6 OUTDOOR UNIT SILENT Operation
15
OUTDOOR UNIT SILENT Operation
OUTDOOR UNIT SILENT operation lowers the noise
level of the outdoor unit by changing the frequency and
fan speed on the outdoor unit. This function is
convenient during night.
To start OUTDOOR UNIT
SILENT operation
1. Press “SILENT button”.
• “ ” is displayed on the LCD.
To cancel OUTDOOR UNIT
SILENT operation
2. Press “SILENT button” again.
• “ ” disappears from the LCD.
NOTE
Note on OUTDOOR UNIT SILENT operation
•
This function is available in COOL, HEAT, and AUTO modes.
(This is not available in FAN and DRY mode.)
• POWERFUL operation and OUTDOOR UNIT SILENT operation cannot be used at the
same time.
Priority is given to the function of whichever button is pressed last.
• If operation is stopped using the remote controller or the main unit ON/OFF switch when
using OUTDOOR UNIT SILENT operation, “ ”will remain on the remote controller
display.
1, 2
