SiBE04-609 Outdoor Unit
Removal Procedure 205
2. Outdoor Unit
2.1 RK(X)S 50/60/71 E, ARXS 50 E, R(Y)N 50/60 E
2.1.1 Removal of the Panels and Plates
Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Step
Procedure Points

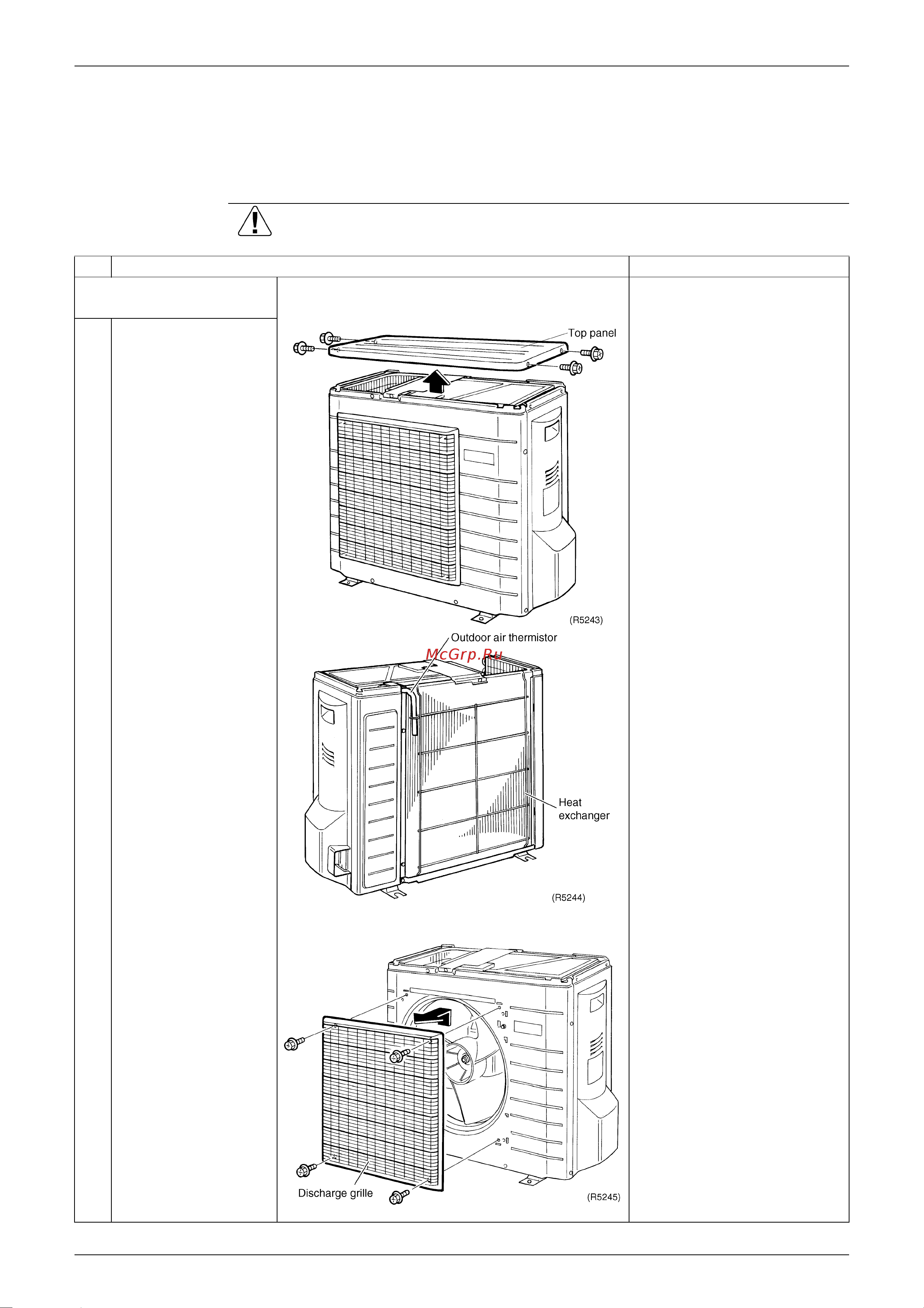

1. Remove the panels and
plates.
Take care not to cut your
finger by the fins of the heat
exchanger.
1
Loosen the 4 screws
and lift the top panel.
2
Loosen the 4 screws
and remove the
discharge grille.
