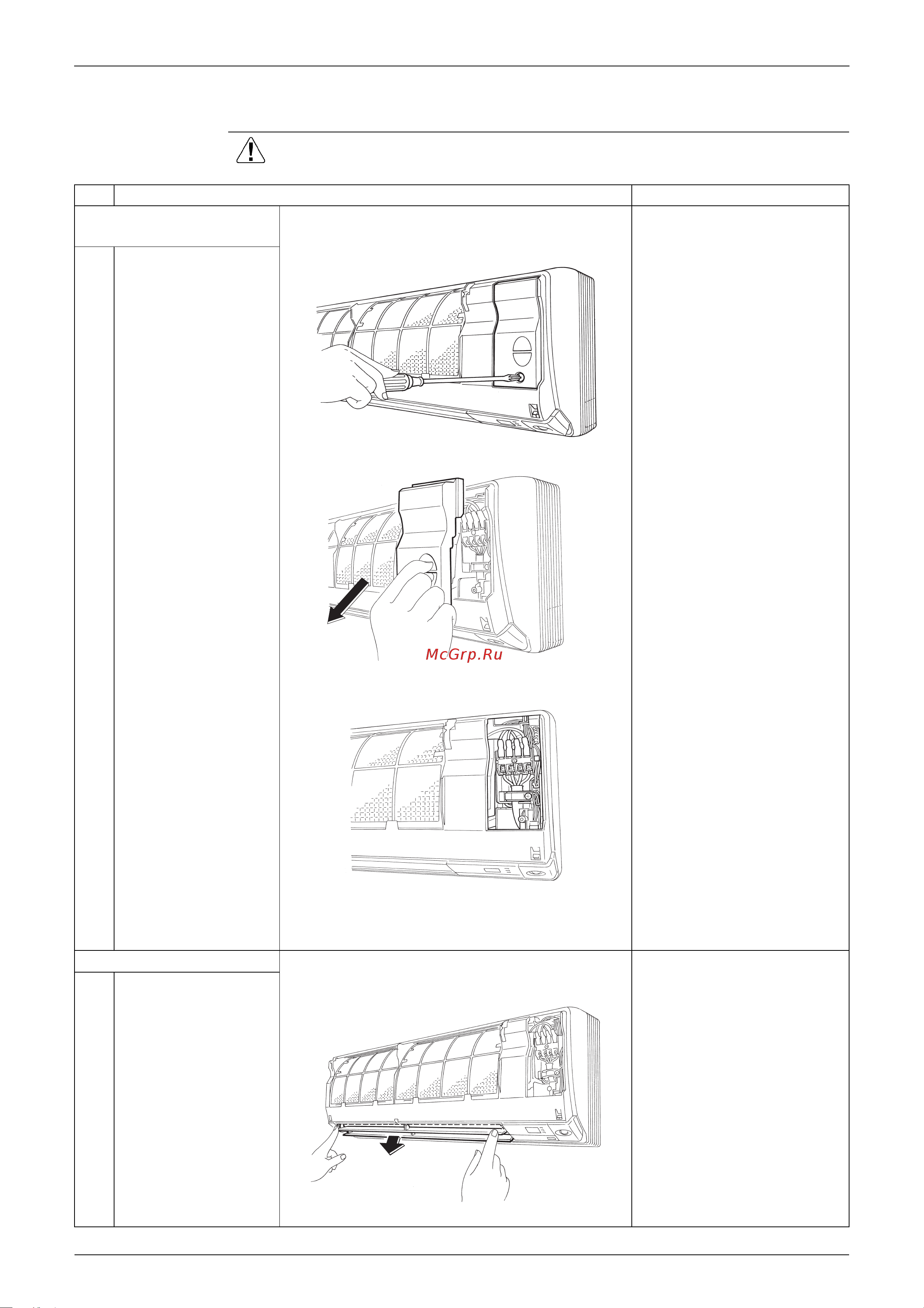

Indoor Unit SiBE04-609
160 Removal Procedure
1.1.3 Removal of Front Grille
Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Step Procedure Points
1. Removing the service
cover
1
Remove the screw of
the service cover.
Preparation
Remove the front panel
according to the “Removal
of Front Panel.”
2
3
Pull out the service
cover diagonally down
in the direction of the
arrow.
The figure shows the
appearance of the
inside.
There are no switches to be
set in the field.
2. Removing the front grille
1
Open the horizontal
blades.
(R4317)
(R4318)
(R4319)
(R4320)
