SiBE04-609 Outdoor Unit
Removal Procedure 209

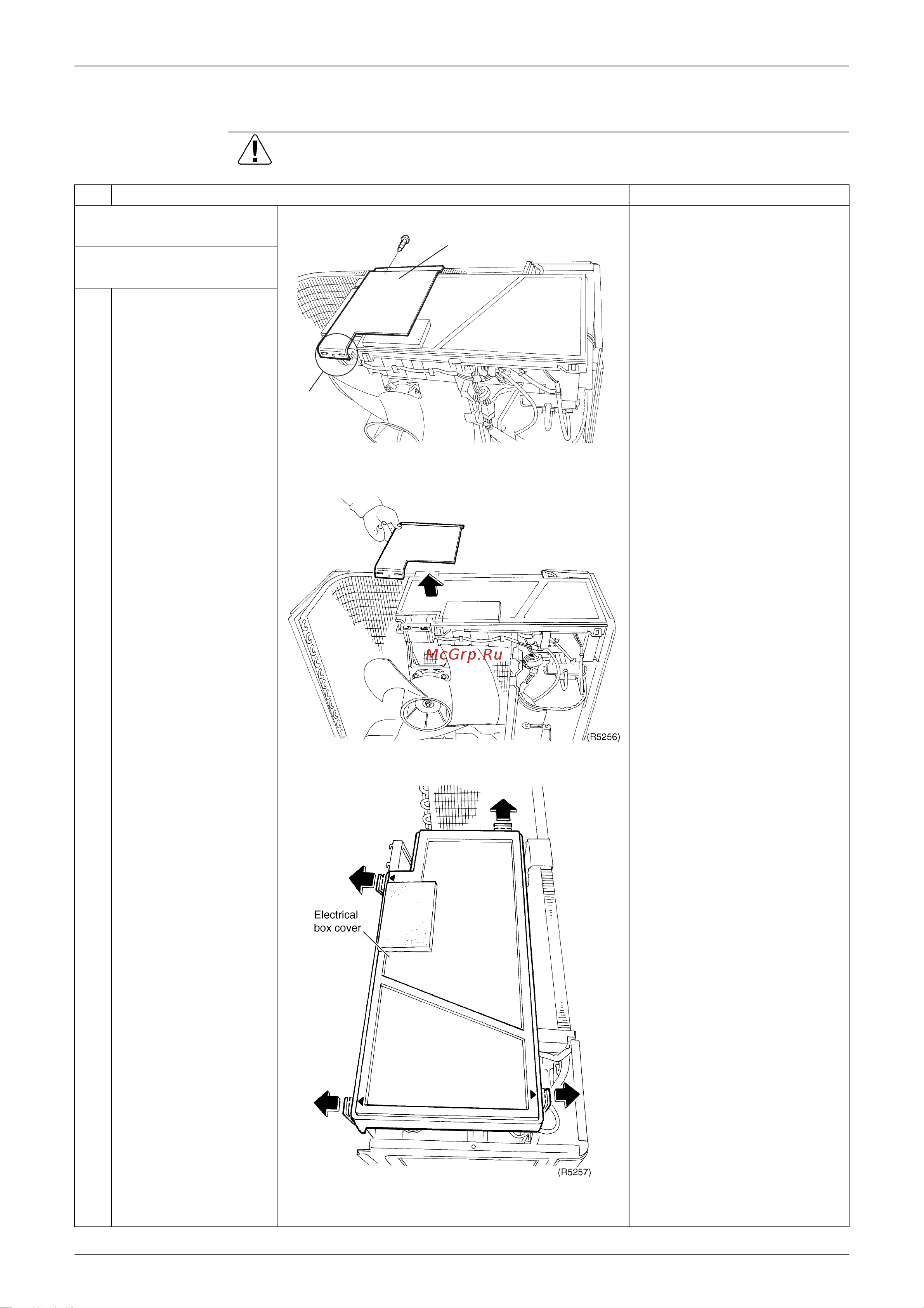

2.1.2 Removal of the Fan Motor / Propeller Fan
Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Step
Procedure Points
Remove the top panel
and the front panel.
1. Remove the electrical box
cover.
This procedure is not
necessary to remove the
propeller fan only.
1
Loosen the screw on
the back of the shelter.
2
Undo the 2 hooks and
remove it.
The hooks have been
released since the front
panel was removed.
3
Release the 4 hooks of
the electrical box cover
and remove it.
(R5255)
Shelter
Hooks
