![Daikin RKS60E2V1B [189/258] Remove the fan motor](/img/pdf.png)
Daikin RKS60E2V1B [189/258] Remove the fan motor
![Daikin FTKS71EV1B [189/258] Remove the fan motor](/views2/1776858/page189/bgbd.png)

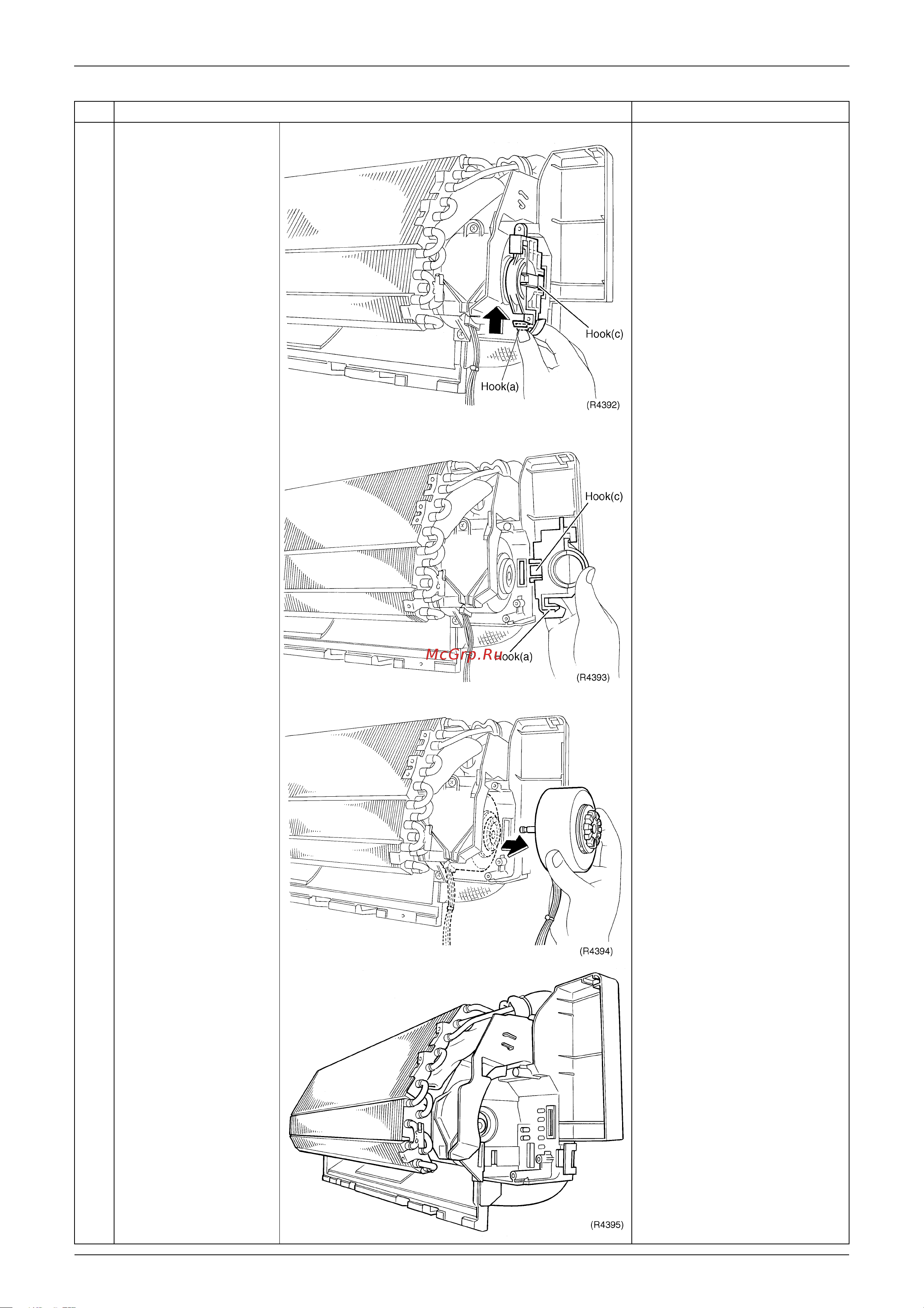

Indoor Unit SiBE04-609
180 Removal Procedure
4
Unfasten the hook (a)
of the fan motor fixing
plate with your thumb.
5
Unfasten the hook (c).
6
Remove the fan motor.
Step Procedure Points
