![Daikin RKS60E2V1B [173/258] Removing the horizontal blade small](/img/pdf.png)
Daikin RKS60E2V1B [173/258] Removing the horizontal blade small
![Daikin FTXS50EV1B [173/258] Removing the horizontal blade small](/views2/1776858/page173/bgad.png)
Indoor Unit SiBE04-609
164 Removal Procedure
Step Procedure Points

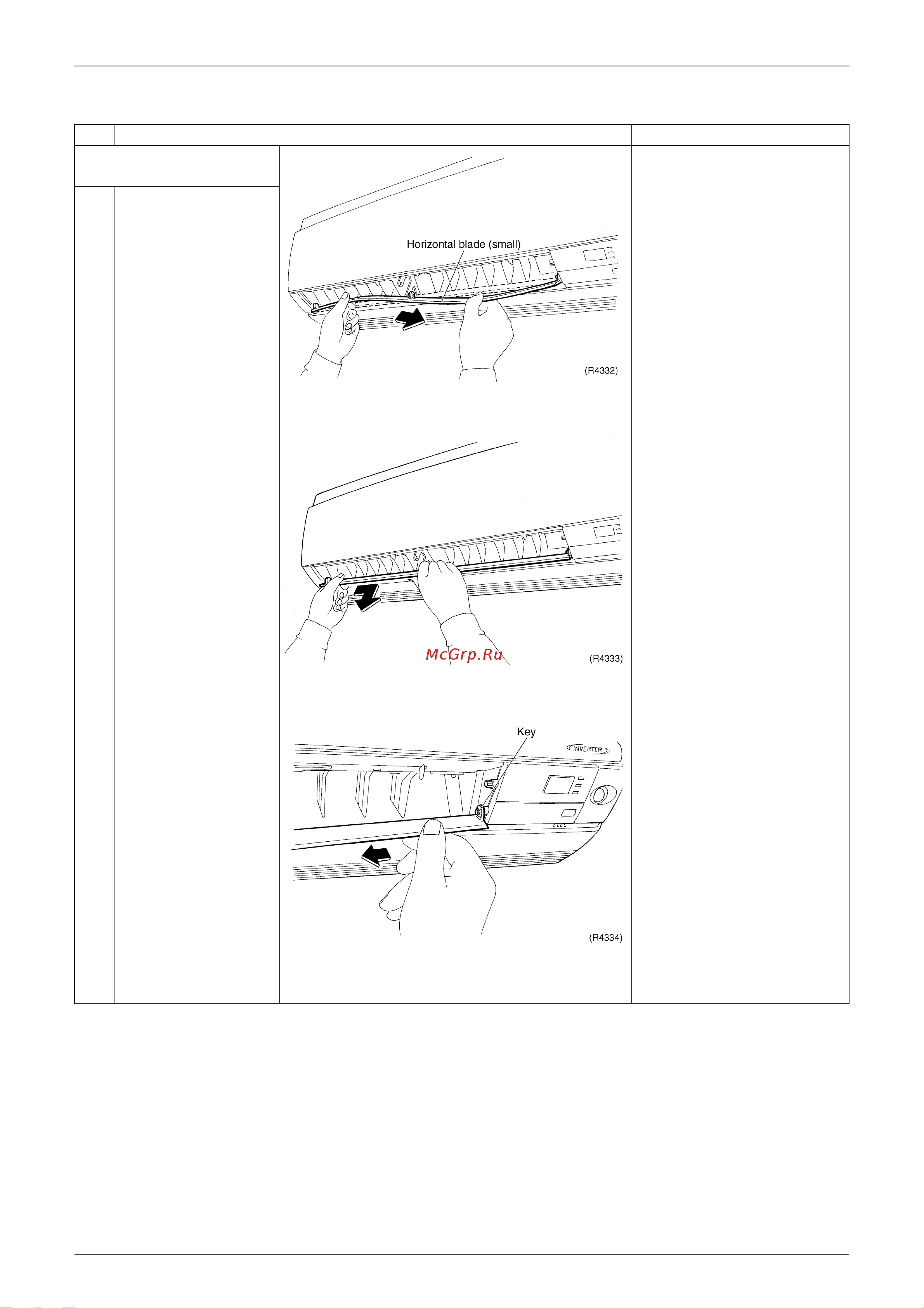

2. Removing the horizontal
blade (small)
1
2
3
Remove the horizontal
blade (small) while
bending the fixed part
at the center slightly.
Unfasten the left side.
Unfasten the key type
fixing shaft at the right
side.
