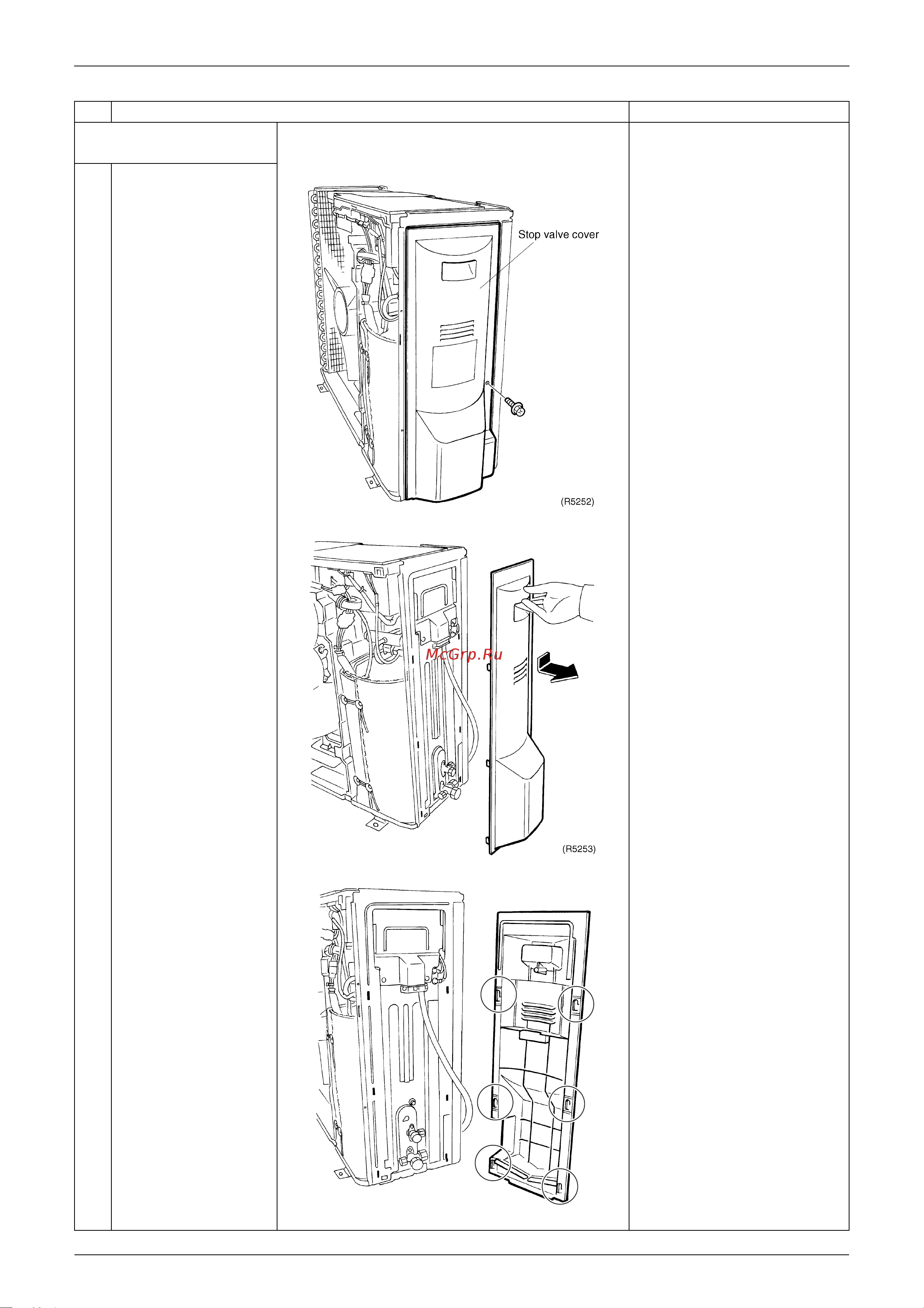

Outdoor Unit SiBE04-609
208 Removal Procedure
2. Remove the stop valve
cover.
1
Loosen the screw of the
stop valve cover.
2
Pull down the stop
valve cover to undo the
hooks and remove it.
The stop valve cover has 6
hooks.
Step
Procedure Points
(R5254)
