Indoor Unit SiBE04-705
180 Removal Procedure

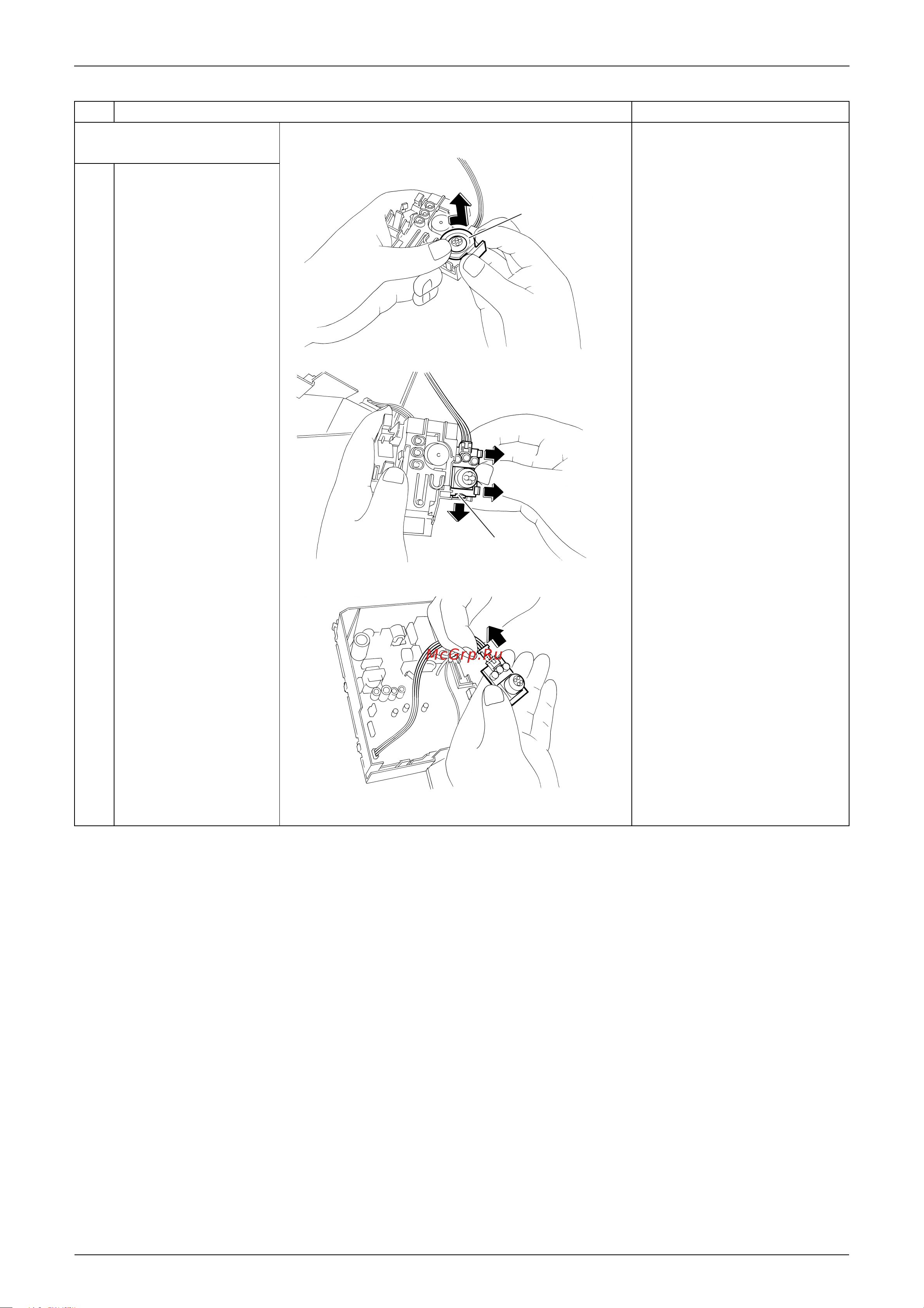

6. Removing the
INTELLIGENT EYE PCB
1
2
3
Remove the
INTELLIGENT EYE
fixing plate by twisting it
clockwise.
Remove the
INTELLIGENT EYE
PCB by unfastening the
hook.
Disconnect the
connector from the
INTELLIGENT EYE
PCB.
Step Procedure Points
INTELLIGENT EYE
fixing plate
Hook
(R4363)
(R4364)
(R4365)
