SiBE04-705 Indoor Unit
Removal Procedure 181
Step Procedure Points

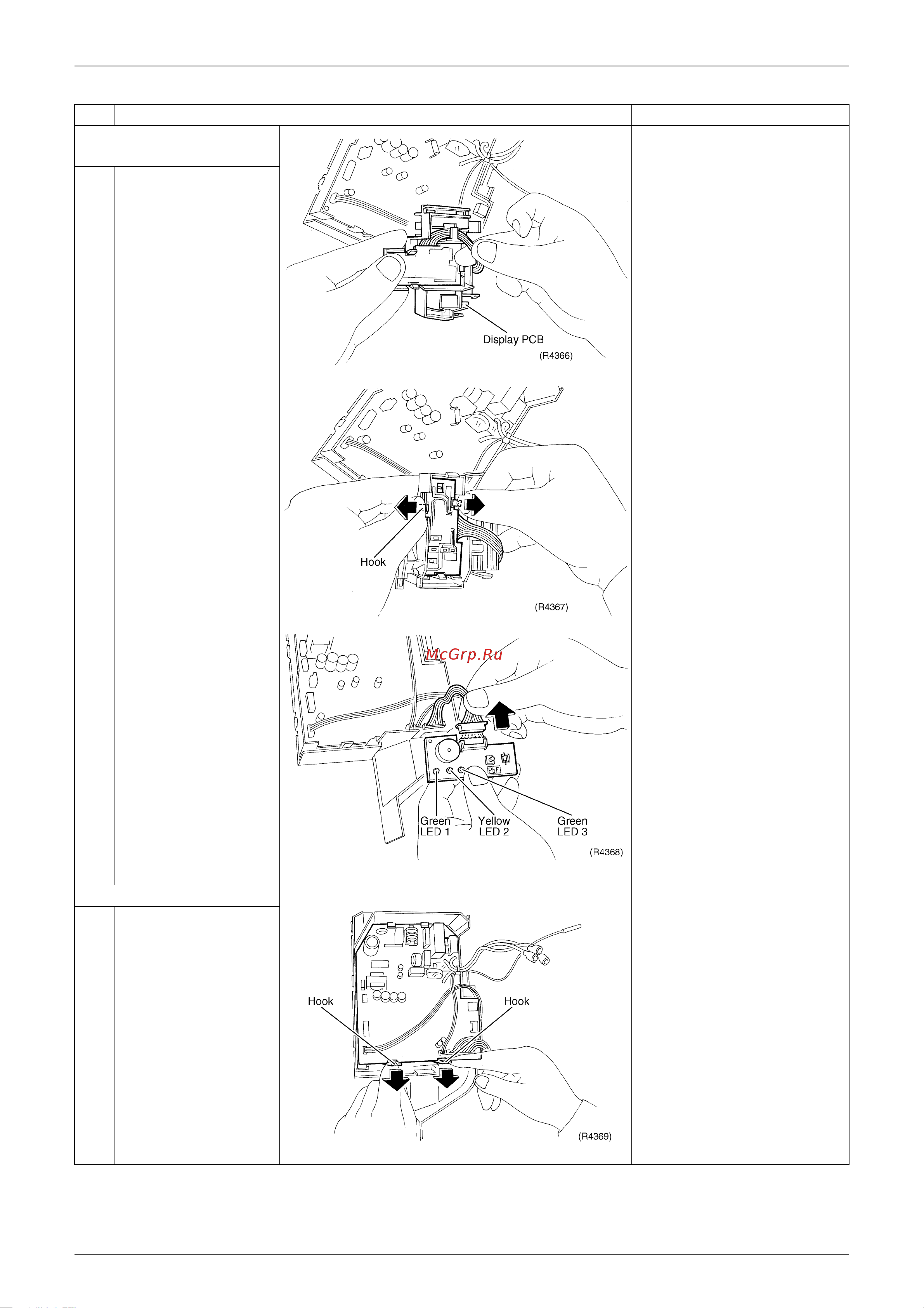

7. Removing the display
PCB
1
The figure shows the
connection of wire
harness for the display
PCB.
2
Remove the display
PCB by unfastening the
2 hooks.
3
Disconnect the
connector from the
display PCB.
8. Removing the control PCB
1
Dismount the control
PCB by removing the 2
hooks.
