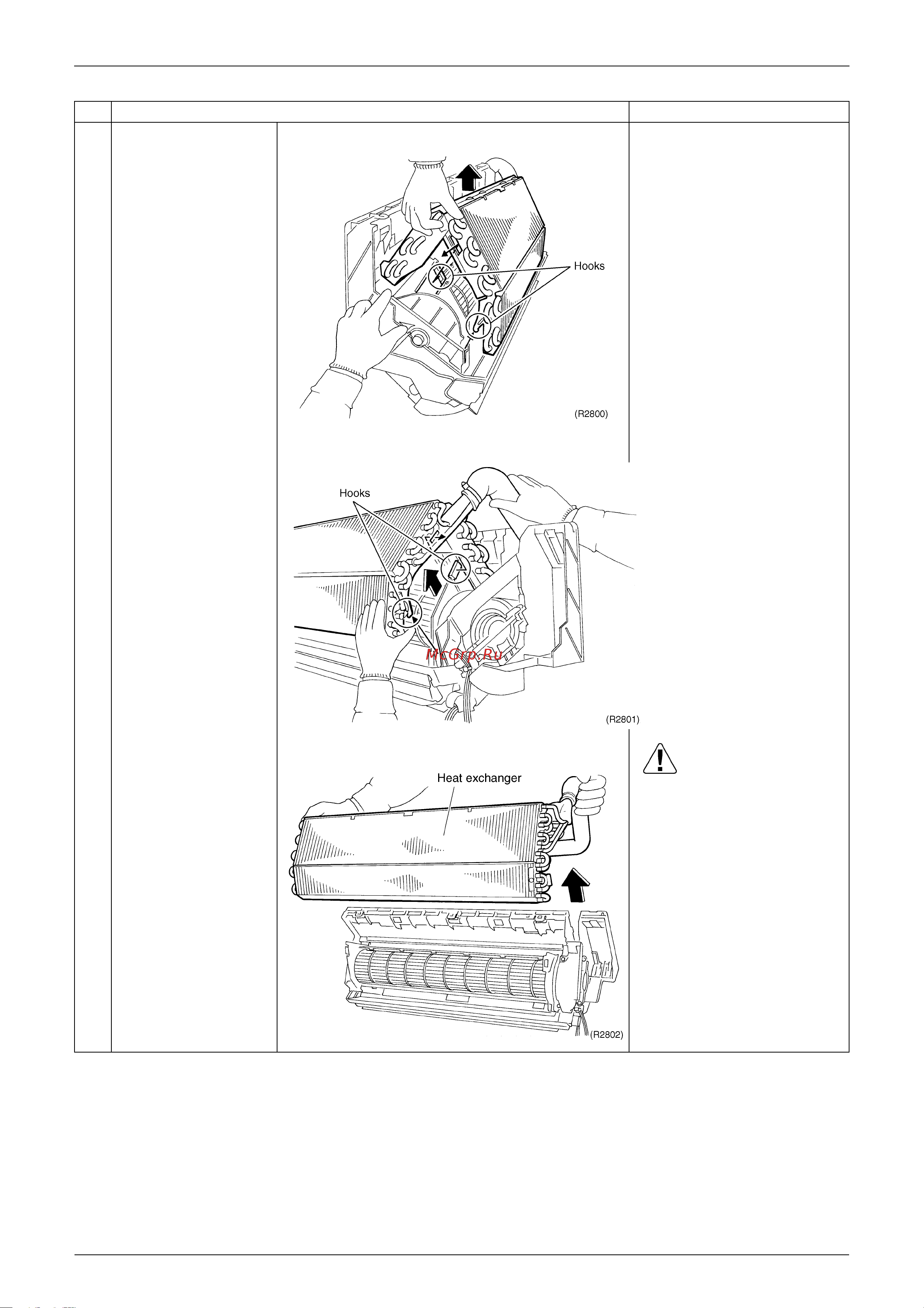

Indoor Unit SiBE04-705
210 Removal Procedure
2
Release the hooks on
the left side.
3
Push the fixing hooks
on the right side and
release.
4
Pull the heat exchanger
to the front side and
undo the hooks
completely, and then lift
it.
Caution
When removing or
reinstalling heat exchanger,
be sure to wear protective
gloves or wrap the heat
exchanger with cloths. (Fins
can cut fingers.)
