For RXD50·60·71J SiBE04-101
140 Removal Procedure

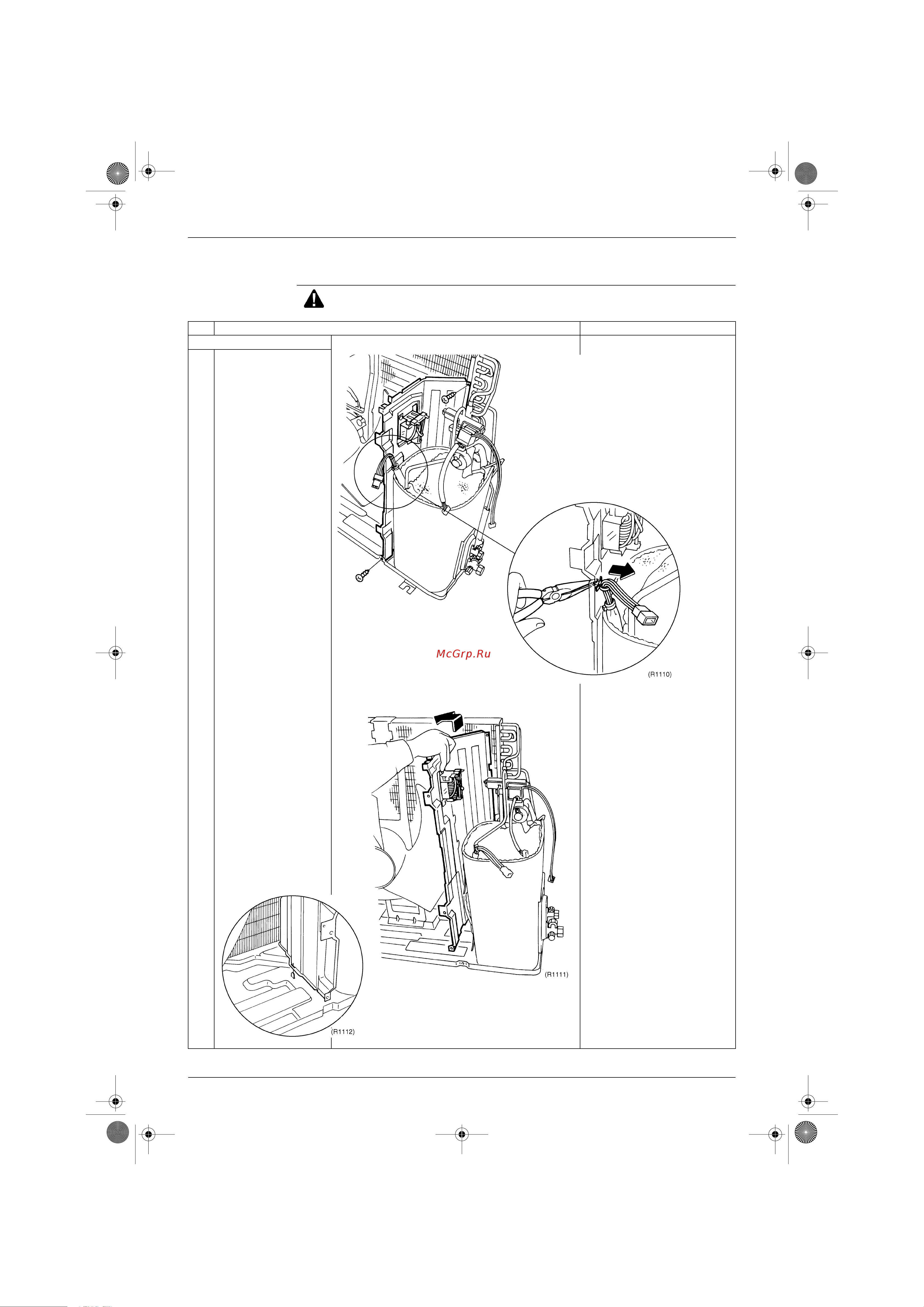

1.3 Removal of Partition Board and Reactor
Procedure Warning Be sure to turn off all power supplies before disassembling work.
Step Procedure Points
1. Removing the partition board
1
Disconnect the
compressor leads from the
fixture (wire clip).
2
Remove the two screws
from the partition board.
3
Pull up the partition board
to detach.
4
When remounting the
partition board, engage
the hook in position on the
bottom frame.
SiBE04-101.book Page 140 Monday, October 15, 2001 3:08 PM
