SiBE04-101 For RXD50·60·71J
Removal Procedure 145

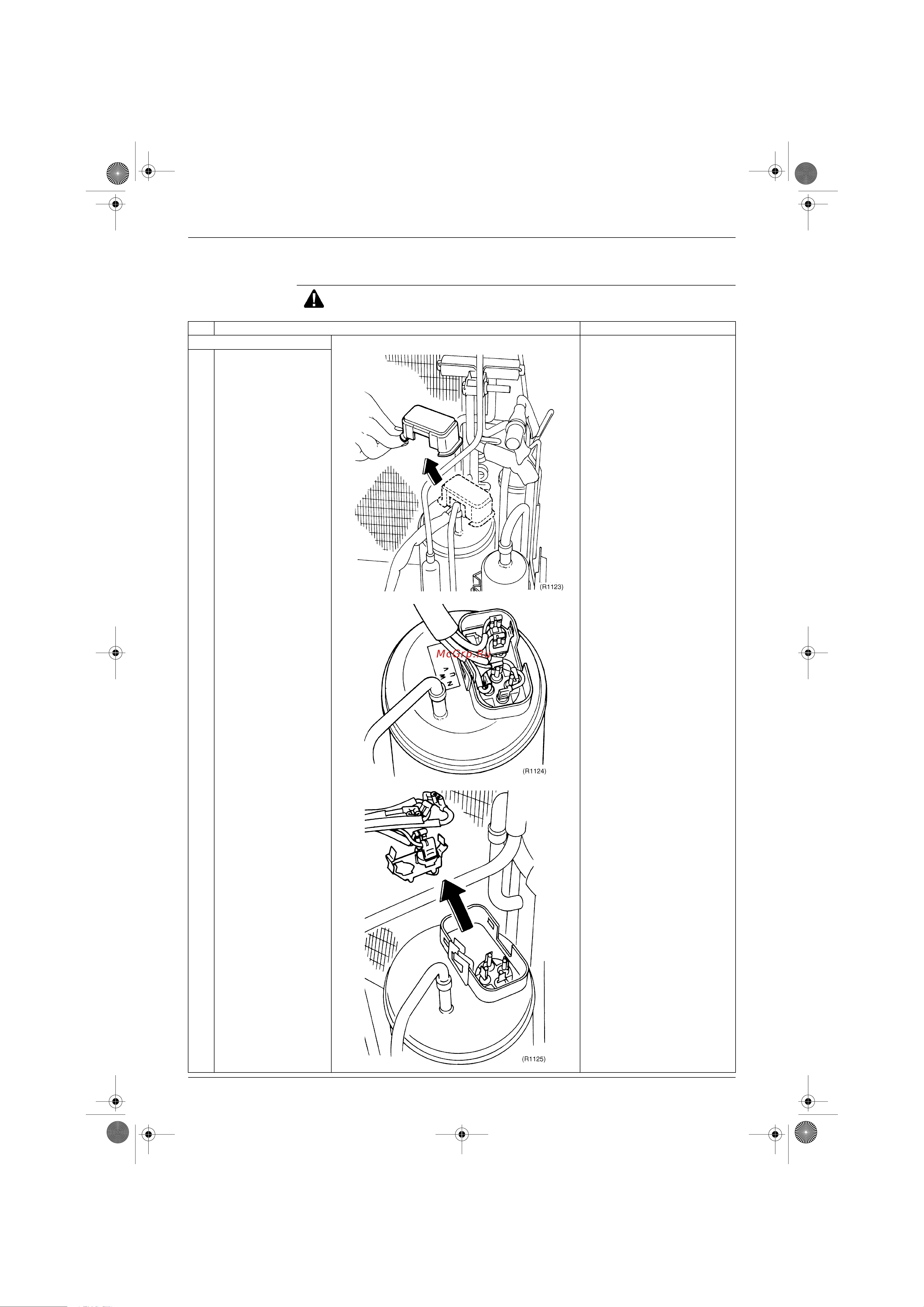

1.7 Removal of Compressor
Procedure Warning Be sure to turn off all power supplies before disassembling work.
Step Procedure Points
1. Removing the peripherals
Be careful to avoid burning the
compressor terminals or the
nameplate.
1
To avoid burning damage
by gas welding rod, detach
the terminal cover,
disconnect the
compressor leads, and
dismount the partition
board.
As precaution, keep the
contents in memorandum.
