![Daikin FTXD50JV1B [150/164] Removal of sound insulation for compressor](/img/pdf.png)
Daikin FTXD50JV1B [150/164] Removal of sound insulation for compressor
![Daikin FTXD50JV1B [150/164] Removal of sound insulation for compressor](/views2/1782015/page150/bg96.png)
For RXD50·60·71J SiBE04-101
142 Removal Procedure

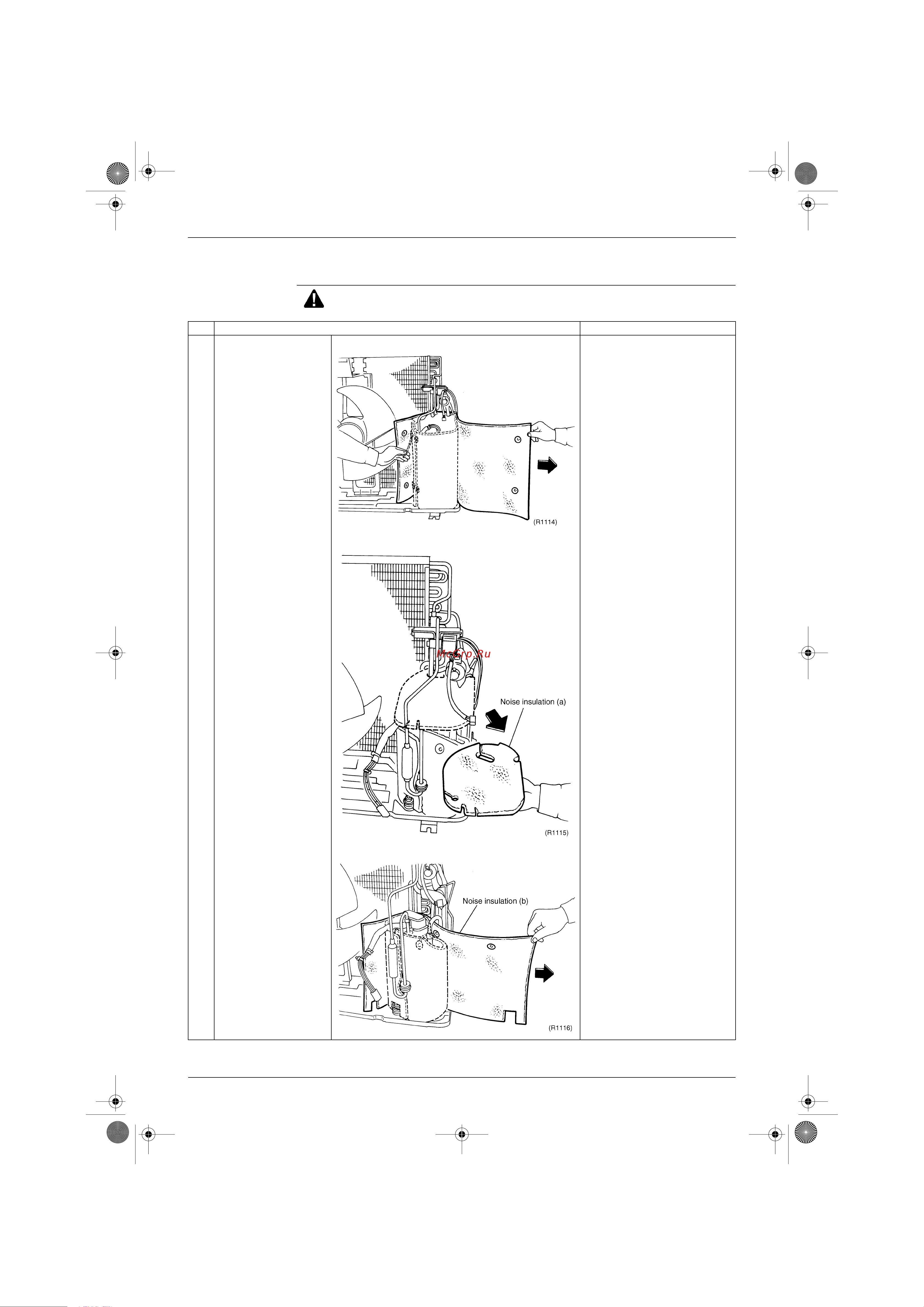

1.4 Removal of Sound Insulation for Compressor
Procedure Warning Be sure to turn off all power supplies before disassembling work.
Step Procedure Points
1
Undo the sound insulation
fixture string and draw out
the sound insulation.
2
Draw out the sound
insulation (a) from the top
of the compressor.
3
Undo the fixture string of
the sound insulation (b)
and draw it out.
