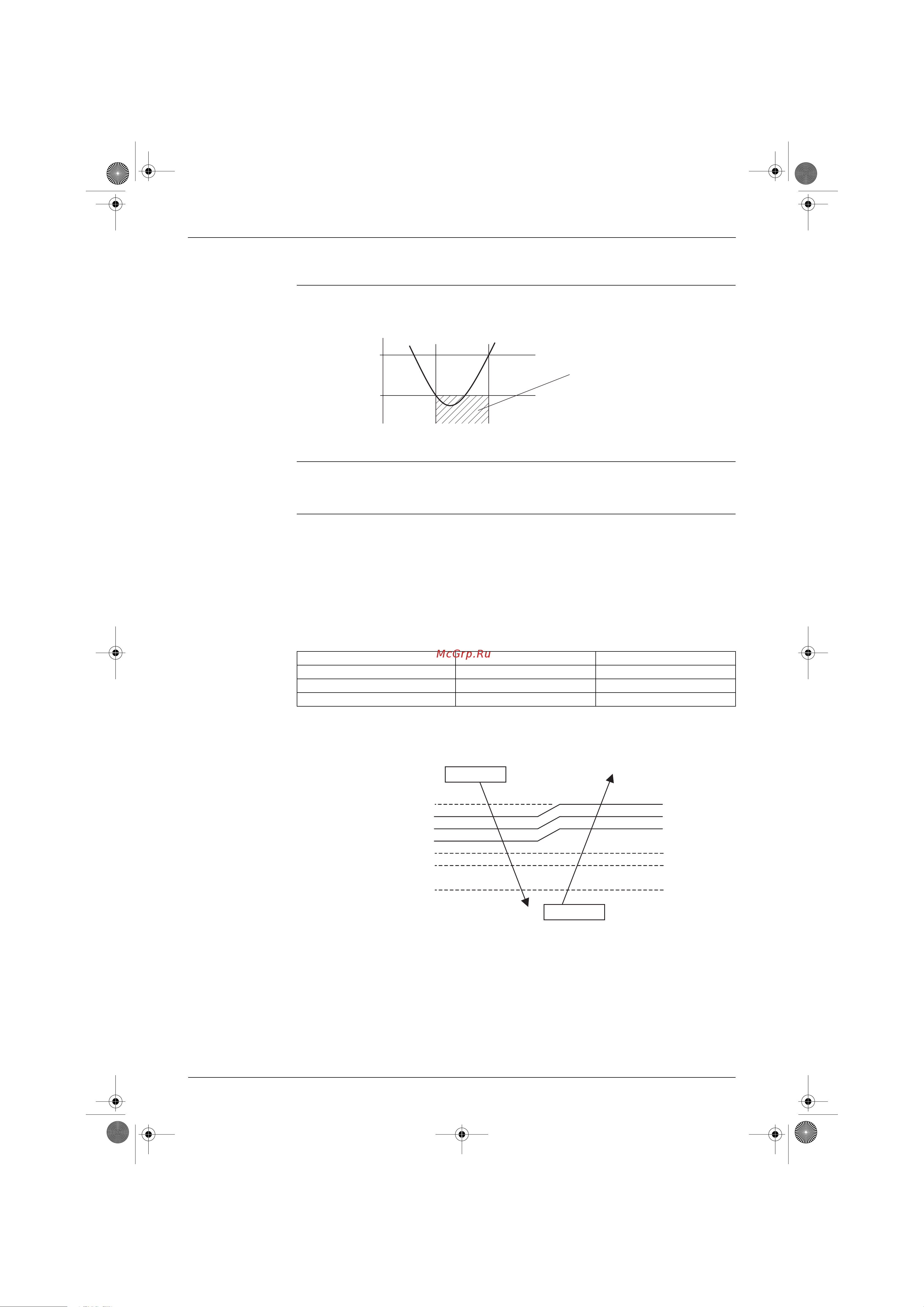

General Functions SiBE04-101
30 Main Function
1.10 General Functions
Pre-heat Operation When the equipment has stopped and t
[outside]
< 4˚C, the compressor is warmed-up by passing a single-
phase (U, V phase) current through the compressor motor to speed up the start. The power consumption is
50~60W.
Hot Start Function During defrosting or when the thermostat is on in heating mode, if the indoor heat exchanger temperature
is < 29˚C, restrict the fan rotating speed to L tap and under to prevent the cold draft.
Dry Mode The dry mode removes humidity while maintaining the room temperature. The temperature and fan cannot
be regulated during dry mode.
<Management>
1. Decision of the dry setting temperature
When entering the following dry mode,
Stop → an operation will start with Dry.
Mode except Dry → changing to dry mode
Thermostat ON/OFF point is decided in accordance with the following conditions.
2. Frequency command
The frequency command is decided based on a room temperature zone.
The room temperature zone is decided as follows.
4˚C
6˚C
Discharge pipe
temperature
OFF
ON OFF
warm-up
control for
compressor
(R1032)
Room temp. condition at entering Dry. Set temp. (thermostat ON) Thermostat OFF temp.
24˚C ≤ Room temp. Room temp. at the entering. Room temp. -2˚C at the entering.
18˚C ≤ Room temp. < 24˚C Room temp. at the entering. Room temp. -1.5˚C at the entering.
Room temp. < 18˚C 18˚C 17˚C
Room temp. - setting temp.
Room temp.
zone
1.0
Room temp.
zone
F
0.5 F
E
0E
D
-0.5 D B
-1
-1.5
Thermostat OFF point
B
AA
at falling temp.
at rising temp.
(R1227)
