Daikin FTXD50JV1B [20/164] Display pcb detail pcb 3

Daikin FTXD60JV1B [20/164] Display pcb detail pcb 3

Printed Circuit Board Connector Wiring Diagram and Name SiBE04-101

12 Printed Circuit Board Connector Wiring Diagram

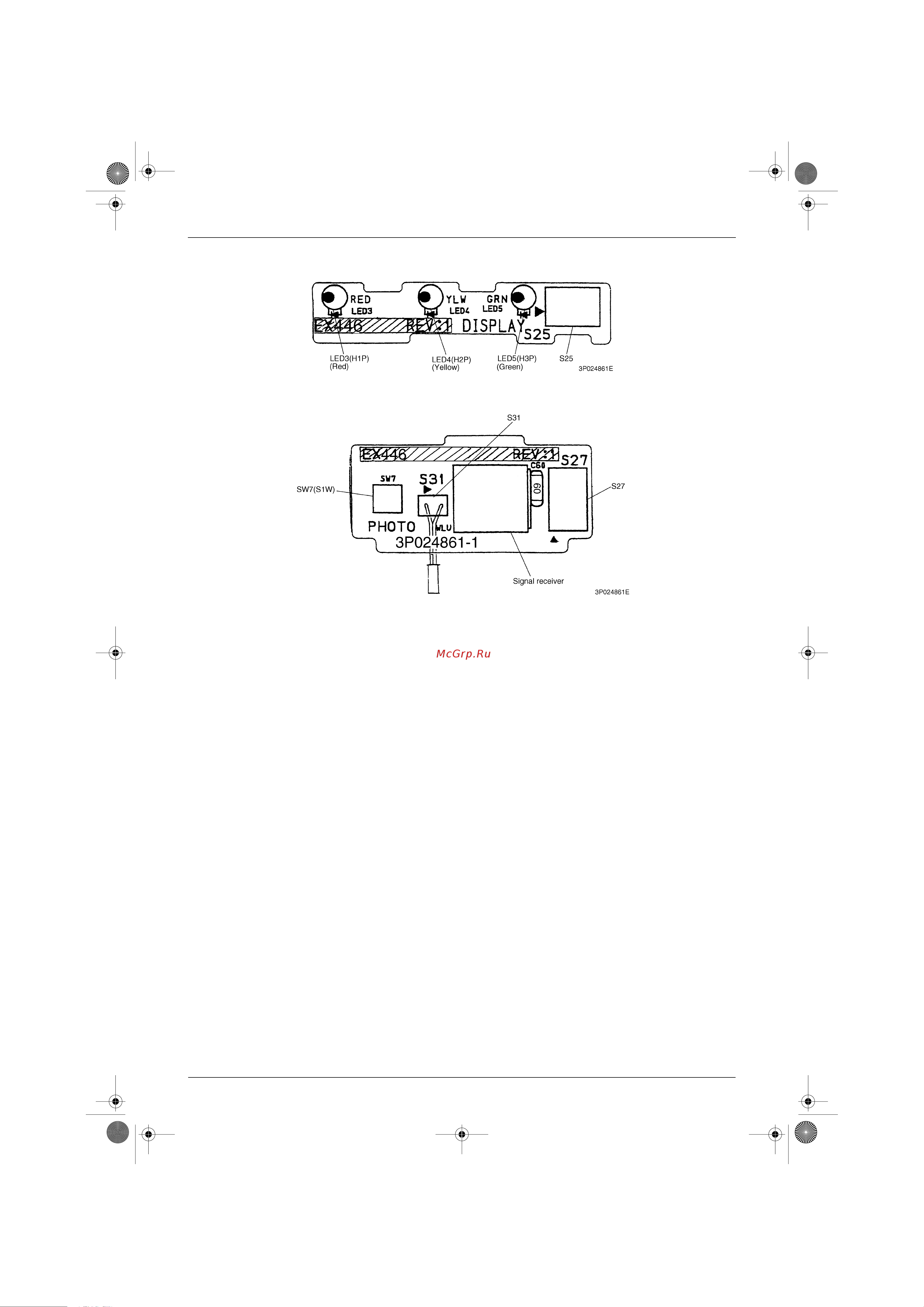

1.3.3 Display PCB Detail (PCB 3)

1.3.4 Signal Receiver PCB Detail (PCB 4)

SiBE04-101.book Page 12 Monday, October 15, 2001 3:08 PM
