4 x Set-up and installation

Installation and maintenance instructions

Daikin Altherma M ECH

Solar storage tank with heating controller

008.1446799_00 – 07/2019 – EN

4.1.2 EKHWMX(B)500C

1 Solar inflow

2 Cold water

3 Hot water

4 Heating flow

5 Heating return flow

6 Outdoor unit water outlet connection

7 Outdoor unit water inlet connection

8 Solar feed (type EKHWMXB… only)

9 Solar return (type EKHWMXB… only)

A Front

B Rear

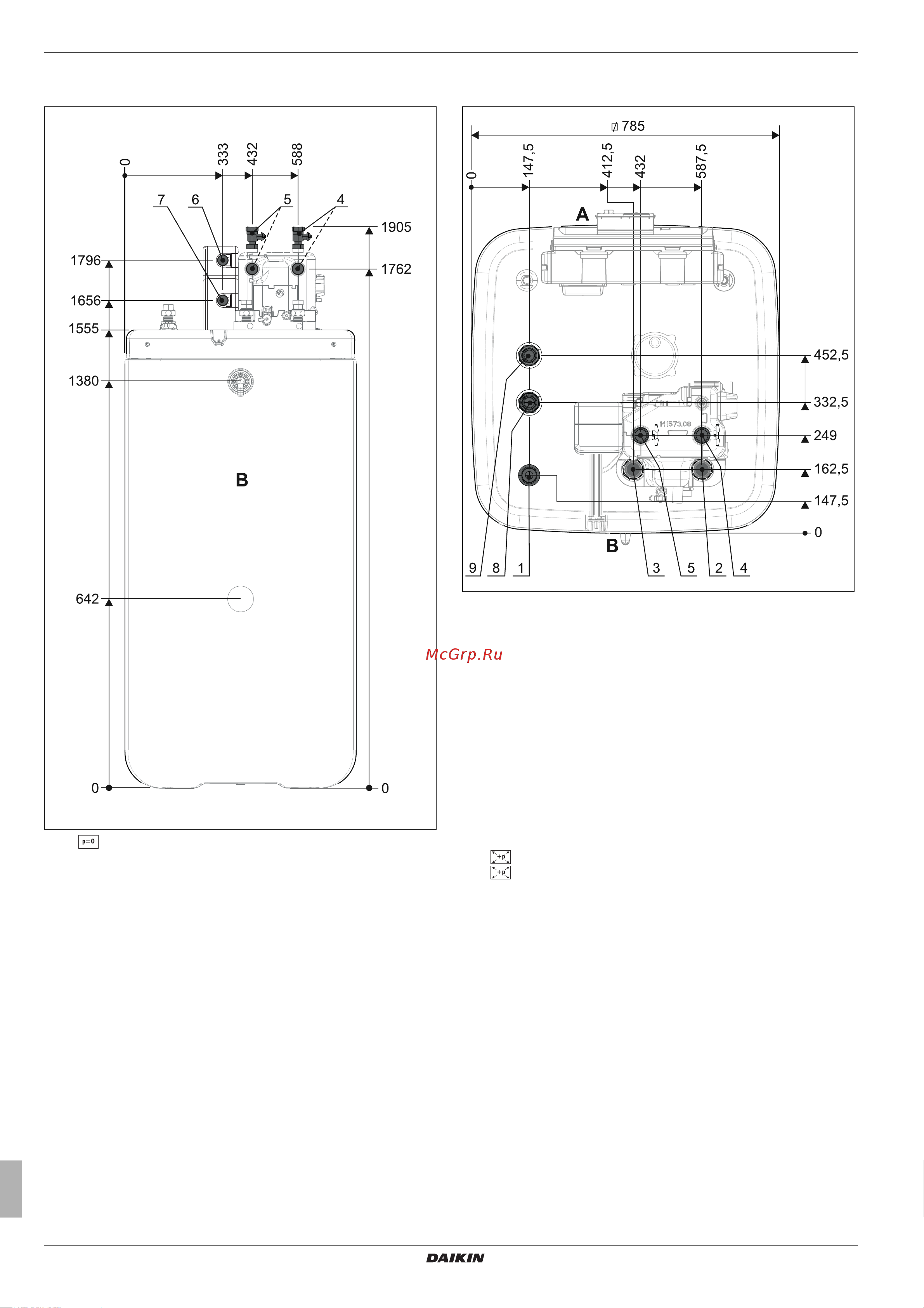

Fig. 4-2 EKHWMX(B)500C connections and dimensions
