4 x Set-up and installation

Installation and maintenance instructions

Daikin Altherma M ECH

Solar storage tank with heating controller

008.1446799_00 – 07/2019 – EN

● Remove packing and dispose of it in an environment-friendly

manner.

● Pull off the cover screens (fig. 4-4, item B) from the storage

tank and unscrew the threaded fittings (fig. 4-4, item F) from

the openings at which the handles are to be fitted (fig. 3-1 to

fig. 3-2, item 24).

● Screw the handles (fig. 4-4, item A) into the now uncovered

threaded holes.

A Handle

B Cover screen

F Threaded piece

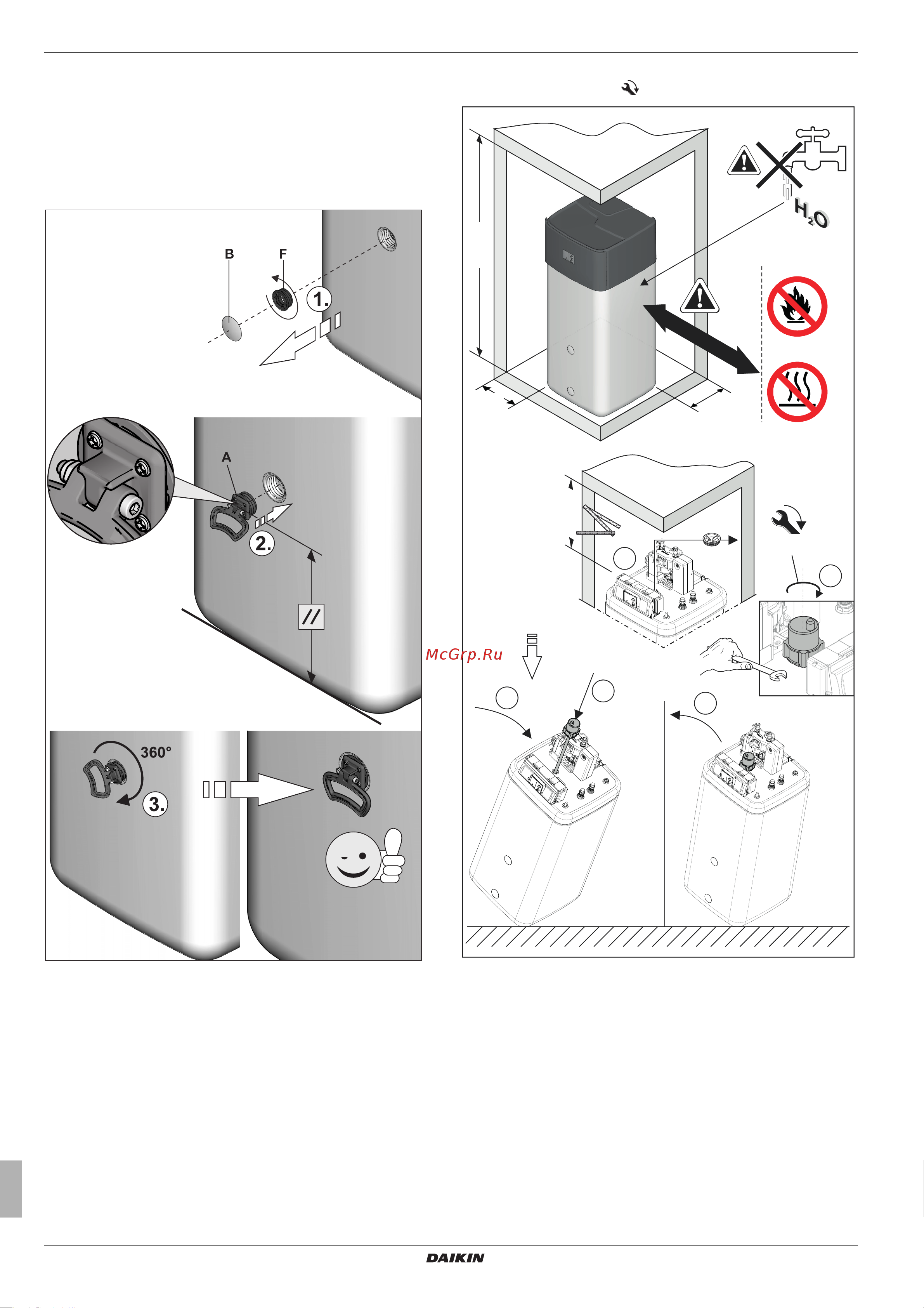

Fig. 4-4 Installing the handles

● Install the Daikin Altherma M ECH

O at the installation site.

– Recommended clearances (fig. 4-5):

From the wall: (s1) ≥ 100 mm, (s2) ≥ 500 mm.

From the ceiling (X): ≥ 1200 mm, at least 480 mm.

– Transport the Daikin Altherma M ECH

O using the han-

dles.

– When setting up the unit in a cabinet, behind panels or in

other restricted conditions, sufficient ventilation (e.g.,

using ventilation gratings) must be ensured.

● If required, install the optional backup heater (EKBUxx) in the

Daikin Altherma M ECH

O (fig. 4-5).

Observe the installation and operating instructions enclosed

with the accessories (

tightening torque, see chap. 10.4).

1200 mm

ኢ

>80°C

<1000 mm

max. 10 Nm

≥ 2050

Fig. 4-5 Installation (shown on EKHWMX(B)500C with installation of

the optional backup heater)
