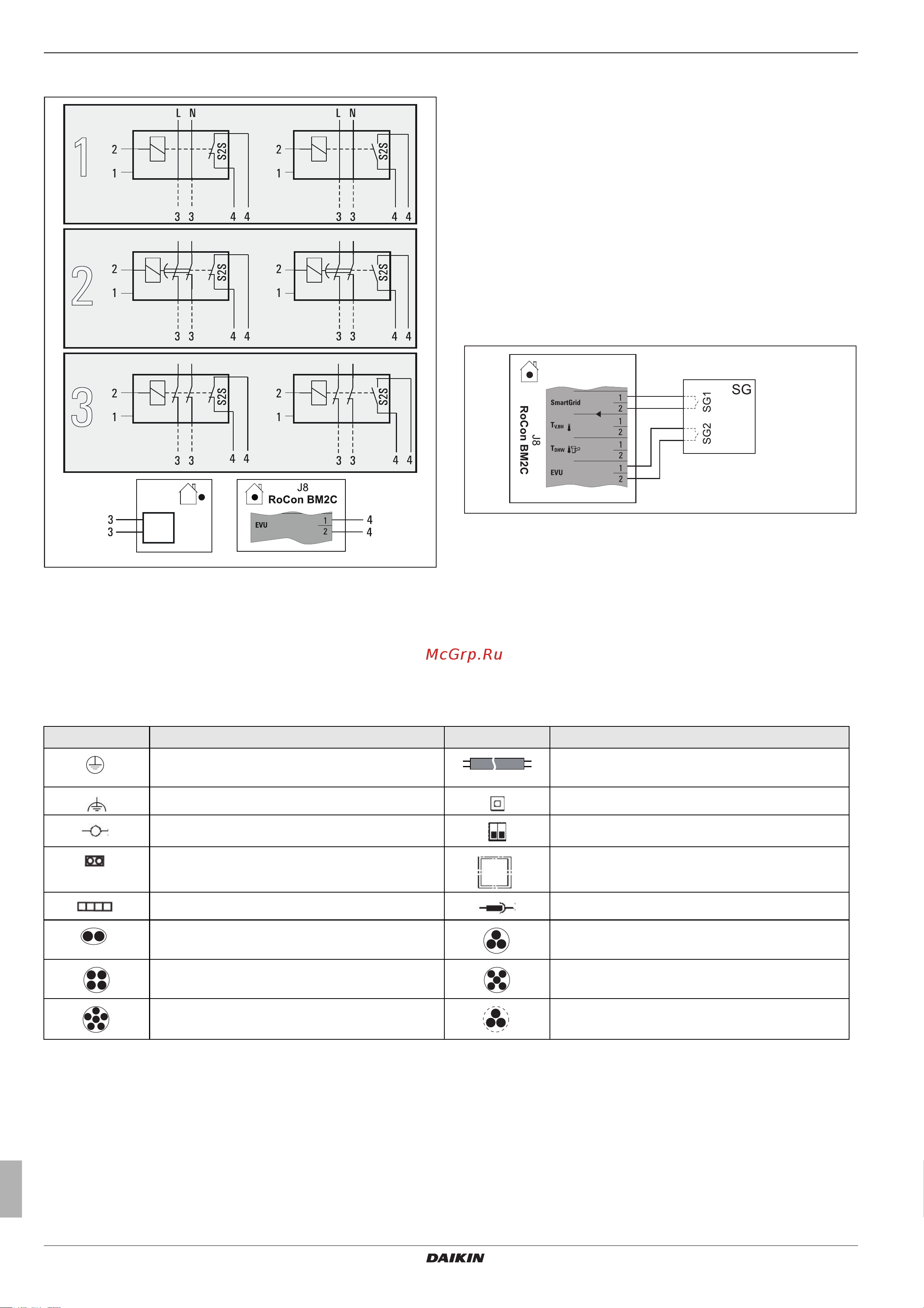

[HT/NT Contact] = 1 [HT/NT Contact] = 0
1 Mains connection box for off-peak mains connection
2 Receiver for evaluating the HT/NT control signal
3 Heat pump outdoor unit power supply (see respective installation
instructions for the heat pump outdoor unit)
4 Potential-free switching contact for heat pump indoor unit
Fig. 4-44 Connection of HT/NT switching contact
4 x Set-up and installation
Installation and maintenance instructions
30
Daikin Altherma M ECH
2
O
Solar storage tank with heating controller
008.1446799_00 – 07/2019 – EN
4.5.15 Connecting an intelligent controller
(Smart Grid - SG)
As soon as the function is activated through the parameter
[SMART GRID] = 1 (see controller operating instructions), the
heat pump is switched to Stand-by, standard or a mode with
higher temperatures depending on the utility company signal.
To do this, the intelligent controller's potential-free switching
contacts SG1/SG2 must be connected to connector J8,
Smart Grid and EVU connection, on the RoCon BM2C printed
circuit board (see fig. 4-45).
As soon as the Smart Grid function is active, the HT/NT function
is automatically deactivated. The heat pump is operated differ-
ently depending on the value of the parameter [Mode SG] (see
controller operating instructions).
Fig. 4-45 Smart Grid connection
4.5.16 Symbols and key names for connection and wiring diagrams
Symbols Explanation Symbols Explanation
Safety earthing
External cabling (number of individual cores and
the mains voltage are partially quoted.)
Low external voltage earthing Pushbutton
Connection terminal DIP switch
Plug connection Optional component
Terminal rail Plug and socket connection
2-core cabling (non-screened) 3-core cabling (non-screened)
4-core cabling (non-screened) 5-core cabling (non-screened)
6-core cabling (non-screened) Screened cabling (e.g. 3-core)
Tab. 4-2 Explanation of symbols for connection and wiring diagrams
