Инструкция по монтажу Страница: 23

Daikin EKHWMX500CA [23/68] X set up and installation

Daikin EKHWMX300CA [23/68] X set up and installation

4 x Set-up and installation

Daikin Altherma M ECH

Solar storage tank with heating controller

008.1446799_00 – 07/2019 – EN

Installation and maintenance instructions

4.5.1 Daikin Altherma M ECH

O overall connection

diagram

See tab. 4-2 and tab. 4-3 for an explanation of the sym-

bols and abbreviated designations in this chapter.

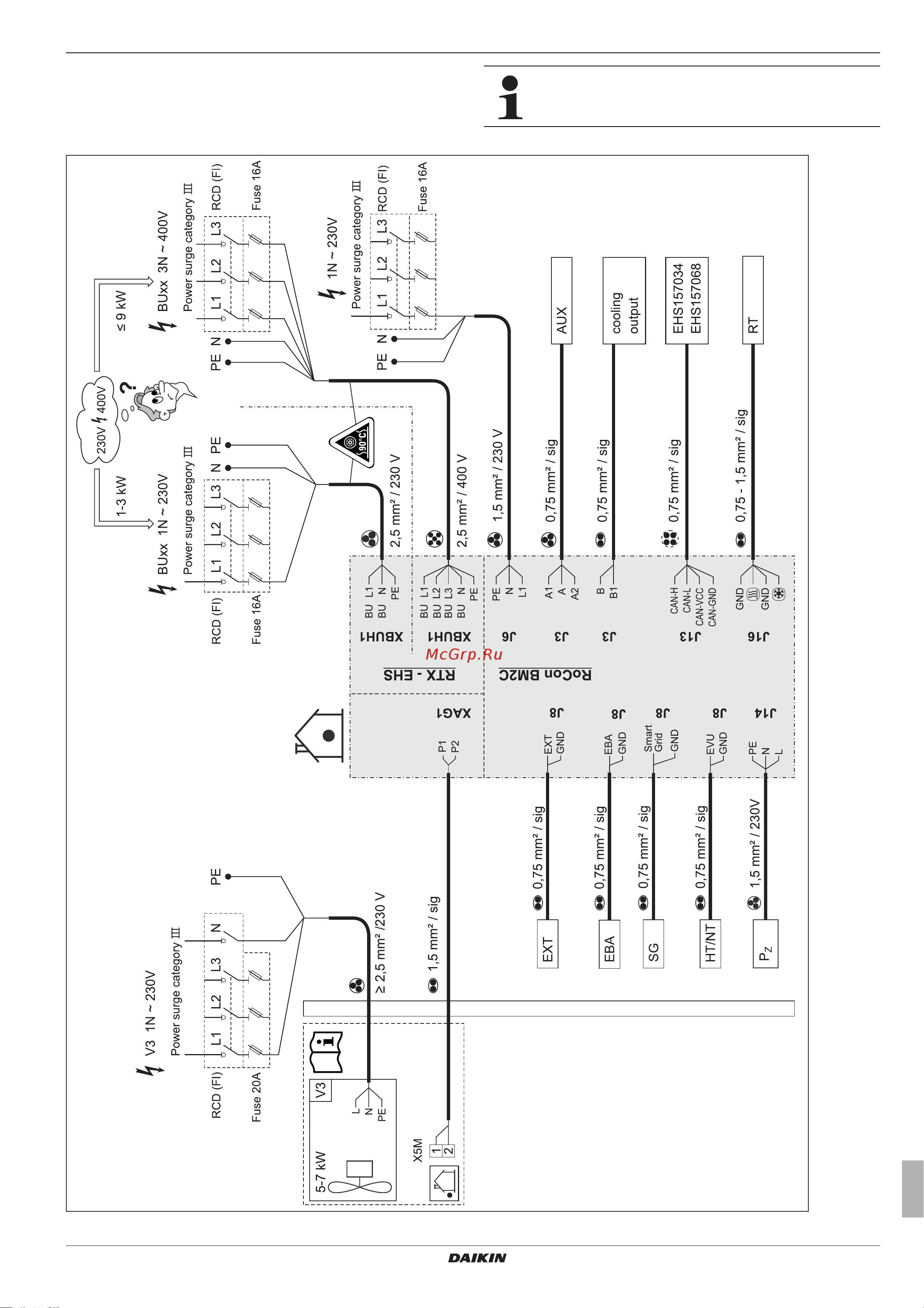

Fig. 4-23 Overall connection diagram - for electrical connection during device installation
