3 x Product description

Daikin Altherma M ECH

Solar storage tank with heating controller

008.1446799_00 – 07/2019 – EN

Installation and maintenance instructions

3.1.2

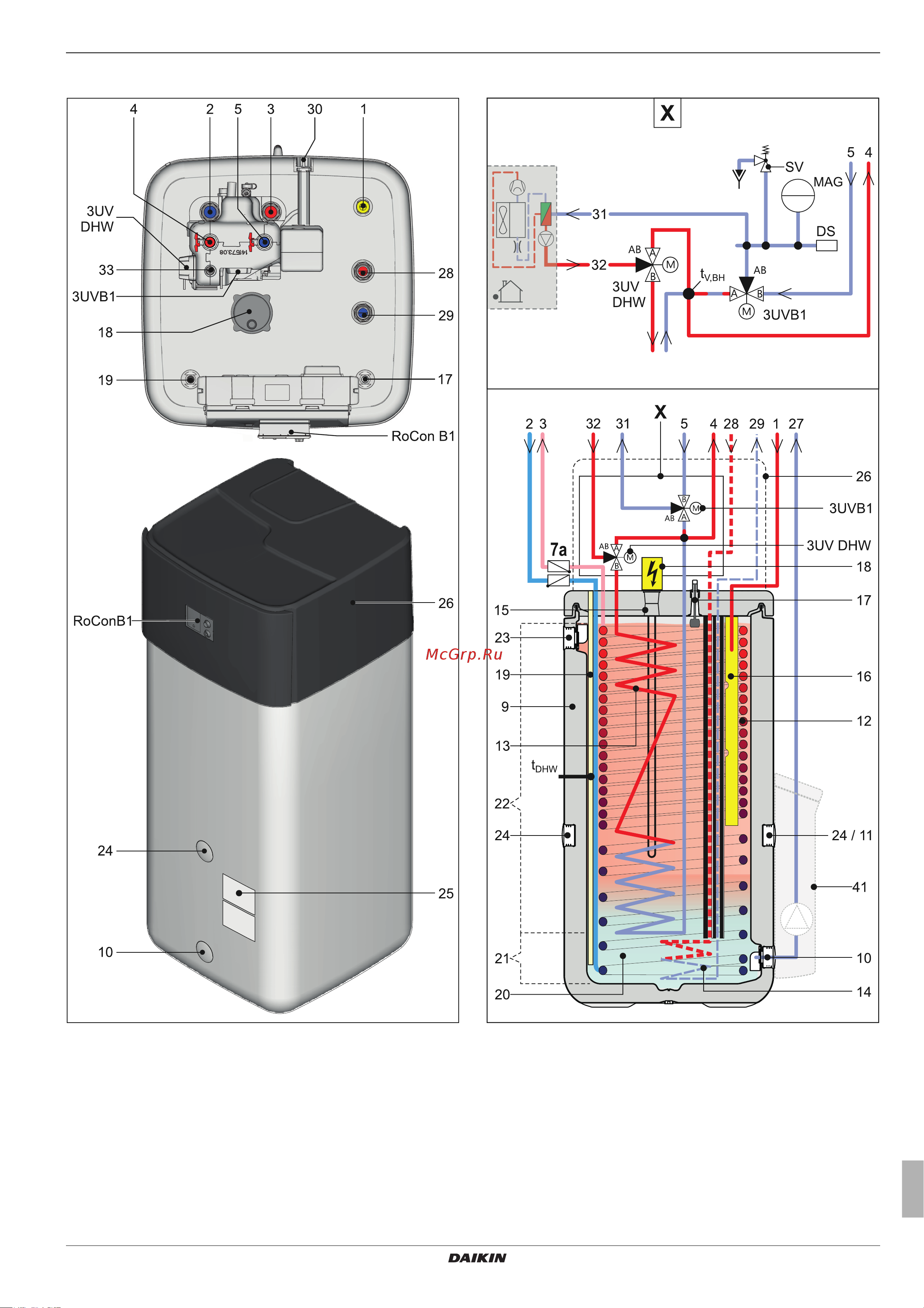

Fig. 3-2 EKHWMX(B)500C design and components (exterior view and interior structure)

Key names, see tab. 3-1

Exterior of the device and interior structure EKHWMX(B)500C
