4.3 Removing the cover and thermal insulation

● Raise the cover at the rear and remove forwards.

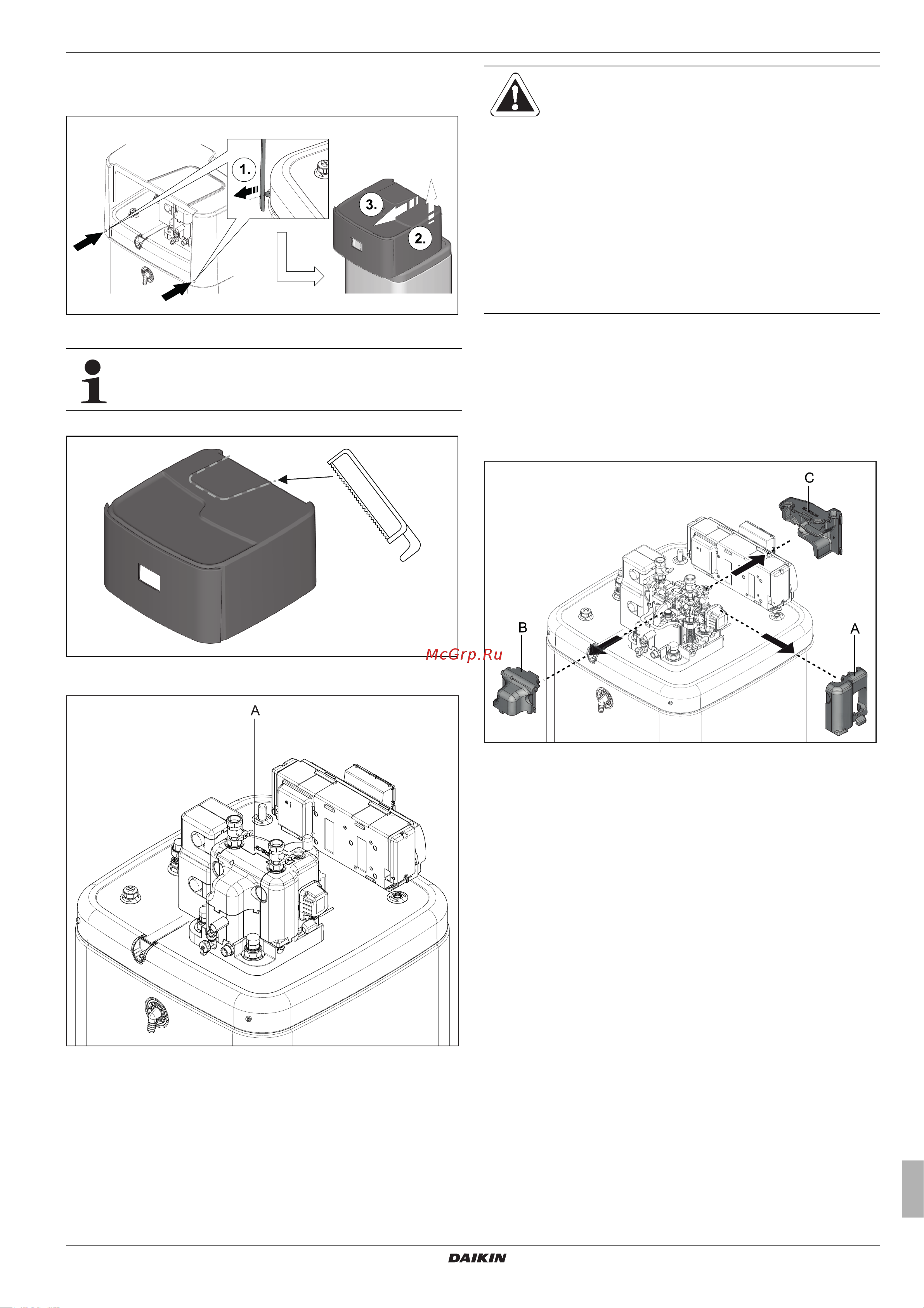

Fig. 4-6 Remove the protective cover

If the installation conditions require the hydraulic con-

nection directly upwards, the cover can be cut out along

the broken line.

Fig. 4-7 Producing the cover cut-out

Fig. 4-8 Daikin Altherma M ECH

O without protective cover

CAUTION!

The thermal insulation (fig. 4-8, item A) consists

of pressure-sensitive EPP moulded parts that

can be easily damaged if not handled correctly.

● Only remove the thermal insulation in the

order stated below and in the stated direc-

tions.

● Do not use force.

● Do not use tools.

● Remove the thermal insulation in the following order:

– Pull the side insulating element off horizontally (fig. 4-9,

item A).

– Pull the rear insulating element off horizontally (fig. 4-9,

item B).

– Pull the front insulating element off horizontally (fig. 4-9,

item C).

Fig. 4-9 Removing the top thermal insulation

● As required: Remove the bottom thermal insulation in the fol-

lowing order:

– Pull the side insulating element off vertically (fig. 4-10,

item A).

– Pull the rear insulating element off vertically (fig. 4-10,

item B).
