Nissan Note [10/34] Installation of fuel filler hose

FL-10

[CR]

FUEL TANK

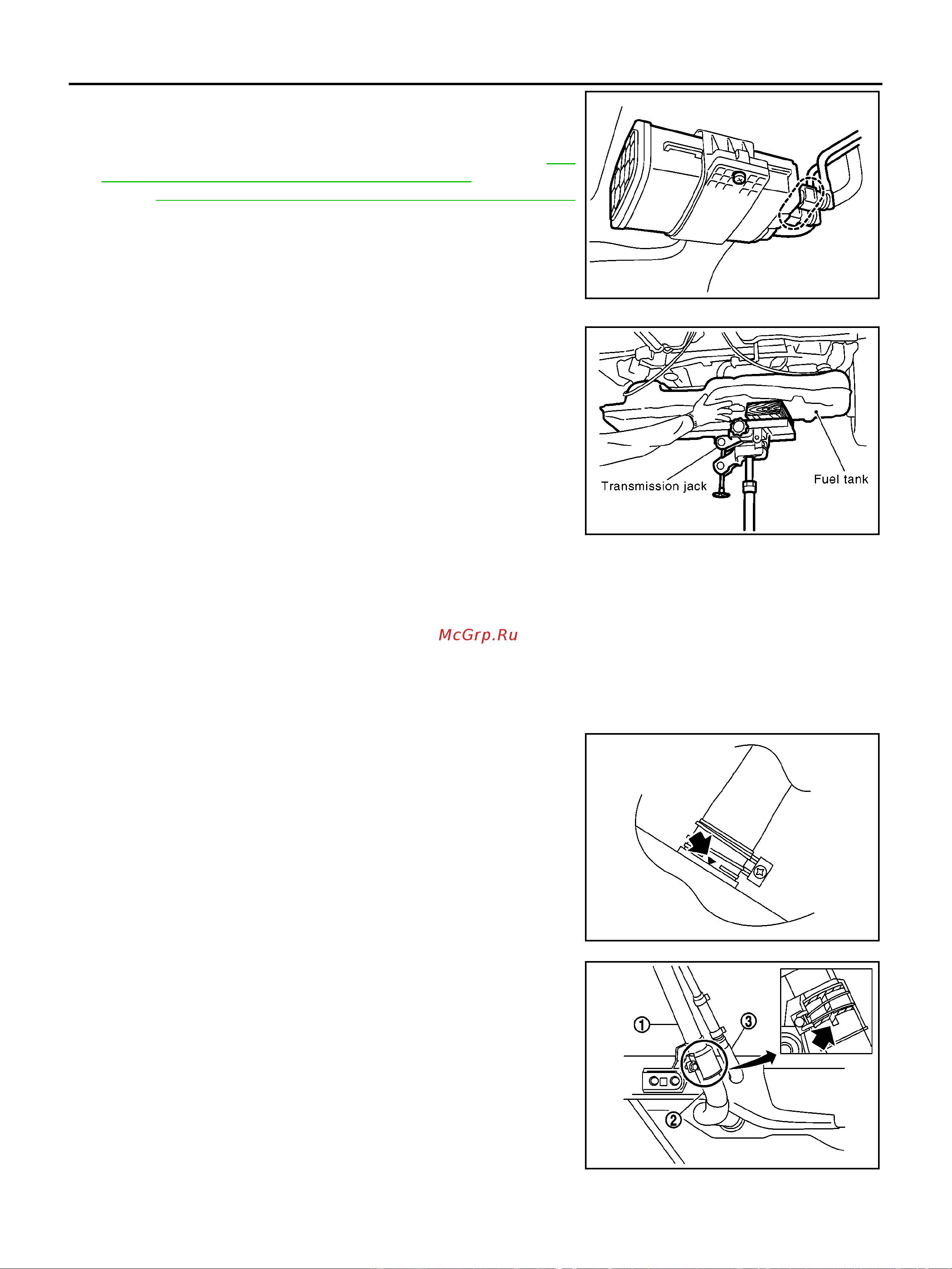

9. If necessary, remove mounting screw and quick connectors and

slide the EVAP canister rearward to remove it from the fuel tank.

NOTE:

For servicing “Evaporative Emission System” parts, refer to EC-

41, "EVAPORATIVE EMISSION LINE DRAWING" (with EURO-

OBD), EC-470, "

EVAPORATIVE EMISSION LINE DRAWING"

(without EURO-OBD).

10. Support center of fuel tank with suitable transmission jack.

CAUTION:

Securely support the fuel tank with a piece of wood.

11. Remove RH/LH mounting band.

12. Lower suitable transmission jack carefully to remove fuel tank

while holding it by hand. Perform the following works at the

same time.

● Pull out vent hose from through hole of vehicle.

● Avoid interference with tank by pulling parking brake cable by

hand.

CAUTION:

Tank may be in an unstable condition because of the shape of fuel tank bottom. Do not rely on jack

too much. Be sure to hold tank securely.

INSTALLATION

Install in the reverse order of removal which being careful of the following.

Installation of Fuel Tank Mounting Band

● Install it by referring to the identification stamp mark “R” and “L” on the end.

Installation of fuel Filler Hose

● Install fuel filler hose to fuel tank, paying attention to install mark.

Marking faces downward.

● Install fuel filler hose (2) to fuel filler tube (1), paying attention to

install mark. Marking faces rightward.

● Insert filler hose into mating side part by 35 mm (1.38 in), and

secure it with clamp.

● When installing clamp, do not allow clamp to contact the bulge

(bump) part of the tube.

● Tighten the clamp of filler hose so that the remaining length

becomes 5 - 9 mm (0.20 - 0.35 in) [or tightening torque: 1.3 - 3.7

N·m (0.13 - 0.38 kg-m, 12 - 32 in-lb].

MBIB9040E

PBIC1508E

MBIB9043E

MBIB9041E
