Nissan Note [32/34] Fuel tank

FL-32

[K9K]

FUEL TANK

7. Remove vent hose at RH rear wheelwell side.

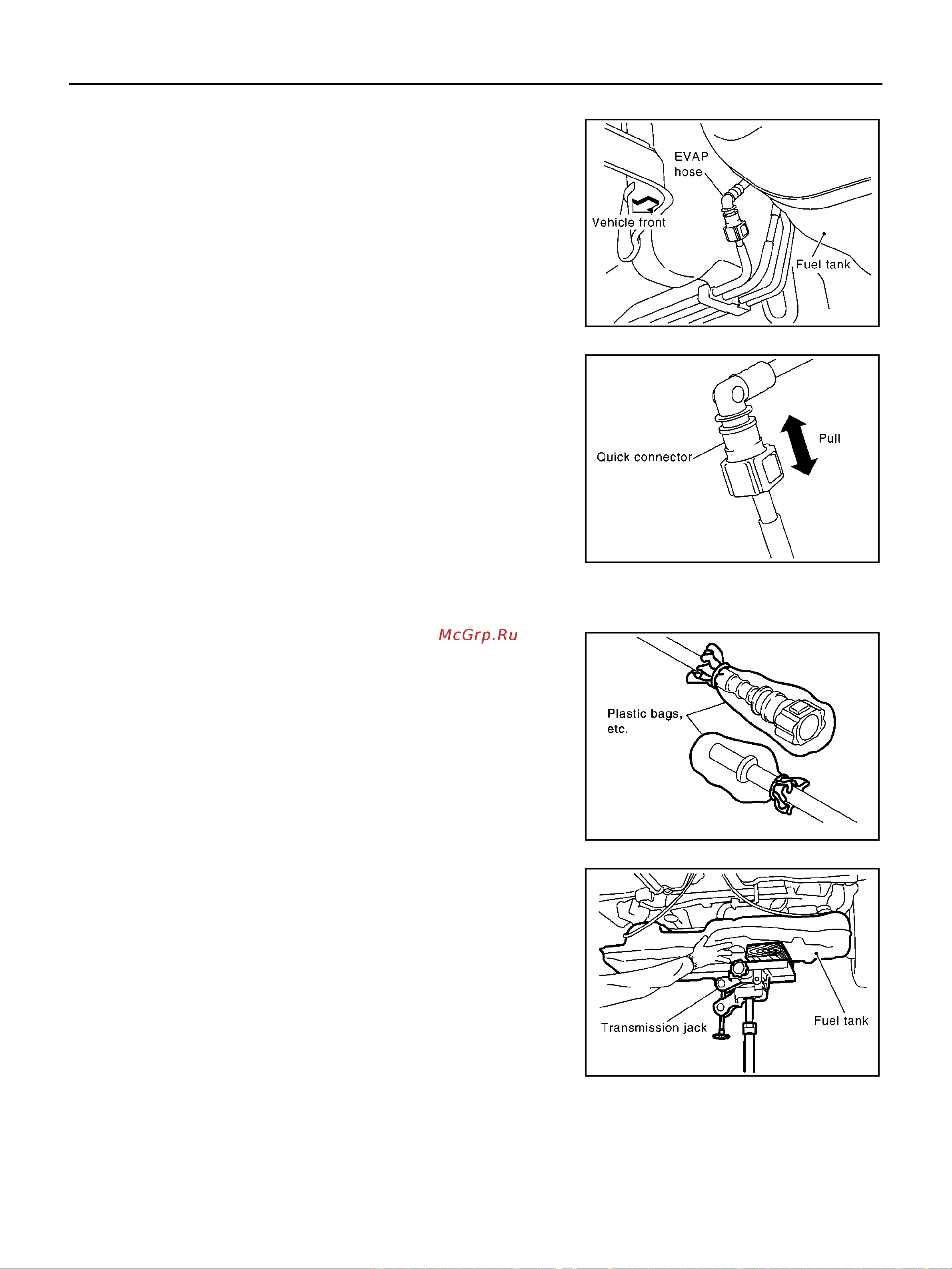

8. Remove EVAP hose at front side of fuel tank.

● Remove quick connector in the following procedures.

– Pinch quick connector square-parts with your fingers, and pull

out the quick connector by hand.

– If quick connector and tube on vehicle are stuck, push and

pull several times until they move, and pull out.

CAUTION:

● The tube can be removed when the tabs are completely

depressed. Do not twist it more than necessary.

● Do not use any tools to remove the quick connector.

● Keep the resin tube away from heat. Be especially

careful when welding near the tube.

● Prevent acid liquid such as battery electrolyte etc. from getting on the resin tube.

● Do not bend or twist the tube during installation and removal.

● To keep clean the connecting portion and to avoid damage

and foreign materials, cover them completely with plastic

bags or something similar.

CAUTION:

Do not insert plug, preventing damage on O-ring in quick

connector.

9. Support center of fuel tank with suitable transmission jack.

CAUTION:

Securely support the fuel tank with a piece of wood.

10. Remove RH/LH mounting band.

11. Lower suitable transmission jack carefully to remove fuel tank

while holding it by hand. Perform the following works at the

same time.

● Pull out vent hose from through hole of vehicle.

● Avoid interference with tank by pulling parking brake cable by

hand.

CAUTION:

Tank may be in an unstable condition because of the shape of fuel tank bottom. Do not rely on jack

too much. Be sure to hold tank securely.

INSTALLATION

Install in the reverse order of removal which being careful of the following.

PBIC1507E

PBIC1509E

PBIC0713E

PBIC1508E
