Nissan Note [30/34] Fuel level sensor unit

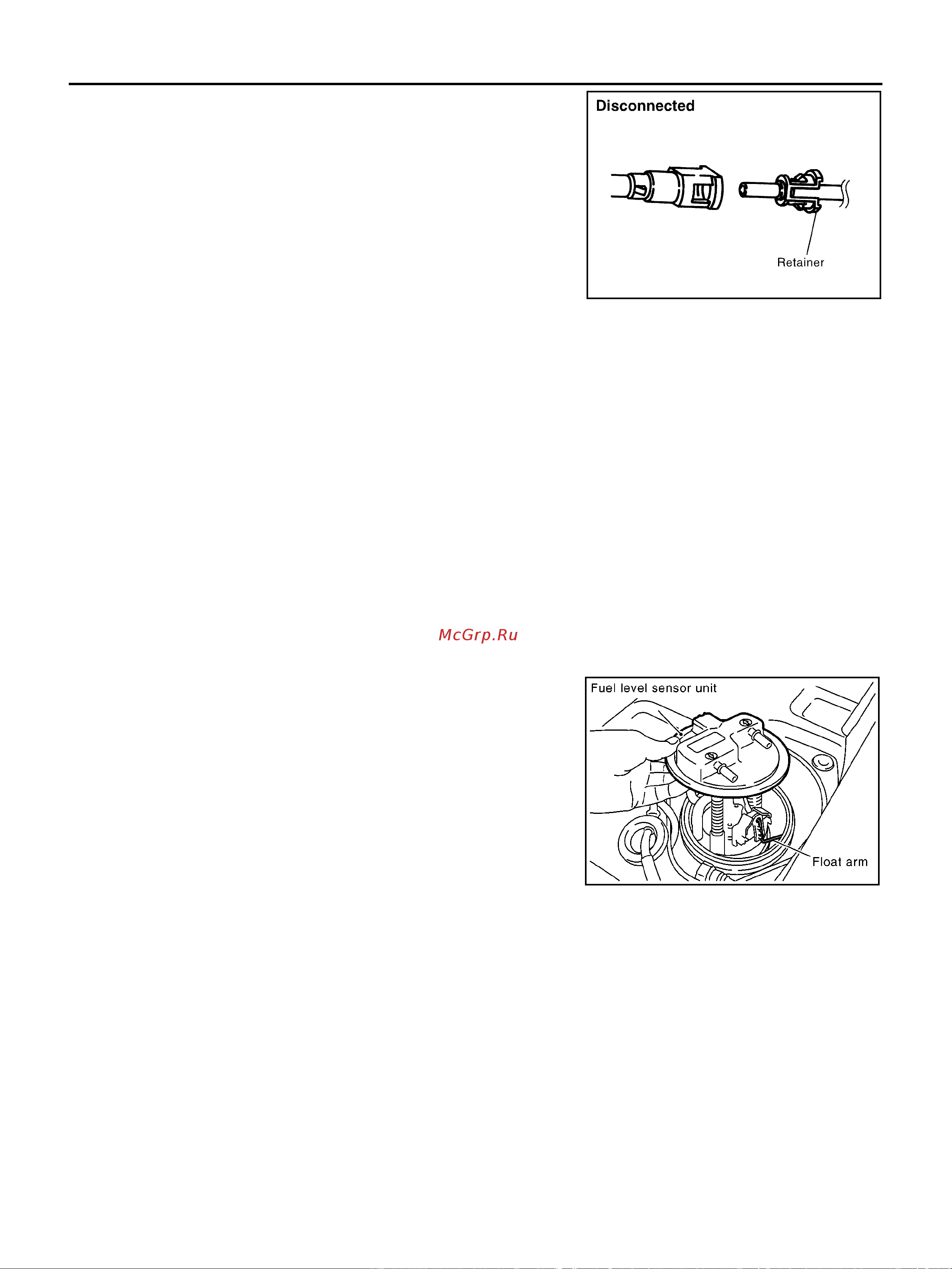

![Nissan Note [30/34] Fuel level sensor unit](/views2/1789813/page30/bg1e.png)
FL-30
[K9K]
FUEL LEVEL SENSOR UNIT
CAUTION:
● The tube can be removed when the tabs are completely depressed. Do not twist it more than
necessary.
● Do not use any tools to remove the quick connector.
● Keep the resin tube away from heat. Be especially careful when welding near the tube.
● Prevent acid liquid such as battery electrolyte etc. from getting on the resin tube.
● Do not bend or twist the tube during installation and removal.
● Only when the tube is replaced, remove the remaining retainer.
● When the tube is replaced, also replace the retainer with a new one.
7. Using lock ring wrench [SST: KV993G0010], remove lock ring.
CAUTION:
Rotate SST while pressing fuel level sensor unit as spring reaction force is applied from fuel tank
inside to up ward.
8. Remove fuel level sensor unit.
CAUTION:
● Be careful not to bend the float arm when removing.
● Handle them carefully without subjecting them to impacts
such as dropping.
INSTALLATION
Install in the reverse order of removal.
JFE628A
Retainer color:
Red (Feed hose side)
White (Return hose side)
MBIB1231E
