FL-4

[CR]

FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY

PFP:17042

Removal and Installation

BBS003YK

REMOVAL

WARNING:

Read “General Precautions” before working on the fuel system.

Refer to FL-3, "

General Precautions" .

1. Check fuel level. If gauge indicates more than the level shown in

figure (full or almost full), drain fuel from fuel tank until gauge

indicates the level in figure or below.

When fuel pump malfunctions, insert hose with outer diameter of

25 mm (0.98 in) or less from fuel filler port. Drain fuel in fuel filler

tube. Disconnect connections of fuel filler tube and fuel filler

hose to drain fuel from fuel filler hose.

● As guide, fuel amount becomes the level shown in figure or

below when approximately 7 liter (1-1/2 lmp gal) of fuel are

drained from full.

NOTE:

Adjusting fuel level is to prevent fuel from spilling, when fuel

level sensor unit, fuel filter and fuel pump assembly are removed.

2. Release fuel pressure. Refer to EC-71, "

Fuel Pressure Check" (with EURO-OBD), EC-488, "Fuel Pres-

sure Check" (without EURO-OBD).

a. Refer to steps 5 to 7. Remove harness connectors from fuel level sensor unit, fuel filter and fuel pump

assembly.

b. Start the engine. After stopping the engine, crank it two or three times to consume the fuel in the fuel line.

3. Open fuel filler lid.

4. Open the filler cap and release the pressure inside the fuel tank.

5. Remove rear seat. Refer to SE-12, "

REAR SEAT" .

6. Remove inspection hole cover.

● Using a screwdriver, remove it by turning clips clockwise by 90°.

MBIB1354E

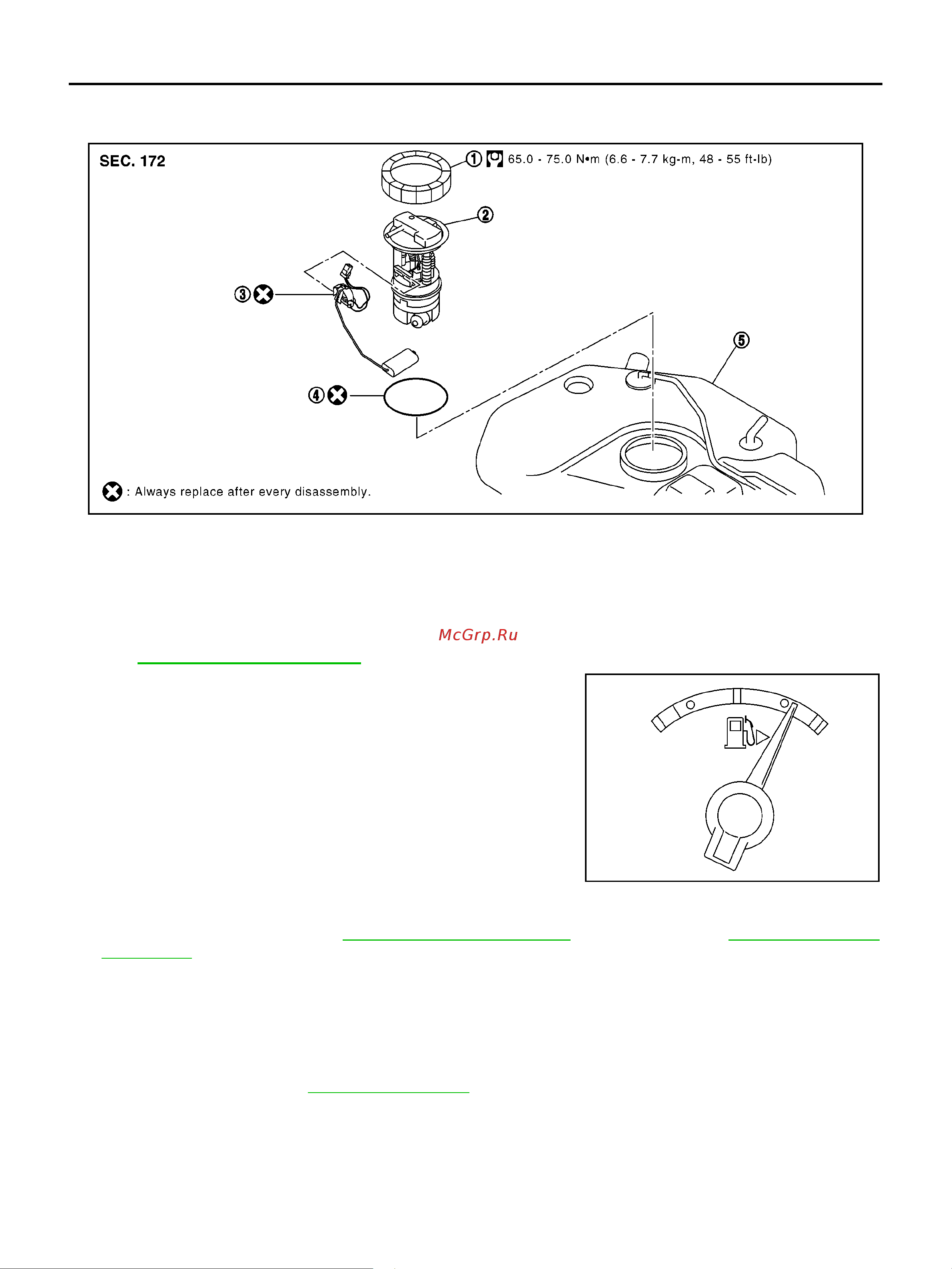

1. Lock ring 2. Fuel filter and fuel pump assembly 3. Fuel level sensor unit

4. O-ring 5. Fuel tank

PBIC1495E
