Nissan Note [9/34] Fuel tank

FUEL TANK

FL-9

[CR]

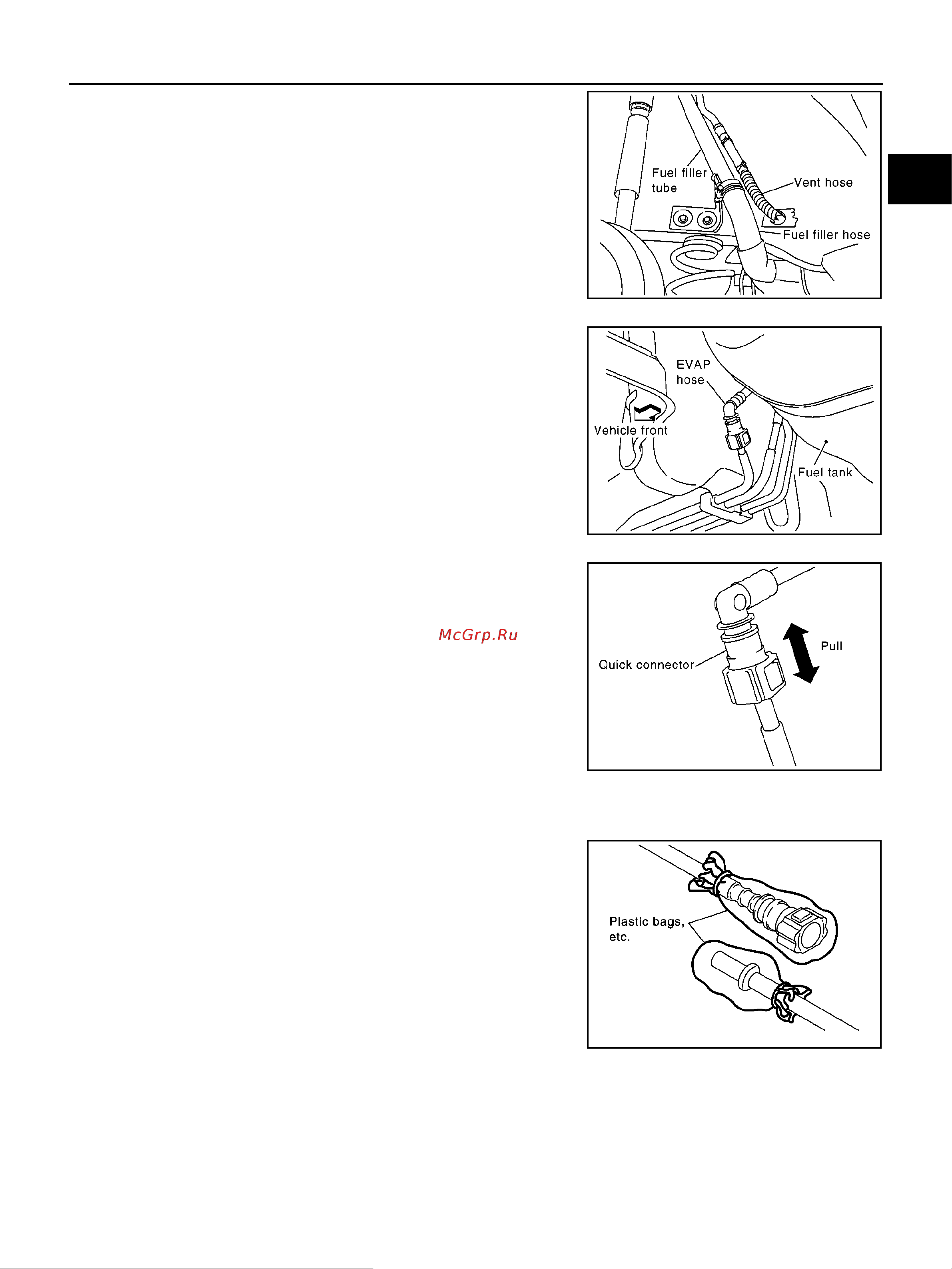

6. Disconnect fuel filler hose on fuel tank side.

CAUTION:

Do not remove fuel filler hose at fuel filler tube side, pre-

venting to interfere with suspension due to dislocation

when installing. When removing at fuel filler tube side nec-

essarily, put mating marks, and remove.

7. Remove vent hose at RH rear wheelwell side.

8. Remove EVAP hose at front side of fuel tank.

● Remove quick connector in the following procedures.

– Pinch quick connector square-parts with your fingers, and pull

out the quick connector by hand.

– If quick connector and tube on vehicle are stuck, push and

pull several times until they move, and pull out.

CAUTION:

● The tube can be removed when the tabs are completely

depressed. Do not twist it more than necessary.

● Do not use any tools to remove the quick connector.

● Keep the resin tube away from heat. Be especially

careful when welding near the tube.

● Prevent acid liquid such as battery electrolyte etc. from getting on the resin tube.

● Do not bend or twist the tube during installation and removal.

● To keep clean the connecting portion and to avoid damage

and foreign materials, cover them completely with plastic

bags or something similar.

CAUTION:

Do not insert plug, preventing damage on O-ring in quick

connector.

PBIC1505E

PBIC1507E

PBIC1509E

PBIC0713E
