FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY
FL-5
[CR]
C
D
E
F
G
H
I
J
K
L
M
A
FL

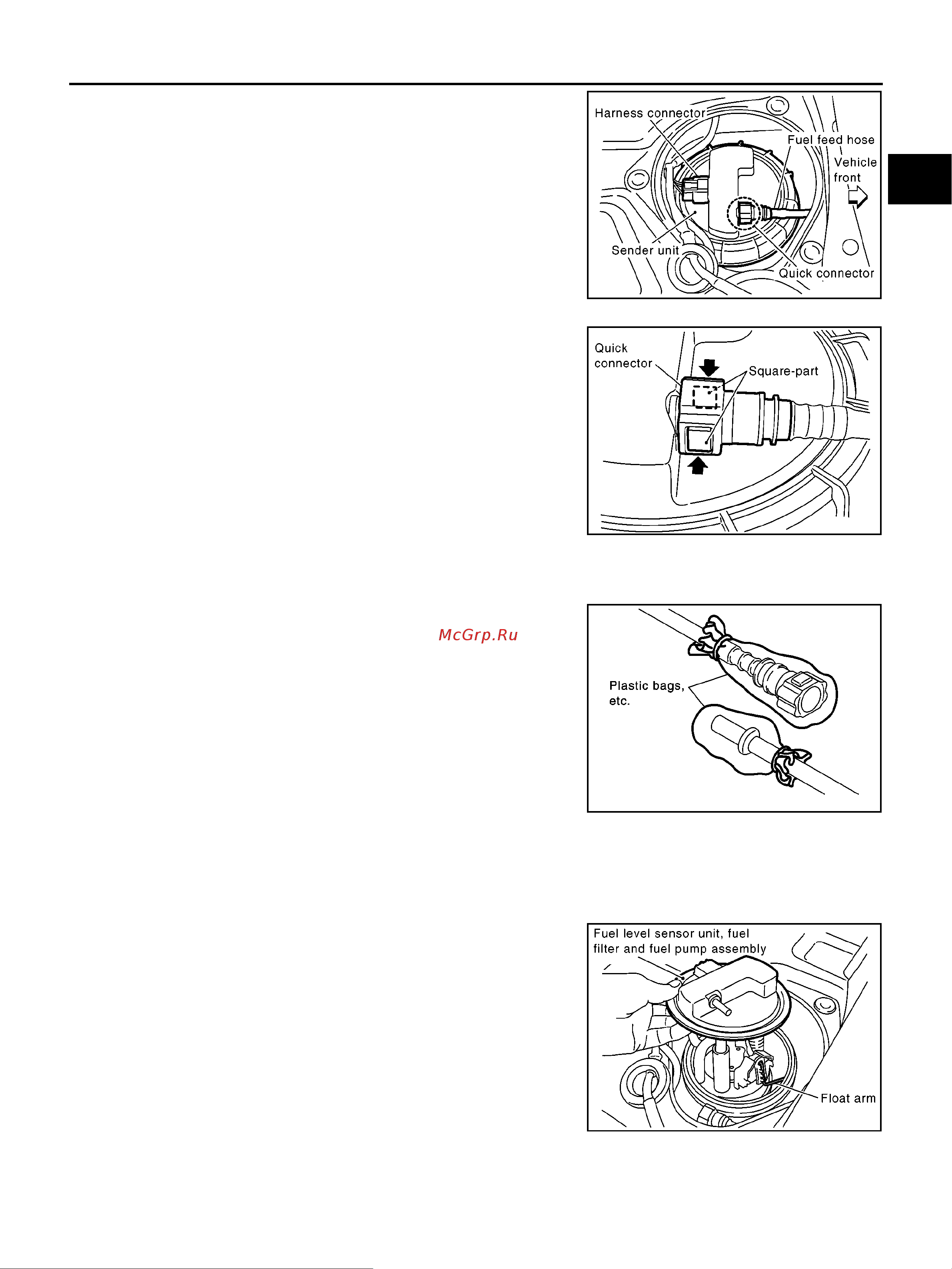

7. Remove harness connector and fuel feed hose from sender unit.
NOTE:
● Connections of harness connector and fuel feed hose are
called sender unit.
● Remove quick connector in the following procedures.
– Pinch quick connector square-parts with your fingers, and pull
out the quick connector by hand.
– If quick connector and tube on sender unit are stuck, push
and pull several times until they move, and pull out.
CAUTION:
● The tube can be removed when the tabs are completely
depressed. Do not twist it more than necessary.
● Do not use any tools to remove the quick connector.
● Keep the resin tube away from heat. Be especially
careful when welding near the tube.
● Prevent acid liquid such as battery electrolyte etc. from getting on the resin tube.
● Do not bend or twist the tube during installation and removal.
● To keep clean the connecting portion and to avoid damage
and foreign materials, cover them completely with plastic
bags or something similar.
CAUTION:
Do not insert plug, preventing damage on O-ring in quick
connector.
8. Using lock ring wrench [SST: KV993G0010], remove lock ring.
CAUTION:
Rotate SST while pressing fuel level sensor unit, fuel filter and fuel pump assembly as spring reac-
tion force is applied from fuel tank inside to upward.
9. Remove fuel level sensor unit, fuel filter and fuel pump assem-
bly.
CAUTION:
● Be careful not to bend the float arm when removing.
● Handle them carefully without subjecting them to impacts
such as dropping.
PBIC1496E
PBIC1497E
PBIC0713E
PBIC1498E
