Nissan Note [8/34] Fuel tank

FL-8

[CR]

FUEL TANK

PFP:17202

Removal and Installation

BBS003YL

*: To fuel tank

**: To EVAP canister purge volume control solenoid valve

: Air inlet

REMOVAL

WARNING:

Be sure to read “General Precautions” when working on fuel system.

Refer to FL-3, "

General Precautions" .

1. Remove RH rear wheel.

2. Perform steps 1 to 7 of FL-4, "

REMOVAL" in “FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL

PUMP ASSEMBLY”.

CAUTION:

If fuel tank bottom face is not level, and remaining fuel level is high, tank position becomes unsta-

ble, causing a danger. Drain fuel further than that in step 1 of the referenced procedure until tank

canbeheldbyhandevenifthebalanceislost.

3. Remove center muffler and main muffler. Refer to EX-3, "

EXHAUST SYSTEM" .

4. Remove vehicle side insulator on upper center muffler and main muffler.

5. Move parking brake cable from the lower face of fuel tank. Then remove clips for parking brake cable.

MBIB9039E

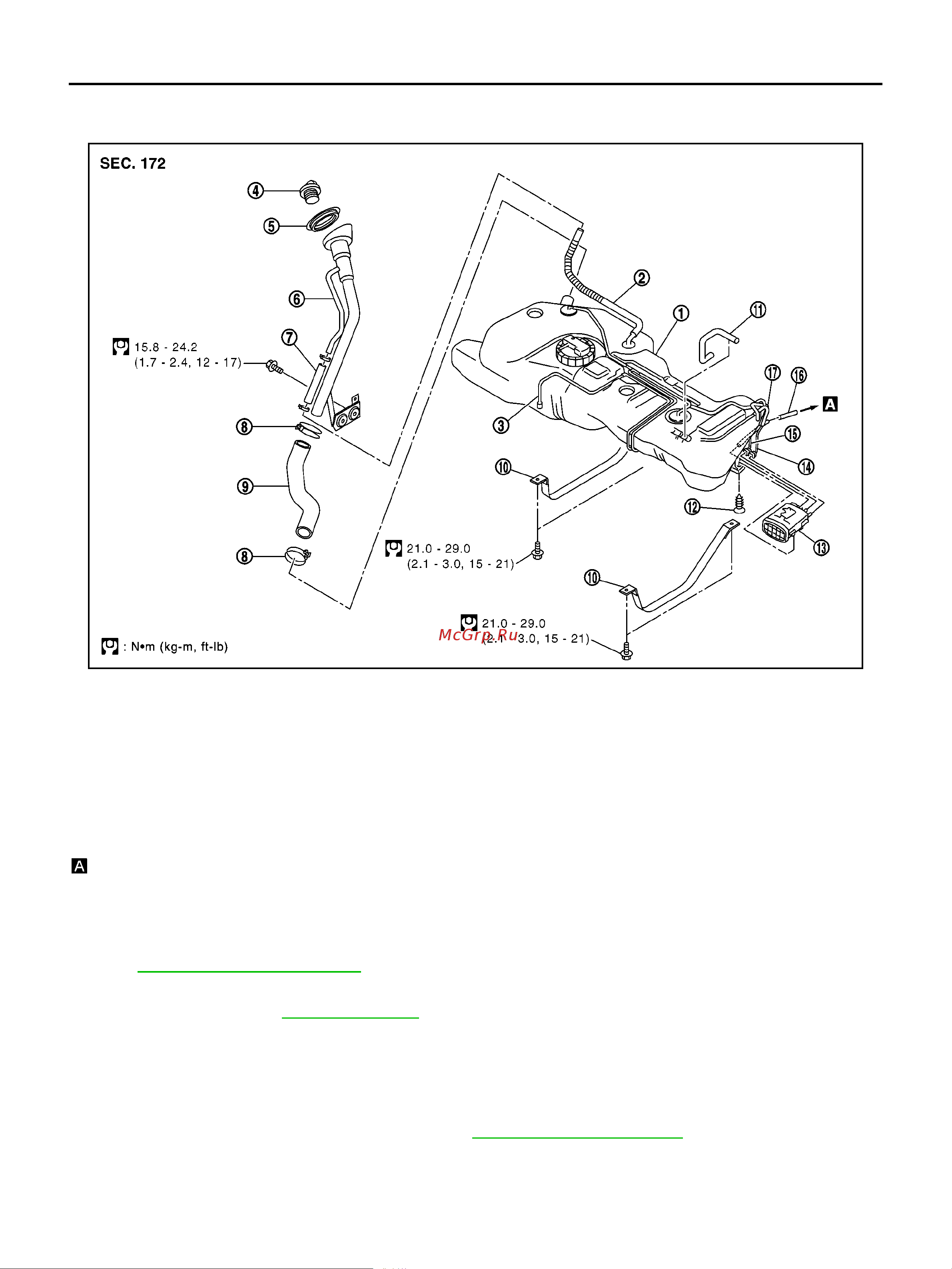

1. Fuel tank 2. Vent hose 3. EVAP tube

4. Fuel filler cap 5. Grommet 6. Fuel filler tube

7. Vent hose 8. Clamp 9. Fuel filler hose

10. Mounting band 11. EVAP hose 12. Evap canister mounting screw

13. Evap canister 14. Evap canister hose* 15. Evap canister hose**

16. Evap air inlet hose 17. Evap air inlet hose
