Nissan Note — precautions for Air Bag and Seat Belt System Maintenance [3/92]
![Nissan Note [3/92] Rhd models](/views2/1789835/page3/bg3.png)
PRECAUTIONS
WW-3
C
D
E
F
G
H
I
J
L
M
A
B
WW
PRECAUTIONS PFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
BKS0010Y
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the SRS and SB section of
this Service Manual.
WARNING:
● To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.
● Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.
● Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.
Maintenance Information
BKS0028L
If any of following part is replaced, always replace with new* one.
If it's not (or fail to do so), the electrical system may not be operated properly.
*: New one means a virgin control unit that has never been energized on-board.
RHD MODELS
● BCM (Models without Intelligent Key system)
● Intelligent Key unit (Models with Intelligent Key system)
● ECM
● IPDM E/R
● Combination meter
● EPS control unit
LHD MODELS
● BCM (Models without Intelligent Key system)
● Intelligent Key unit (Models with Intelligent Key system)
● ECM

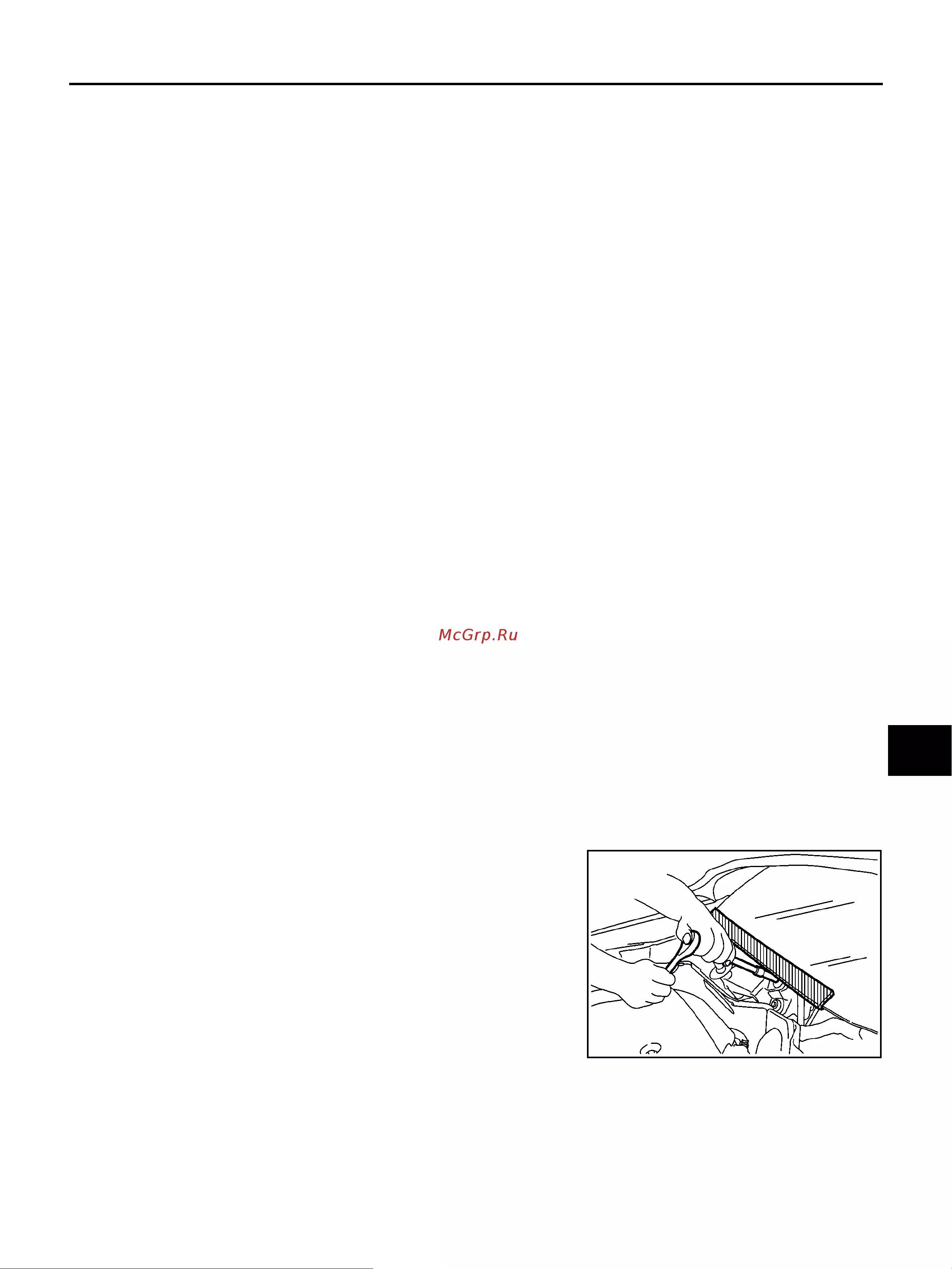

Precautions for Procedures without Cowl Top Cover
BKS0010Z
When performing the procedure after removing cowl top cover, cover
the lower end of windshield with urethane, etc.
PIIB3706J
