HEADLAMP WASHER
WW-85
C
D
E
F
G
H
I
J
L
M
A
B
WW

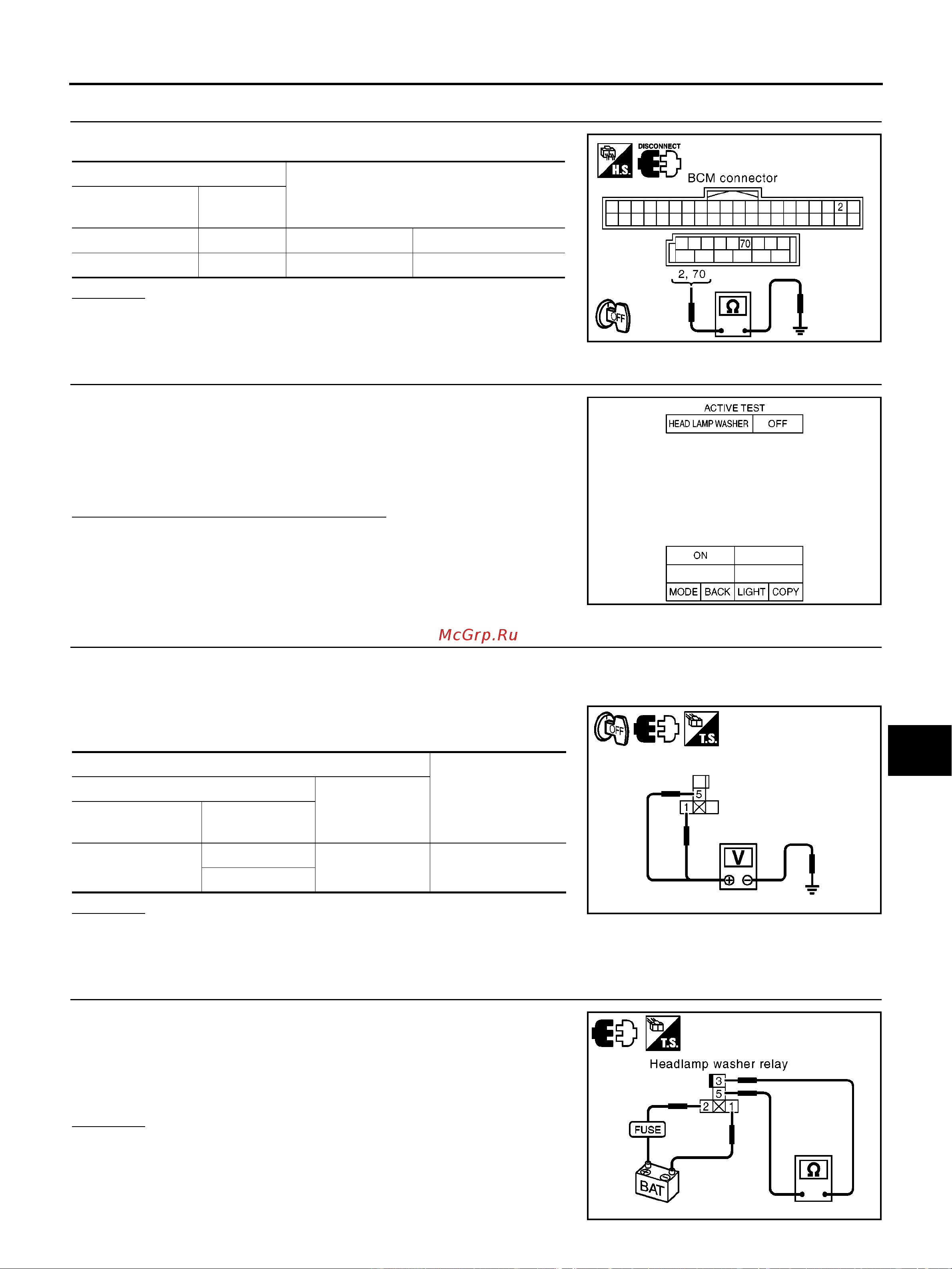

4. CHECK BCM GROUND CIRCUIT
Check continuity between BCM harness connector and ground.
OK or NG
OK >> GO TO 5.
NG >> Check harness ground circuit.
5. ACTIVE TEST
1. Select “BCM” on CONSULT-II. Select “ACTIVE TEST” on
“SELECT DIAG MODE” screen.
2. Select “HEAD LAMP WASHER” on “SELECT TEST ITEM”
screen.
3. Touch “ON” screen.
Does headlamp washer operate normally?
YES >> GO TO 12.
NO >> GO TO 6.
6. CHECK POWER SUPPLY CIRCUIT TO HEADLAMP WASHER RELAY
1. Turn ignition switch OFF.
2. Remove headlamp washer relay.
3. Check voltage between headlamp washer relay harness con-
nector and ground.
OK or NG
OK >> GO TO 7.
NG >> Repair harness or connector.
7. CHECK HEADLAMP WASHER RELAY
1. Apply battery voltage to between headlamp washer relay termi-
nal 1 and 2.
2. Check continuity between terminal 3 and 5.
OK or NG
OK >> GO TO 8.
NG >> Replace headlamp washer relay.
Terminals
Continuity
Connector
Terminal
(Wire color)
M57 2 Ground Yes
M59 70 Ground Yes
MKIB0353E
SKIB6240E
Terminal
Voltage
(+)
(-)
Headlamp washer
relay connector
Terminal
M19
1
Ground Battery voltage
5
MKIB2304E
3 – 5 : Continuity should exist.
MKIB2007E
