WW-50

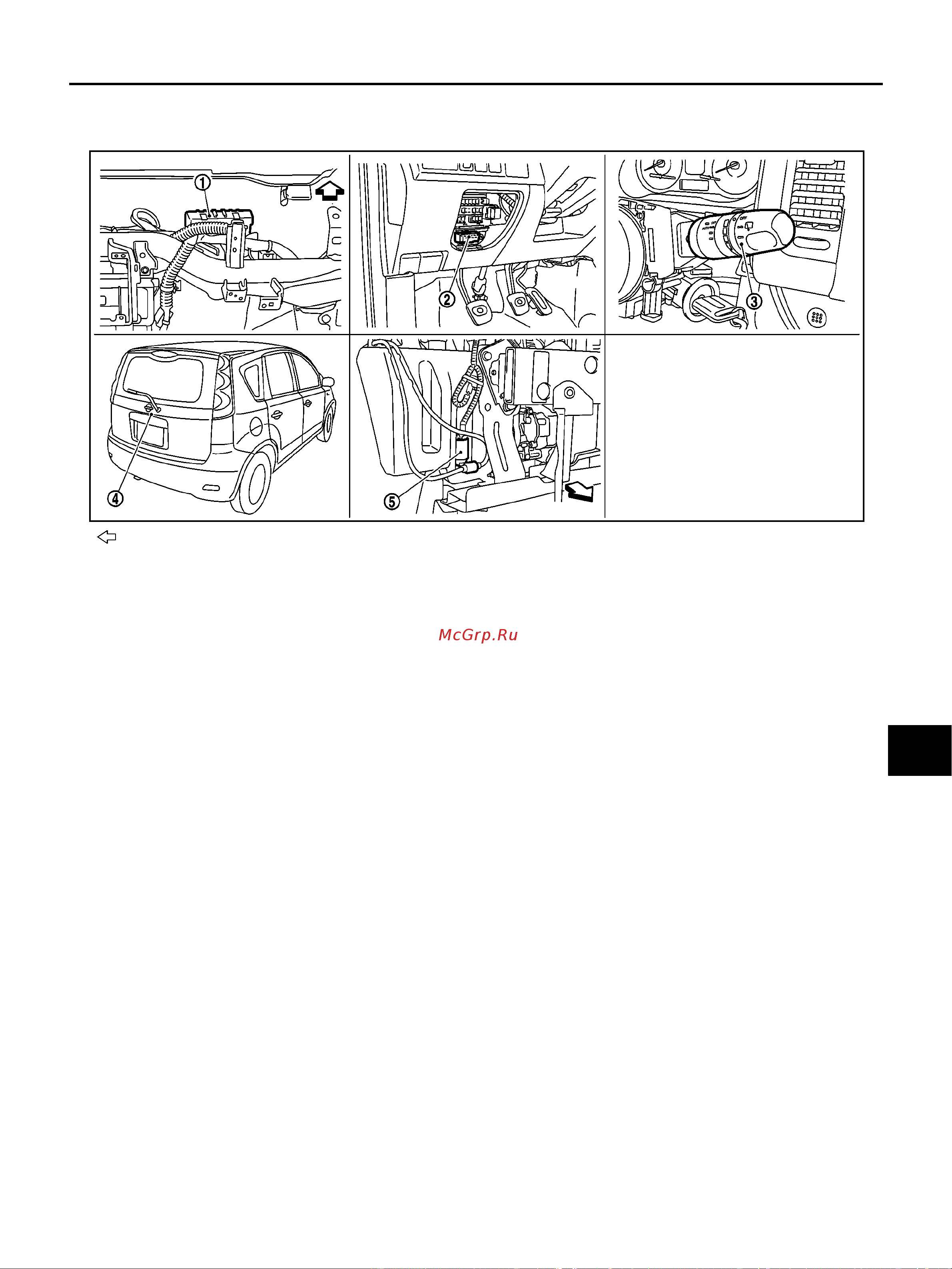

REAR WIPER AND WASHER SYSTEM
Ground is supplied
● to rear wiper motor terminal 3
● through body grounds B13, B28, B38 and B48.
With power and ground supplied, the rear wiper motor operates.
INTERMITTENT OPERATION
The rear wiper motor operates the wiper arms at low speed approximately every 7 seconds.
When wiper switch is in the rear wiper INT position, BCM detect rear wiper INT signal by BCM wiper switch
reading function (Refer to WW-8, "
COMBINATION SWITCH READING FUNCTION" ).
BCM operate rear wiper motor, power supplied
● through BCM terminal 71.
● to rear wiper motor terminal 1
Ground is supplied.
● to rear wiper motor terminal 3
● through body ground B13, B28, B38 and B48.
The wiper motor operates at intermittent.
AUTO STOP OPERATION
With rear wiper switch turned OFF, rear wiper motor will continue to operate until wiper arm reaches rear wiper
stopper.
WASHER OPERATION
When rear wiper switch is pushed to WASH position,
Power is supplied.
● through combination switch terminal 11
● to washer motor terminal 2.
Ground is supplied
● to washer motor terminal 1
● to combination switch terminals 12 and 13, and
● through body grounds M21 and M66.
With power and ground supplied, the rear washer motor is operated, and at the same time,
When the wiper switch is pushed to the WASH position for 1 second or more, BCM reads combination switch
condition (Refer to WW-8, "
COMBINATION SWITCH READING FUNCTION" ), rear wiper motor is operated
by BCM, and the rear wiper motor operates approximately 3 times after wiper switch is released.
REAR WIPER REVERSE RANGE OPERATION (IF AUTO WIPER IS EQUIPPED)
● When front wiper is active in auto operation with shift in reverse position, front and rear wiping action is
synchronous. If front wiper becomes continuous, the rear wiper will intermittent, wiping every 7 seconds.
● When shift is in reverse position then front wiper switch toggle from OFF to AUTO, rear wiping action will
occur once.
● When front wiper switch is in auto position with shift is in reverse position, if front washer pull more than
0.4second, front wiper and rear wiper once.
COMBINATION SWITCH READING FUNCTION
Refer to WW-8, "COMBINATION SWITCH READING FUNCTION" .
CAN Communication
BKS0012Q
SYSTEM DESCRIPTION
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
CAN Communication Unit
BKS0012R
Refer to LAN-27, "CAN Communication Unit" .
Содержание
- K electrical p.1
- Contents p.1
- Wiper washer horn p.1
- Sectio p.1
- Maintenance information p.3
- Lhd models p.3
- Rhd models p.3
- Precautions for supplemental restraint system srs air bag and seat belt pre tensioner p.3
- Precautions for procedures without cowl top cover p.3
- Precautions p.3
- Front wiper and washer system p.4
- To bcm terminals 74 and 79 p.4
- Through 40a fusible link letter j located in fuse and fusible link box p.4
- Through 20a fuse no 8 located in the ipdm e r p.4
- Through 20a fuse no 1 and 62 located in the ipdm e r p.4
- System description p.4
- Power is supplied at all times p.4
- Outline p.4
- Ipdm e r operates wiper motor according to can communication signals from bcm p.4
- Front wiper hi lo relay and front wiper main relay are built into ipdm e r p.4
- Components parts and harness connector location p.4
- Bcm controls front wiper lo hi and int intermittent operation p.4
- Wiper switch combination switch is composed of a combination of 5 output terminals and 5 input termi nals terminal combination status is read by bcm when switch is turned on p.4
- To ipdm e r cpu p.4
- To front wiper main relay p.4
- Low speed wiper operation p.5
- Intermittent operation p.5
- High speed wiper operation p.5
- Front wiper and washer system p.5
- When the front wiper switch is in mist position low speed wiper operation cycles once and then stops p.6
- Intermittent operation dial position 3 on continuity exists between combination switch output 4 and input 2 bcm determines front wiper intermittent operation delay interval from wiper intermittent dial position 1 and vehicle speed and sends wiper request signal int to ipdm e r p.6
- Intermittent operation dial position 2 on continuity exists between combination switch output 5 and input 1 p.6
- Intermittent operation dial position 1 on continuity exists between combination switch output 3 and input 1 p.6
- Front wiper and washer system p.6
- From terminal 23 of the ipdm e r p.6
- From light and rain sensor terminal 2 p.6
- Example for wiper intermittent dial position 1 using combination switch reading function bcm detects on off status of intermittent operation dial posi tions 1 2 and 3 when combination switch status is as listed below bcm determines that it is wiper intermittent dial position 1 p.6
- With wiper switch turned off wiper motor will continue to operate until wiper arms reach stop position when wiper arms are not located at stop position with wiper switch off power is supplied p.6
- Auto wiper operation models with light and rain sensor p.6
- Wiper intermittent dial position setting p.6
- Auto stop operation p.6
- When front auto wiper switch is toggled to auto position light and rain sensor equipped bcm reads the cur rent combination switch condition position refer to ww 8 combination switch reading function and change light and rain sensor into 4stages of wiper sensitivity level when light and rain sensor detect rain with ignition switch on and auto wiper switch in auto position the front wiper will wipe the screen light and rain sensor will not react if no raindrop is detected p.6
- To front wiper motor terminal 2 p.6
- To front wiper motor terminal 1 in order to continue wiper motor operation at low speed ground is supplied p.6
- To bcm terminal 63 bcm send wiper request signal to ipdm e r with can communication line ipdm e r operate front wiper change the wiper speed by rainfall the light and rain sensor sensitivity is controlled by the wiper volume switch combined with front wiper and washer switch and bcm p.6
- Through body grounds e28 and e44 when wiper arms reach stop position front wiper motor terminals 2 and 5 are connected then the ipdm e r sends auto stop operation signal to bcm with can communication line when bcm receives auto stop operation signal bcm sends wiper stop signal to ipdm e r with can commu nication line ipdm e r stops wiper motor wiper motor will then stop wiper arms at the stop position p.6
- Mist operation p.6
- Washer operation p.7
- Front wiper and washer system p.7
- Fail safe function p.7
- Operation description p.8
- Front wiper and washer system p.8
- Combination switch reading function description p.8
- Bcm operation table of combination switches p.8
- Sample operation when wiper switch is turned to low position p.9
- Operation mode p.9
- Front wiper and washer system p.9
- Intermittent operation p.10
- Front wiper and washer system p.10
- System description p.11
- Refer to lan 27 can communication unit p.11
- Front wiper and washer system p.11
- Can controller area network is a serial communication line for real time application it is an on vehicle mul tiplex communication line with high data communication speed and excellent error detection ability many elec tronic control units are equipped onto a vehicle and each control unit shares information and links with other control units during operation not independent in can communication control units are connected with 2 communication lines can h line can l line allowing a high rate of information transmission with less wiring each control unit transmits receives data but selectively reads required data only p.11
- Can communication unit p.11
- Can communication p.11
- Wiring diagram wiper p.13
- Front wiper and washer system p.13
- Front wiper and washer system p.15
- Terminals and reference values for bcm p.16
- Front wiper and washer system p.16
- Front wiper and washer system p.17
- Front wiper and washer system p.18
- Front wiper and washer system p.19
- Turn wiper dial position to 4 except when checking waveform or voltage of wiper dial position wiper dial position can be confirmed on consult ii refer to ww 24 data monitor p.20
- Reference values for bcm input p.20
- Front wiper and washer system p.20
- Check combination switch system terminal waveform under the loaded condition with lighting switch turn signal switch and wiper switch off not to be fluctuated by overloaded p.20
- Caution p.20
- Front wiper and washer system p.21
- Front wiper and washer system p.22
- Terminals and reference values for ipdm e r p.23
- Front wiper and washer system p.23
- Consult ii function bcm p.24
- Consult ii can display each diagnostic item using the diagnostic modes shown following p.24
- Consult ii basic operation p.24
- Active test p.24
- Work support p.24
- Refer to gi 36 consult ii start procedure p.24
- Front wiper and washer system p.24
- Data monitor p.24
- Refer to gi 36 consult ii start procedure p.25
- Note perform monitoring of ipdm e r data with ignition switch on when ignition switch is at acc the display may not be correct p.25
- Front wiper and washer system p.25
- Data monitor p.25
- Consult ii function ipdm e r p.25
- Consult ii can display each diagnostic item using the diagnostic modes shown following p.25
- Consult ii basic operation p.25
- Active test p.25
- Front wiper and washer system p.26
- Diagnosis chart by symptom p.26
- Front wiper and washer system p.27
- Caution p.28
- Turn ignition switch off 2 disconnect bcm connector 3 check voltage between bcm harness connector and ground p.28
- Refer to ww 13 wiring diagram wiper ok or ng p.28
- Power supply routing circuit p.28
- Ok or ng p.28
- If fuse is blown be sure to eliminate cause of problem before installing new fuse refer to pg 4 p.28
- Harness for open ground circuit p.28
- Front wiper does not operate p.28
- Front wiper and washer system p.28
- During ipdm e r fail safe control front wipers may not operate refer to pg 18 can communi cation line control in pg ipdm e r to make sure that it is not in fail safe status p.28
- Disconnect ipdn e r harness connector 2 check continuity between ipdm e r harness connector and ground p.28
- Check ipdm e r ground circuit p.28
- Check harness for open or short between fuse fusible link and bcm p.28
- Check fuse and fusible link for blown out p.28
- Check fuse p.28
- Check bcm power supply circuit p.28
- Front wiper and washer system p.29
- Turn ignition switch off 2 disconnect front wiper motor connector 3 check continuity between front wiper motor harness connector a lhd models or b rhd models and ground p.30
- Repair harness or connector p.30
- Ok or ng p.30
- Front wiper and washer system p.30
- Disconnect ipdm e r connector 2 check continuity between ipdm e r harness connector a and front wiper motor harness connector b lhd models or c rhd models p.30
- Check ground circuit p.30
- Check front wiper circuit p.30
- Check continuity between ipdm e r harness connector a and ground p.30
- Front wiper does not return to stop position after front wiper operate for 10 seconds they stop for 20 seconds and after repeating the operations five times they become inoperative p.31
- Front wiper and washer system p.31
- Front wiper and washer system p.32
- Only front wiper low does not operate p.33
- Front wiper and washer system p.33
- Front wiper and washer system p.34
- Check front wiper motor circuit p.34
- Check continuity between ipdm e r harness connector a and ground p.34
- Turn ignition switch off 2 disconnect ipdm e r connector and front wiper motor connector 3 check continuity between ipdm e r harness connector a and front wiper motor harness b lhd models or c rhd models p.34
- Repair harness or connector p.34
- Ok or ng p.34
- Only front wiper hi does not operate p.35
- Front wiper and washer system p.35
- Turn ignition switch off 2 disconnect ipdm e r connector and front wiper motor connector 3 check continuity between ipdm e r harness connector a and front wiper motor harness connector b lhd models or c rhd models p.36
- Repair harness or connector p.36
- Ok or ng p.36
- Front wiper and washer system p.36
- Check front wiper motor circuit p.36
- Check continuity between ipdm e r harness connector a and ground p.36
- Only front wiper intermittent does not operate p.37
- Front wiper and washer system p.37
- Only front wiper auto dose not operate p.38
- Front wiper and washer system p.38
- Front wiper and washer system p.39
- Front wiper interval time is not controlled by vehicle speed p.40
- Front wiper intermittent operation switch position cannot be adjusted p.40
- Front wiper and washer system p.40
- Wiper does not wipe when front washer operates p.41
- Front wiper does not stop p.41
- Front wiper and washer system p.41
- Removal and installation of front wiper arms adjustment of wiper arms stop location p.42
- Removal p.42
- Installation p.42
- Front wiper and washer system p.42
- Adjustment p.42
- Removal and installation of front wiper drive assembly p.43
- Removal p.43
- Operate front wiper motor and stop at the auto stop position 2 remove wiper arms refer to ww 42 removal 3 remove cowl top cover refer to ei 12 cowl top p.43
- Lhd models p.43
- Front wiper and washer system p.43
- Rhd models p.43
- Washer nozzle adjustment p.44
- Installation p.44
- Front wiper and washer system p.44
- Washer tube routing p.45
- Remove cowl top cover refer to ei 12 cowl top 2 remove washer tube 3 while pressing pawl a on the reverse side of front washer noz zle 1 remove front washer nozzle from cowl top cover p.45
- Removal and installation of front washer nozzle p.45
- Removal p.45
- Note the following and installation is the reverse order of removal caution install left and right nozzle correctly incorrect side nozzle can be installed but spray points wrong p.45
- Installation p.45
- Front wiper and washer system p.45
- Installation p.46
- Inspection of front wiper and washer switch circuit p.46
- Inspection for washer nozzle p.46
- Front wiper and washer system p.46
- Check valve inspection p.46
- Removal and installation of washer tank p.46
- Removal and installation of front wiper and washer switch p.46
- Removal p.46
- Removal and installation of light and rain sensor p.47
- Removal and installation of front washer motor p.47
- Removal p.47
- Installation of rain sensor p.47
- Installation p.47
- Front wiper and washer system p.47
- Installation of light and rain sensor housing p.48
- Front wiper and washer system p.48
- System description p.49
- Rear wiper operation p.49
- Rear wiper and washer system p.49
- Outline p.49
- Components parts and harness connector location p.49
- Washer operation p.50
- System description p.50
- Rear wiper reverse range operation if auto wiper is equipped p.50
- Rear wiper and washer system p.50
- Intermittent operation p.50
- Combination switch reading function p.50
- Can communication unit p.50
- Can communication p.50
- Auto stop operation p.50

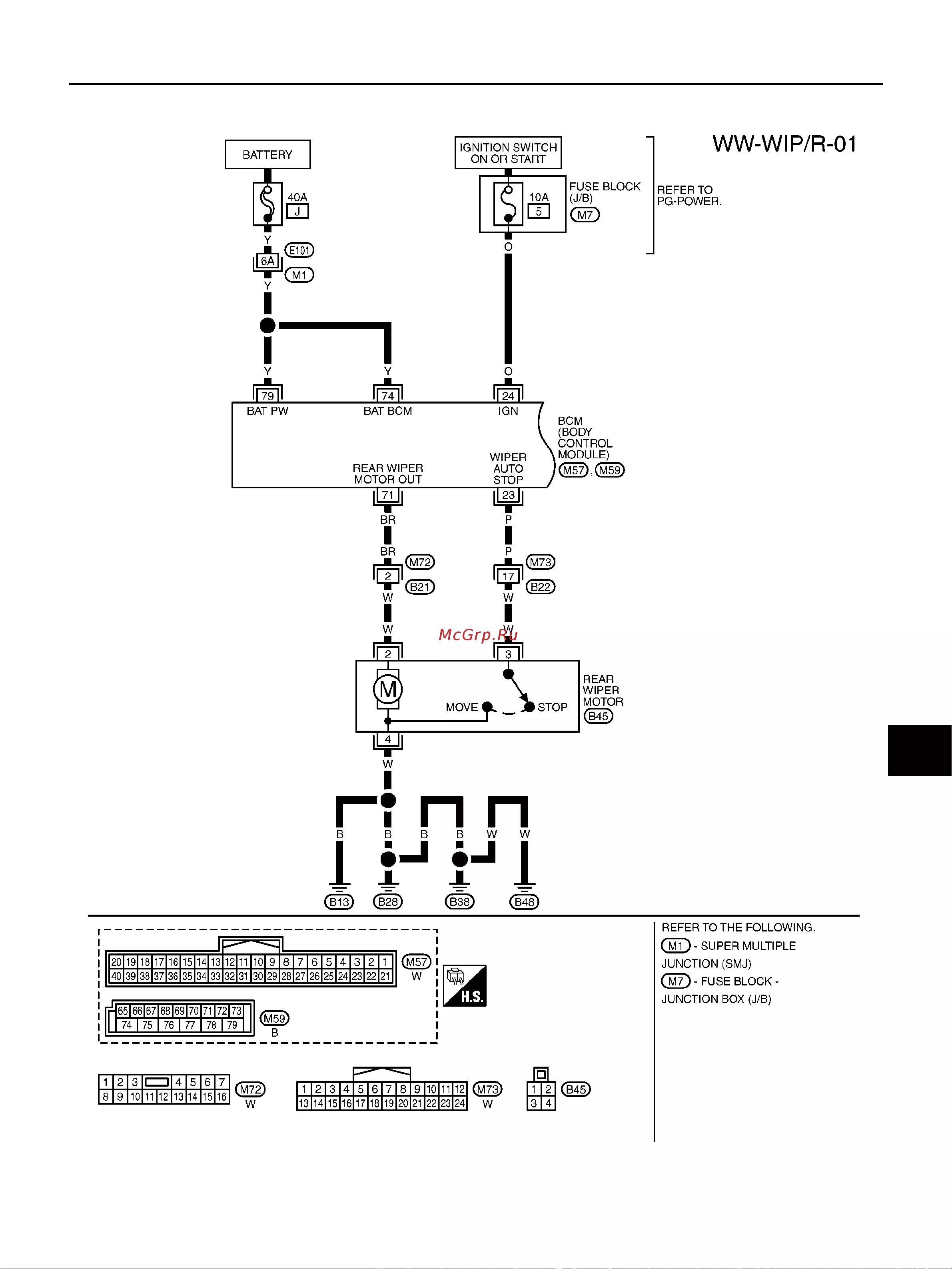

- Wiring diagram wip r p.51
- Without rain sensor p.51
- Rear wiper and washer system p.51
- With rain sensor p.53
- Schematic p.53
- Rear wiper and washer system p.53
- Rear wiper and washer system p.55
- Terminals and reference values for bcm p.57
- Rear wiper and washer system p.57
- Rear wiper and washer system p.58
- Rear wiper and washer system p.59
- Turn wiper dial position to 4 except when checking waveform or voltage of wiper dial position wiper dial position can be confirmed on consult ii refer to ww 24 data monitor p.60
- Reference values for bcm input p.60
- Rear wiper and washer system p.60
- Check combination switch system terminal waveform under the loaded condition with lighting switch turn signal switch and wiper switch off not to be fluctuated by overloaded p.60
- Caution p.60
- Rear wiper and washer system p.61
- Terminals and reference values for ipdm e r p.62
- Rear wiper and washer system p.62
- Refer to ww 24 consult ii function bcm p.63
- Rear wiper and washer system p.63
- Consult ii function bcm p.63
- Diagnosis chart by symptom p.64
- Rear wiper and washer system p.64
- Turn ignition switch off 2 disconnect bcm connector 3 check voltage between bcm harness connector and ground p.65
- Refer to ww 51 wiring diagram wip r without light and rain sensor ww 54 wiring diagram wip r with light and rain sensor ok or ng p.65
- Rear wiper does not operate p.65
- Rear wiper and washer system p.65
- Ok or ng p.65
- If fuse is blown be sure to eliminate cause of malfunction before installing new fuse or fusible link refer to pg 4 power supply routing circuit p.65
- Check harness ground circuit p.65
- Check harness for open or short between fuse fusible link and bcm p.65
- Check fuses p.65
- Check fuse and fusible link for blown out p.65
- Check continuity between bcm harness connector and ground p.65
- Check bcm power supply circuit p.65
- Check bcm ground circuit p.65
- Rear wiper and washer system p.66
- Rear wiper and washer system p.67
- Rear wiper does not return to stop position p.67
- Rear wiper and washer system p.68
- Only rear wiper on does not operate p.68
- Wiper does not wipe when rear washer operates p.69
- Removal and installation of rear wiper arm adjustment of wiper arm stop location p.69
- Removal p.69
- Rear wiper and washer system p.69
- Only rear wiper intermittent does not operate p.69
- Installation p.69
- Removal and installation of rear wiper motor p.70
- Removal p.70
- Rear wiper and washer system p.70
- Installation p.70
- Rear washer tube layout p.71
- Rear washer nozzle adjustment p.71
- Installation p.71
- Removal and installation of rear washer nozzle p.71
- Removal p.71
- Rear wiper and washer system p.71
- Removal and installation of rear wiper and washer tank p.72
- Removal and installation of rear wiper and washer switch p.72
- Removal and installation of rear wiper and washer pump p.72
- Rear wiper and washer system p.72
- Inspection of rear wiper and washer switch circuit p.72
- Check valve inspection p.72
- System description p.73
- Outline p.73
- Headlamp washer p.73
- Components parts and harness connector location p.73
- Headlamp washer p.74
- Can communication unit p.74
- Can communication p.74
- Headlamp washer operation p.74
- Wiring diagram hlc p.75
- Headlamp washer p.75
- Terminals and reference values for bcm p.77
- Headlamp washer p.77
- Headlamp washer p.78
- Headlamp washer p.79
- Turn wiper dial position to 4 except when checking waveform or voltage of wiper dial position wiper dial position can be confirmed on consult ii refer to ww 24 data monitor p.80
- Reference values for bcm input p.80
- Headlamp washer p.80
- Check combination switch system terminal waveform under the loaded condition with lighting switch turn signal switch and wiper switch off not to be fluctuated by overloaded p.80
- Caution p.80
- Headlamp washer p.81
- Terminals and reference values for ipdm e r p.82
- Headlamp washer p.82
- Consult ii function bcm p.83
- Refer to ww 25 consult ii function ipdm e r p.83
- Refer to ww 24 consult ii function bcm p.83
- Headlamp washer p.83
- Diagnosis chart by symptom p.83
- Consult ii function ipdm e r p.83
- Ok or ng p.84
- If fuse is blown be sure to eliminate cause of problem before installing new fuse or fusible link refer to pg 4 power supply routing circuit p.84
- Headlamp washer does not operate p.84
- Headlamp washer p.84
- Harness for open ground circuit p.84
- Disconnect ipdm e r harness connector 2 check continuity between ipdm e r harness connector and ground p.84
- Check ipdm e r ground circuit p.84
- Check harness for open or short between fuse fusible link and bcm p.84
- Check fuse and fusible link for blown out p.84
- Check fuse p.84
- Check bcm power supply circuit p.84
- Turn ignition switch off 2 disconnect bcm connector 3 check voltage between bcm harness connector and ground p.84
- Refer to ww 75 wiring diagram hlc ok or ng p.84
- Headlamp washer p.85
- Headlamp washer p.86
- Headlamp washer p.87
- Removal and installation for washer tank p.88
- Removal and installation for headlamp washer nozzle p.88
- Removal and installation for headlamp washer motor p.88
- Removal p.88
- Installation p.88
- Headlamp washer tube layout p.88
- Headlamp washer p.88
- Wiring diagram horn p.89
- Removal and installation p.90
- Removal p.90
- Installation p.90
- Wiring diagram p sckt p.91
- Power socket p.91
- Removal p.92
- Power socket p.92
- Removal and installation of luggage room power socket p.92
- Removal and installation of console power socket p.92
- Removal and installation p.92
- Installation p.92
Похожие устройства
-
Nissan Murano z50Руководство пользователя -
Nissan Murano z50Руководство пользователя ч2 -
Nissan Z50 (2002-2008)Руководство по эксплуатации -
Nissan NoteROAD WHEELS _ TYRES -
Nissan NotePOWER SUPPLY, GROUND _ CIRCUIT ELEMENTS -
Nissan NoteSTARTING _ CHARGING SYSTEM -
Nissan NoteSUPPLEMENTAL RESTRAINT SYSTEM _SRS_ -
Nissan NoteMAINTENANCE -
Nissan NoteMANUAL TRANSAXLE -
Nissan NoteSTEERING CONTROL SYSTEM -
Nissan NoteSEAT -
Nissan NotePOWER STEERING SYSTEM
Explore the functionality of the rear wiper and washer system, including intermittent operation, auto stop, and CAN communication for efficient vehicle performance.
