FRONT WIPER AND WASHER SYSTEM
WW-33
C
D
E
F
G
H
I
J
L
M
A
B
WW

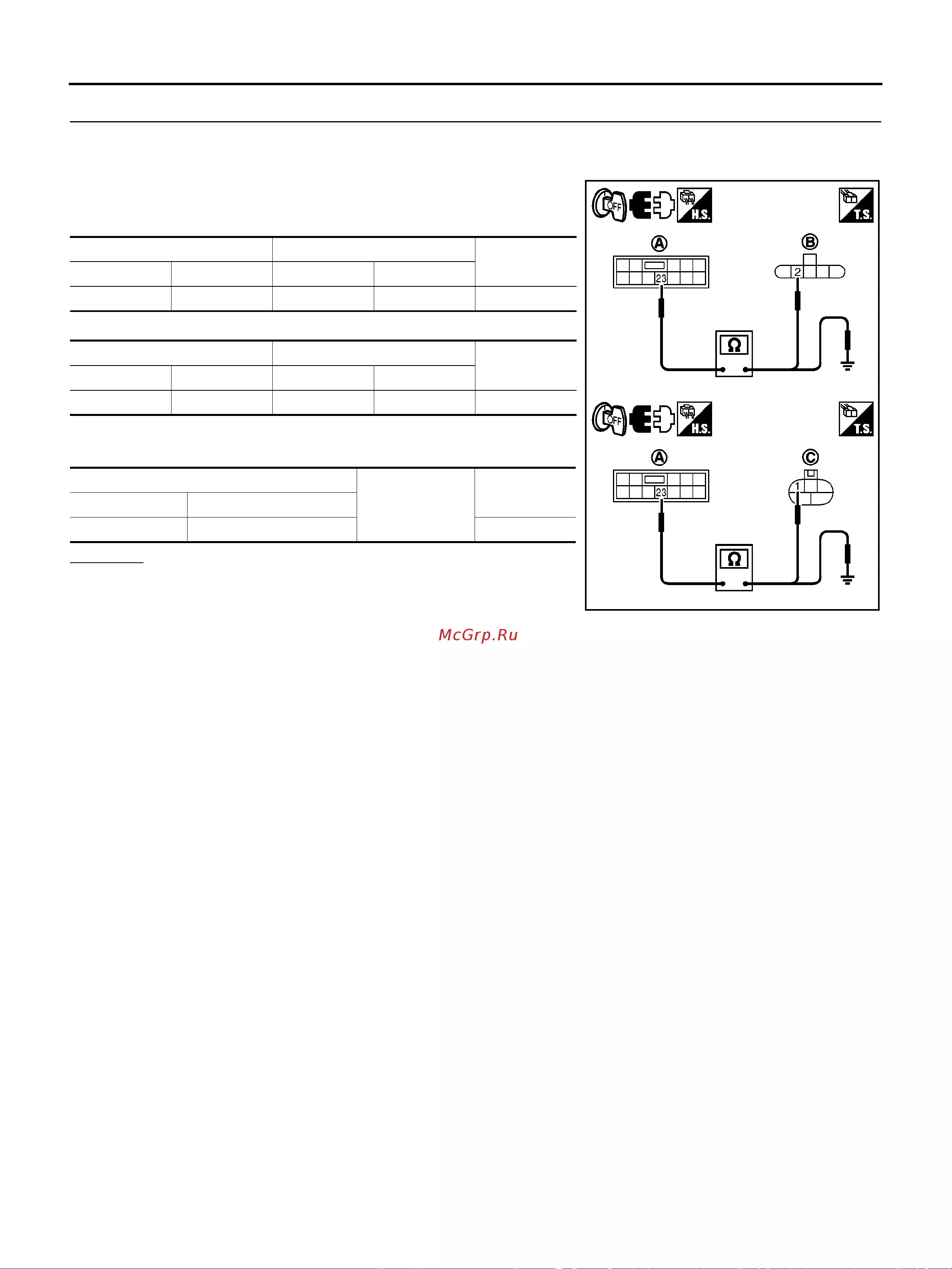

3. CHECK FRONT WIPER AUTO STOP CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R connector and wiper motor connector.
3. Check continuity between IPDM E/R harness connector (A) and
front wiper motor harness connector [B (LHD models) or C
(RHD models)].
LHD models
RHD models

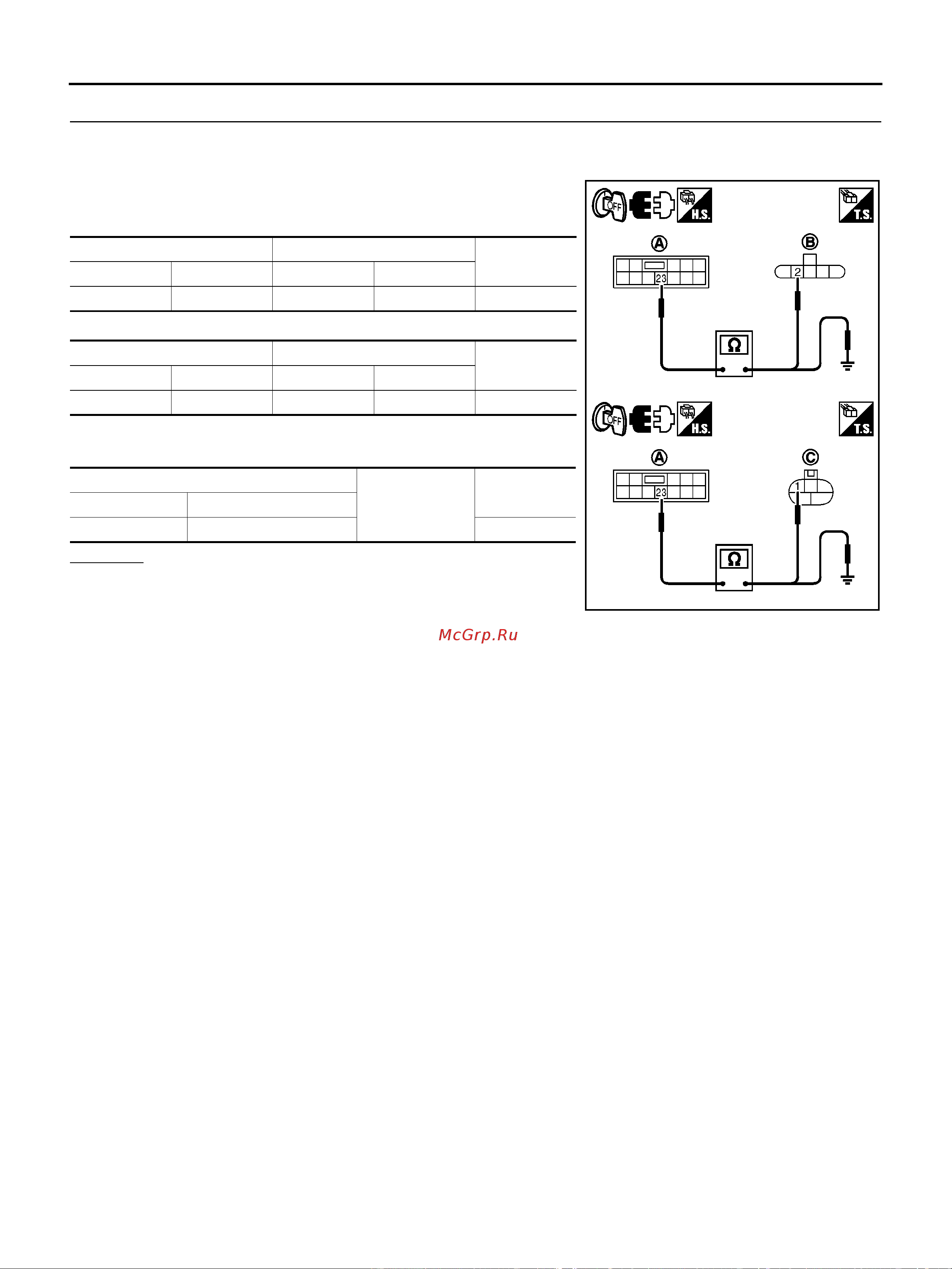

4. Check continuity between IPDM E/R harness connector (A) and
Ground.
OK or NG
OK >> Replace front wiper drive assembly. Refer to WW-43,
"Removal and Installation of Front Wiper Drive Assem-
bly" .
NG >> Repair harness or connector.
Only Front Wiper Low Does Not Operate
BKS001HN

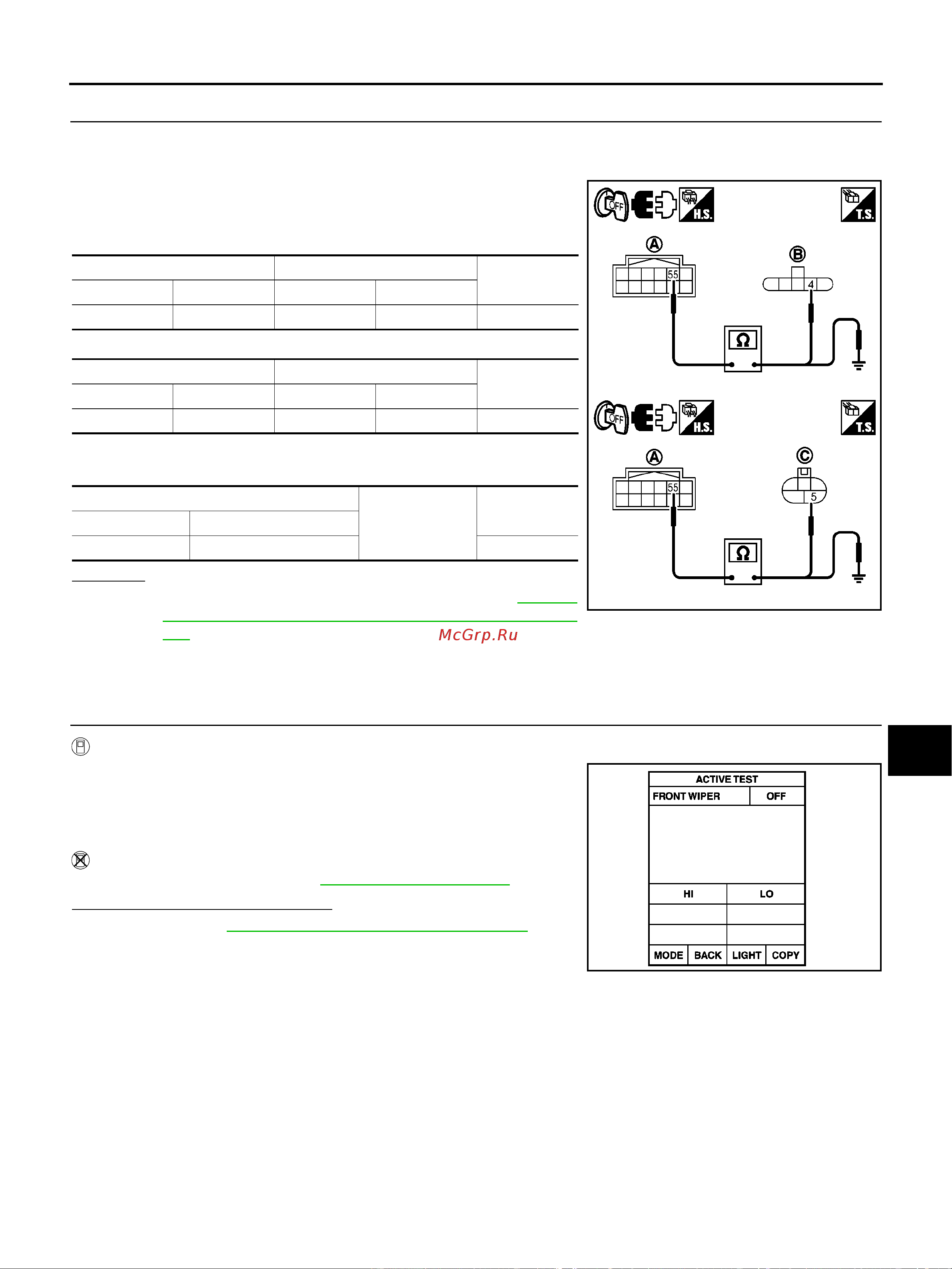

1. ACTIVE TEST
With CONSULT-ll
1. Select “IPDM E/R” on CONSULT-II, and select “ACTIVE TEST”
on “SELECT DIAG MODE” screen.
2. Select “FRONT WIPER” on “SELECT TEST ITEM” screen.
3. Touch “LO” screen.
Without CONSULT-ll
Start up auto active test. Refer to PG-22, "
Auto Active Test" .
Does front wiper operate normally?
YES >> Refer to LT-125, "Combination Switch Inspection" .
NO >> GO TO 2.
AB
Continuity
Connector Terminal Connector Terminal
E12 55 E39 4 Yes
AC
Continuity
Connector Terminal Connector Terminal
E12 55 E66 5 Yes
A
Ground
Continuity
Connector Terminal
E12 55 No
MKIB2227E
SKIA3486E
