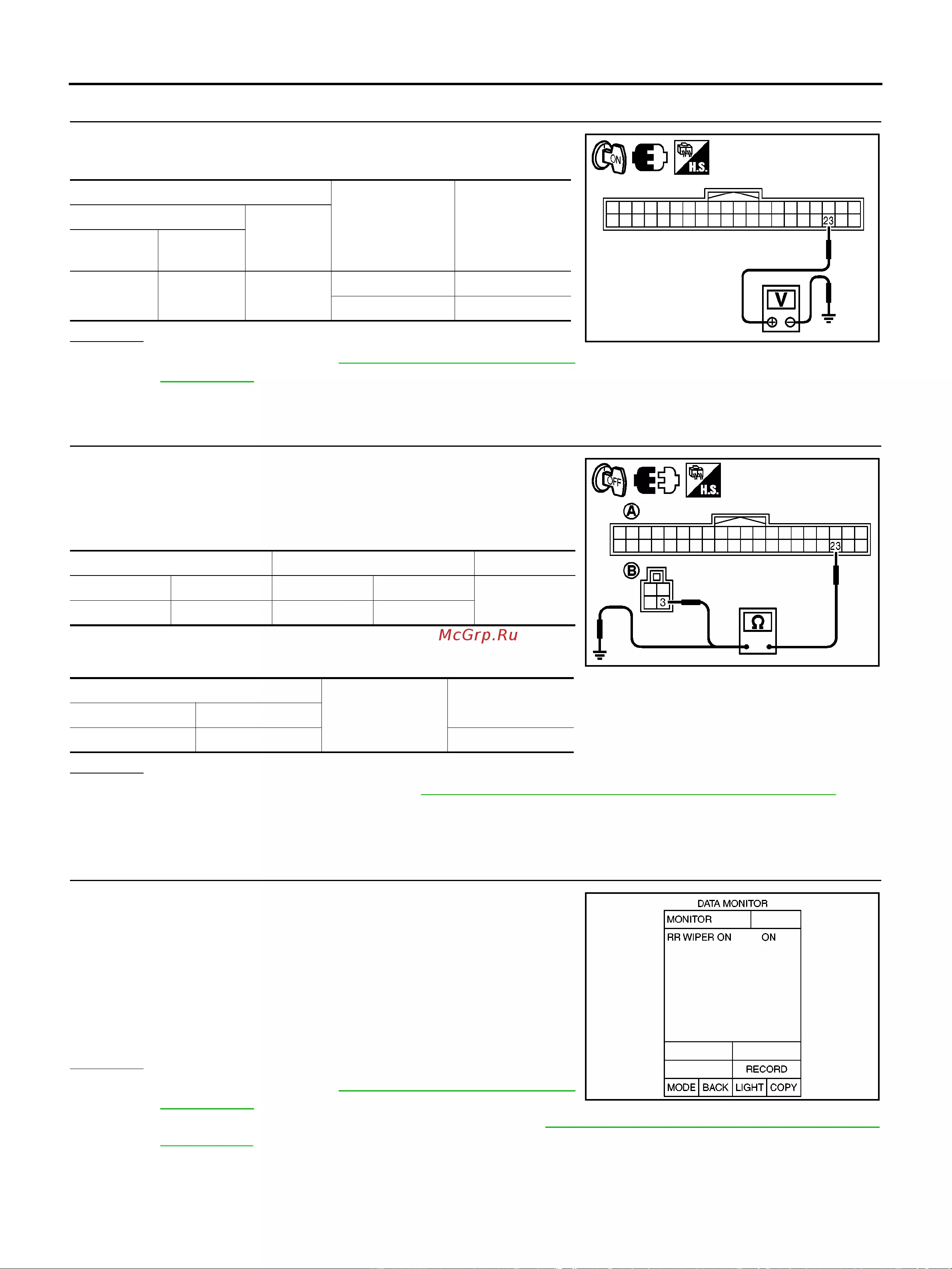

WW-68
REAR WIPER AND WASHER SYSTEM
2. CHECK REAR WIPER MOTOR AUTO STOP SIGNAL
Check voltage between BCM harness connector terminal and
ground while rear wiper motor is stopped and while it is operating.
OK or NG
OK >> Replace BCM. Refer to BCS-17, "Removal and Installa-
tion of BCM" .
NG >> GO TO 3.
3. CHECK REAR WIPER AUTO STOP CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM connector and rear wiper motor connector.
3. Check continuity between BCM harness connector (A) and rear
wiper motor harness connector (B).
4. Check continuity between BCM harness connector (A) and
ground.
OK or NG
OK >> Replace rear wiper motor. Refer to WW-70, "Removal and Installation of Rear Wiper Motor" .
NG >> Repair harness or connector.
Only Rear Wiper ON Does Not Operate
BKS001HI

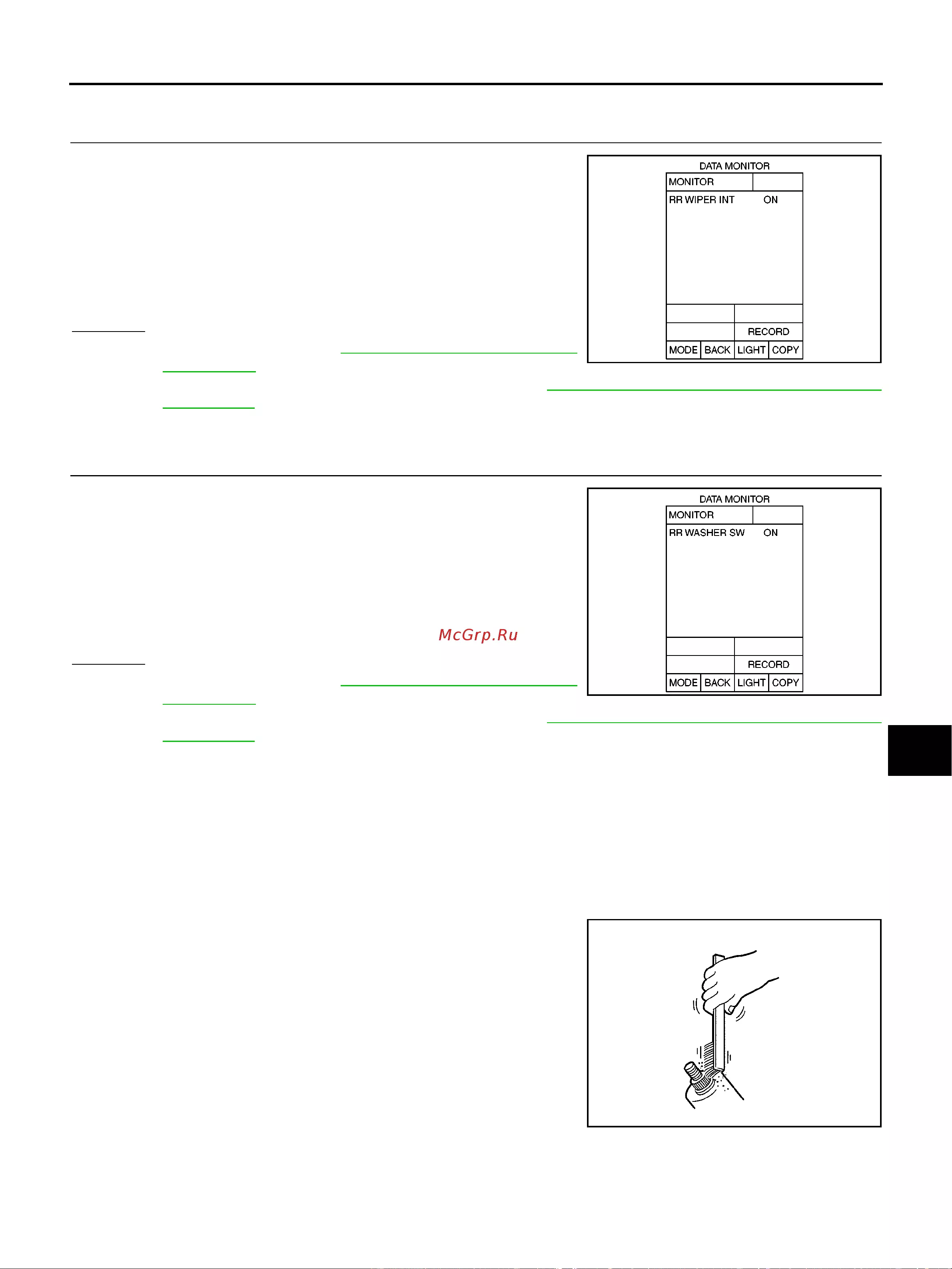

1. CHECK COMBINATION SWITCH INPUT SIGNAL
1. Select “BCM” on CONSULT-II.
2. Select “WIPER” on “SELECT TEST ITEM” screen. Then select
“DATA MONITOR” on “SELECT DIAG MODE” screen.
3. Make sure “RR WIPER ON” turns ON-OFF according to opera-
tion of combination switch (wiper switch).
OK or NG
OK >> Replace BCM. Refer to BCS-17, "Removal and Installa-
tion of BCM" .
NG >> Check combination switch (wiper switch). Refer to WW-8, "
COMBINATION SWITCH READING
FUNCTION" .
Terminal
Condition Voltage
(+)
(-)
BCM
connector
Terminal
M57 23 Ground
Wiper stopped Battery voltage
Wiper operating Approx. 0V
MKIB2235E
A B Continuity
Connector Terminal Connector Terminal
Yes
M57 23 B45 3
A
Ground
Continuity
Connector Terminal
M57 23 No
MKIB2236E
When rear wiper switch is in
ON position
: RR WIPER ON
SKIB6435E
