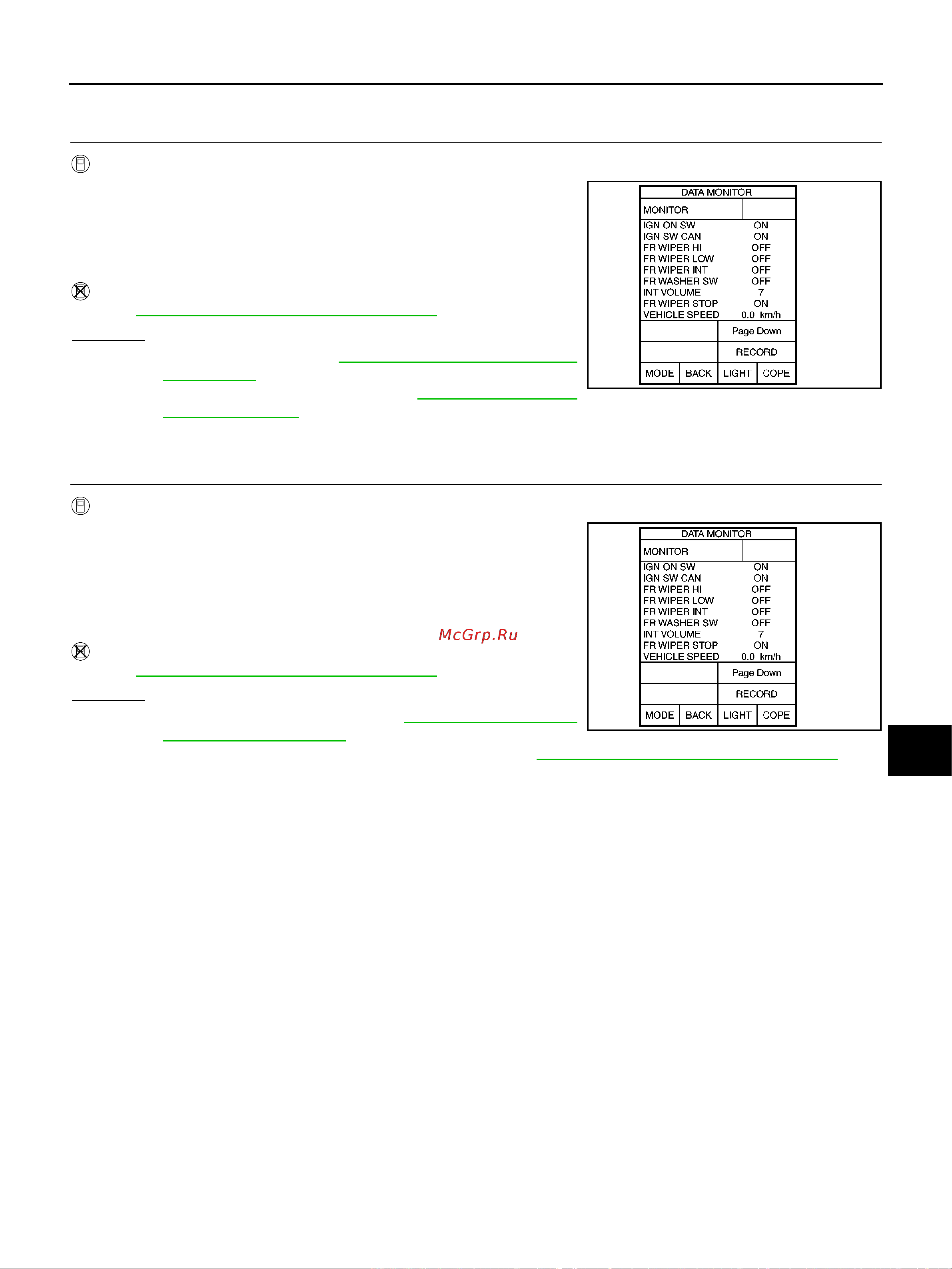

Wiper Does Not Wipe When Front Washer Operates
BKS001HS

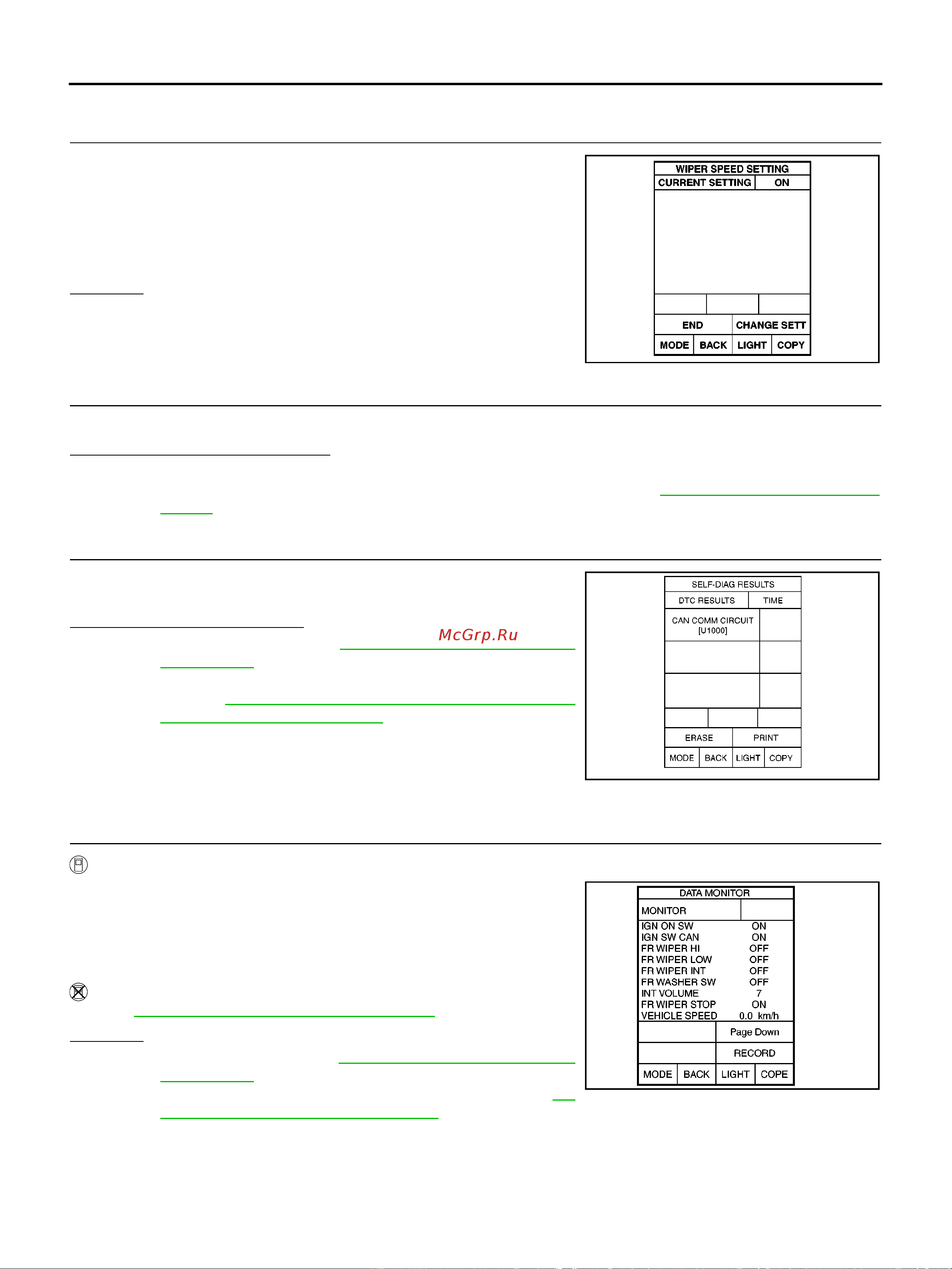

1. CHECK CIRCUIT BETWEEN COMBINATION SWITCH AND BCM
With CONSULT-ll
1. Select “BCM” on CONSULT-II, and select “WIPER” on “SELECT
TEST ITEM” screen.
2. Select “DATA MONITOR” on “SELECT DIAG MODE” screen.
Make sure that “FR WASHER SW” turns ON-OFF according to
front wiper switch operation.
Without CONSULT-ll
Refer to LT-125, "
Combination Switch Inspection" .
OK or NG
OK >> Replace BCM Refer to BCS-17, "Removal and Installa-
tion of BCM" .
NG >> Check front wiper switch. Refer to LT-125, "
Combination
Switch Inspection" .
Front Wiper Does Not Stop
BKS001HT

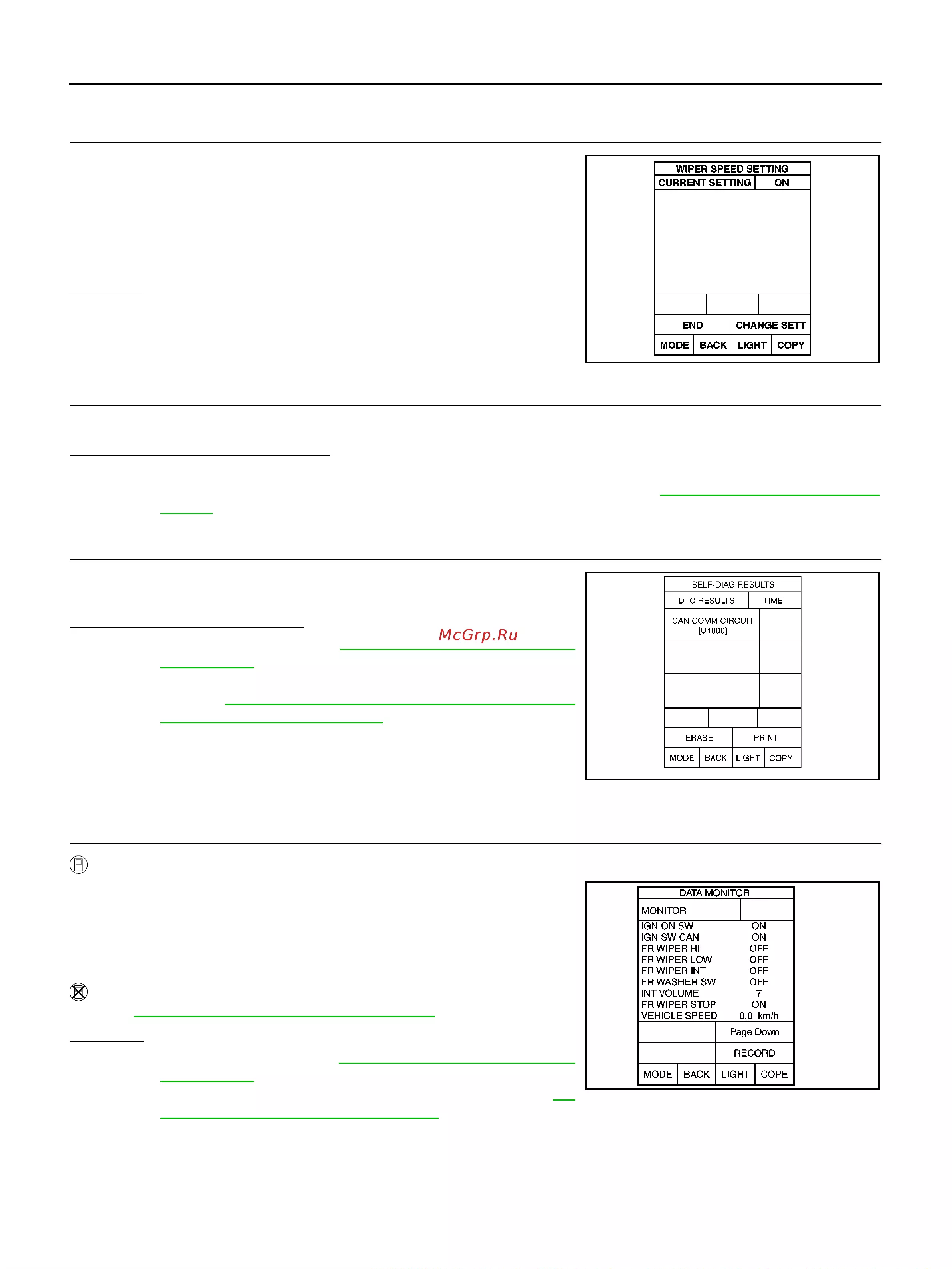

1. CHECK CIRCUIT BETWEEN COMBINATION SWITCH AND BCM
With CONSULT-ll
1. Select “BCM” on CONSULT-II, and select “WIPER” on “SELECT
TEST ITEM” screen.
2. Select “DATA MONITOR” on “SELECT DIAG MODE” screen.
Make sure that “FR WIPER INT”, “FR WIPER LOW”, “FR
WIPER HI”, and “FR WASHER SW” turns ON-OFF according to
front wiper switch operation.
Without CONSULT-ll
Refer to LT-125, "
Combination Switch Inspection" .
OK or NG
OK >> Replace IPDM E/R. Refer to PG-37, "Removal and
Installation of IPDM E/R" .
NG >> Check combination switch (wiper switch). Refer to LT-125, "
Combination Switch Inspection" .
