FRONT WIPER AND WASHER SYSTEM
WW-47
C
D
E
F
G
H
I
J
L
M
A
B
WW
4. Remove screws (A) and nut (B).
– : Vehicle front
5. Remove washer tube (2), and remove washer tank (1) from
vehicle.
INSTALLATION
Note the following, and installation is the reverse order of removal.
CAUTION:
After installation, add water up to the upper level of washer tank inlet, and check for water leaks.
Removal and Installation of Front Washer Motor
BKS001CA
REMOVAL
1. Remove fender protector (front) RH. Refer to EI-14, "FENDER PROTECTOR" .
2. Disconnect washer motor (1) connector and remove washer
tube.
3. Pull out front washer motor in direction shown by the arrow ( )
in the figure. Remove front washer motor from washer tank.
INSTALLATION
Note the following, and installation is the reverse order of removal.
CAUTION:
When installing washer motor, there should be no packing twists, etc.
Removal and Installation of Light and Rain Sensor
BKS001KS
REMOVAL
1. Remove inside mirror. Refer to GW-104, "INSIDE MIRROR" .
2. Remove clip and pawl.

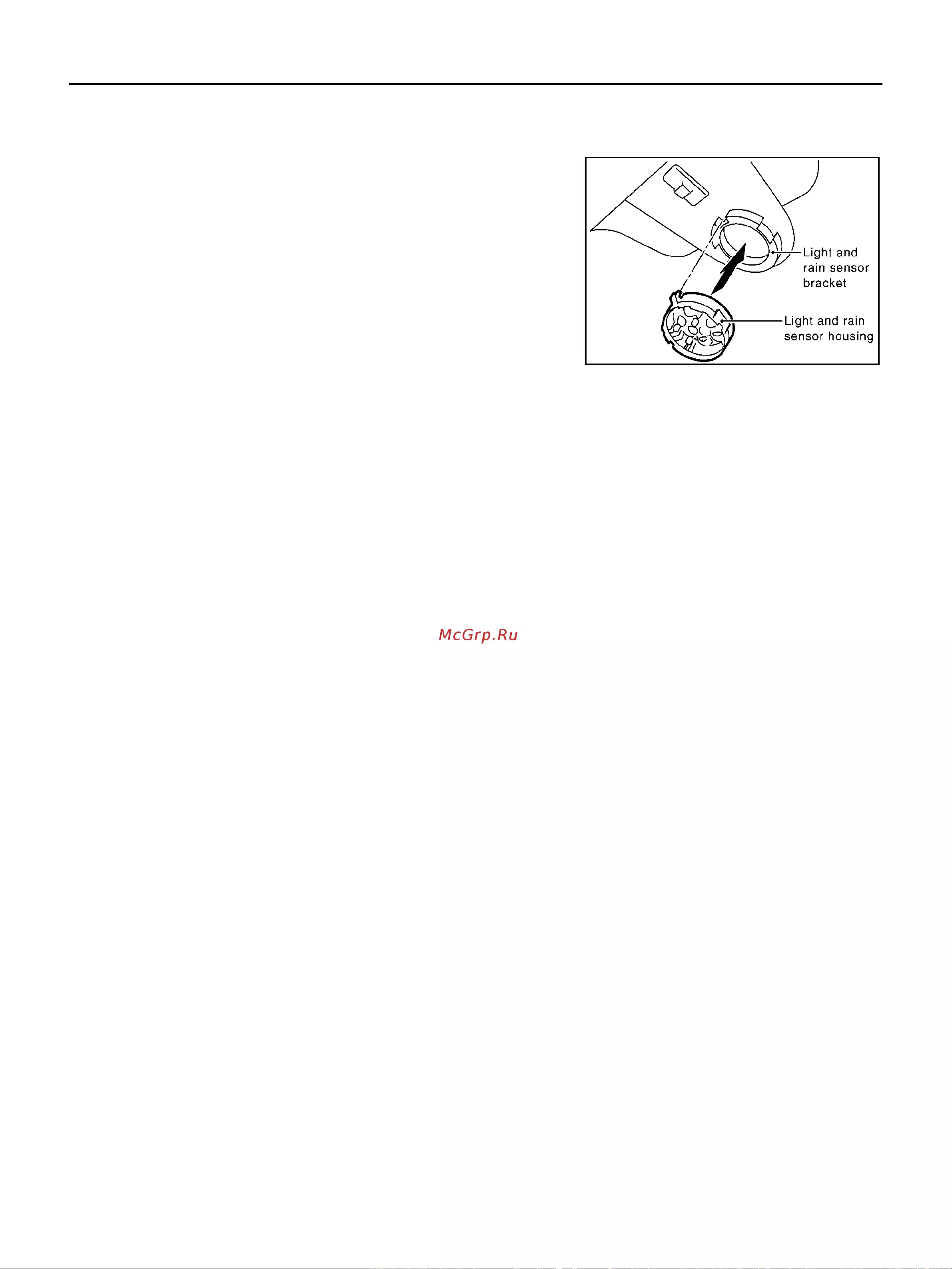

3. Pull out the light and rain sensor.
4. Remove light and rain sensor harness connector.
CAUTION:
Do not touch the electronic circuit board on rain sensor.
INSTALLATION OF RAIN SENSOR
Install in the reverse order of removal.
MKIB2239E
Washer tank mounting nut : 4.5 N·m (0.46 kg-m, 40 in-lb)
Washer tank mounting screws : 4.5 N·m (0.46 kg-m, 40 in-lb)
MKIB2261E
MKIB2028E
