FRONT WIPER AND WASHER SYSTEM
WW-35
C
D
E
F
G
H
I
J
L
M
A
B
WW

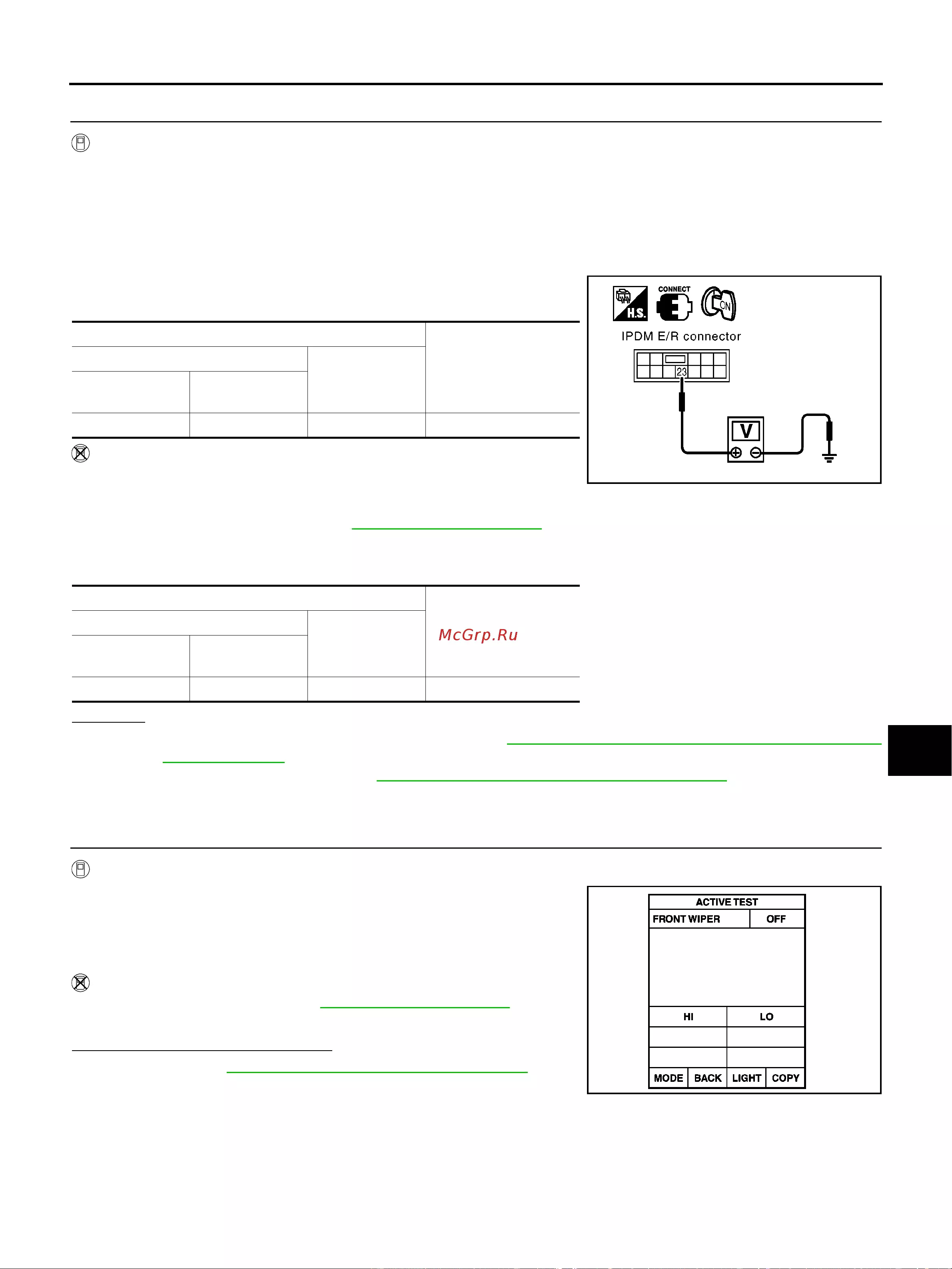

3. CHECK IPDM E/R
With CONSULT-ll
1. Connect IPDM E/R connector.
2. Turn ignition ON.
3. Select “IPDM E/R” on CONSULT-II, and select “ACTIVE TEST” on “SELECT DIAG MODE” screen.
4. Select “FRONT WIPER” on “SELECT TEST ITEM” screen.
5. Touch “LO” screen.
6. Check voltage between IPDM E/R harness connector terminal
and ground while front wiper LO is operating.
Without CONSULT-ll
1. Connect IPDM E/R connector.
2. Turn ignition ON.
3. Start up auto active test. Refer to PG-22, "
Auto Active Test" .
4. Check voltage between IPDM E/R harness connector terminal and ground while front wiper LO is operat-
ing.
OK or NG
OK >> Replace front wiper drive assembly. Refer to WW-43, "Removal and Installation of Front Wiper
Drive Assembly" .
NG >> Replace IPDM E/R. Refer to PG-37, "
Removal and Installation of IPDM E/R" .
Only Front Wiper Hi Does Not Operate
BKS001HO
1. ACTIVE TEST
With CONSULT-ll
1. Select “IPDM E/R” on CONSULT-II, and select “ACTIVE TEST”
on “SELECT DIAG MODE” screen.
2. Select “FRONT WIPER” on “SELECT TEST ITEM” screen.
3. Touch “HI” screen.
Without CONSULT-ll
Start up auto active test. Refer to PG-22, "
Auto Active Test" .
Does front wiper operate normally?
YES >> Refer to LT-125, "Combination Switch Inspection" .
NO >> GO TO 2.

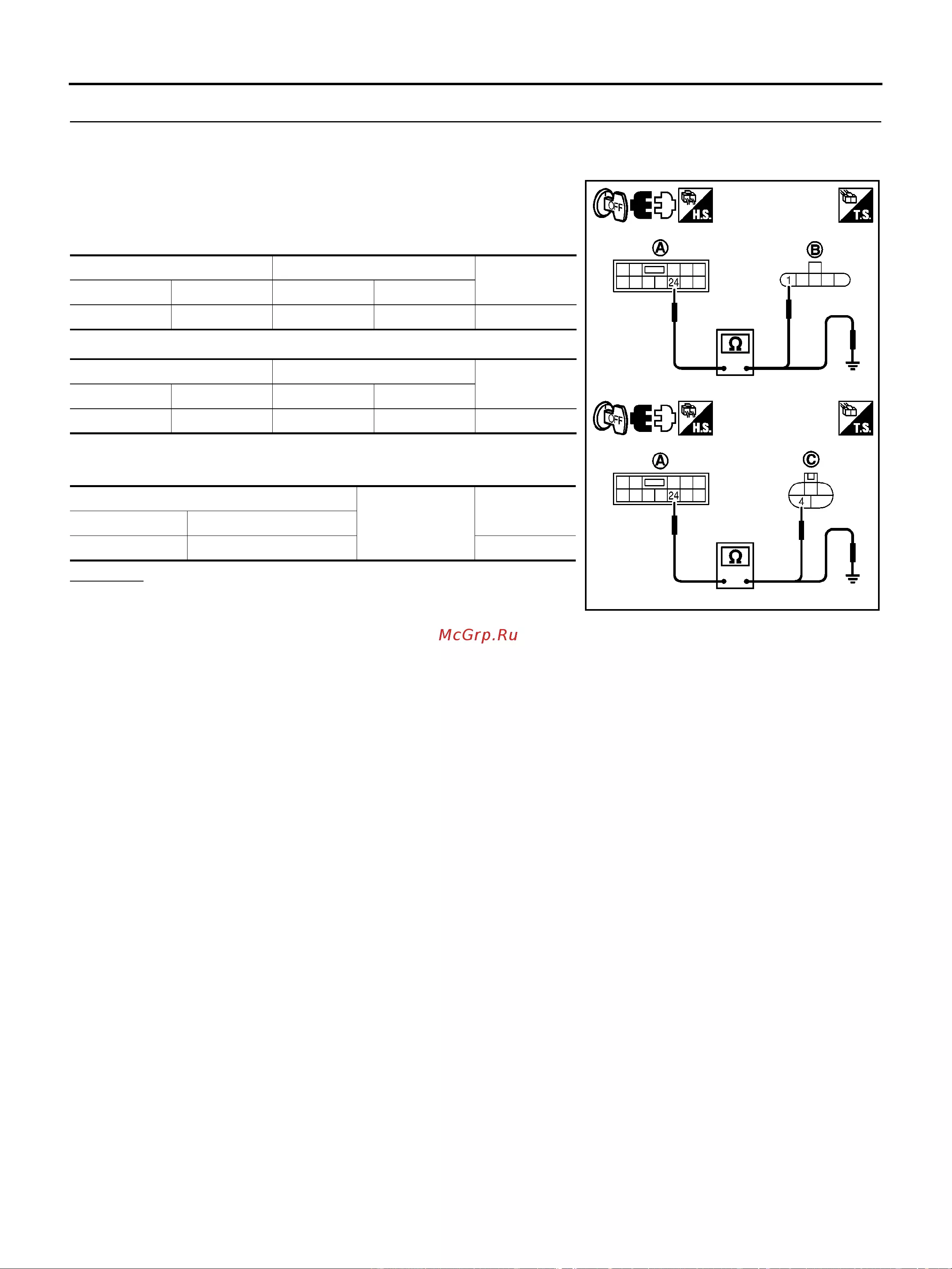

Terminal
Continuity
(+)
(-)
IPDM E/R
connector
Terminal
E10 23 Ground Battery voltage
Terminal
Continuity
(+)
(-)
IPDM E/R
connector
Terminal
E10 23 Ground Battery voltage
MKIB0490E
SKIA3486E
