WW-8
FRONT WIPER AND WASHER SYSTEM
COMBINATION SWITCH READING FUNCTION
Description
● BCM reads combination switch (wiper) status, and controls related systems such as headlamps and wip-
ers, according to the results.
● BCM reads information for a maximum of 20 switches by combining 5 output terminals (OUTPUT 1-5) and
5 input terminals (INPUT 1-5).
Operation Description
● BCM activates transistors of output terminals (OUTPUT 1-5) periodically, and allows current to flow in
turn.
● If any (1 or more) switches are turned ON, the circuit of output terminals (OUTPUT 1-5) and input termi-
nals (INPUT 1-5) becomes active.
● At this time, transistors of output terminals (OUTPUT 1-5) are activated to allow current to flow. When volt-
age of the input terminal (INPUT 1-5) corresponding to that switch changes, the interface in the BCM
detects a voltage change, and the BCM determines that the switch is ON.

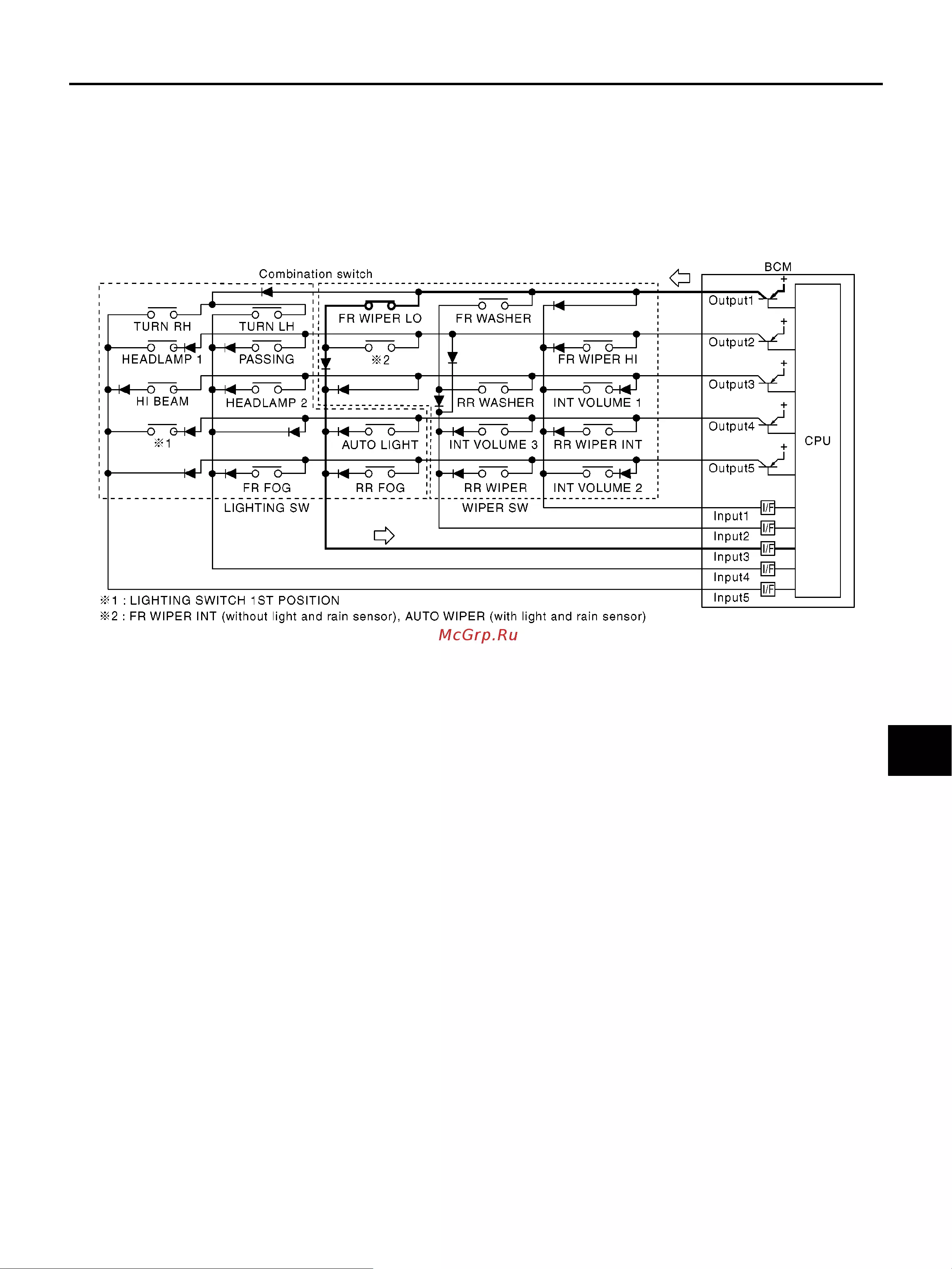

BCM - Operation Table of Combination Switches

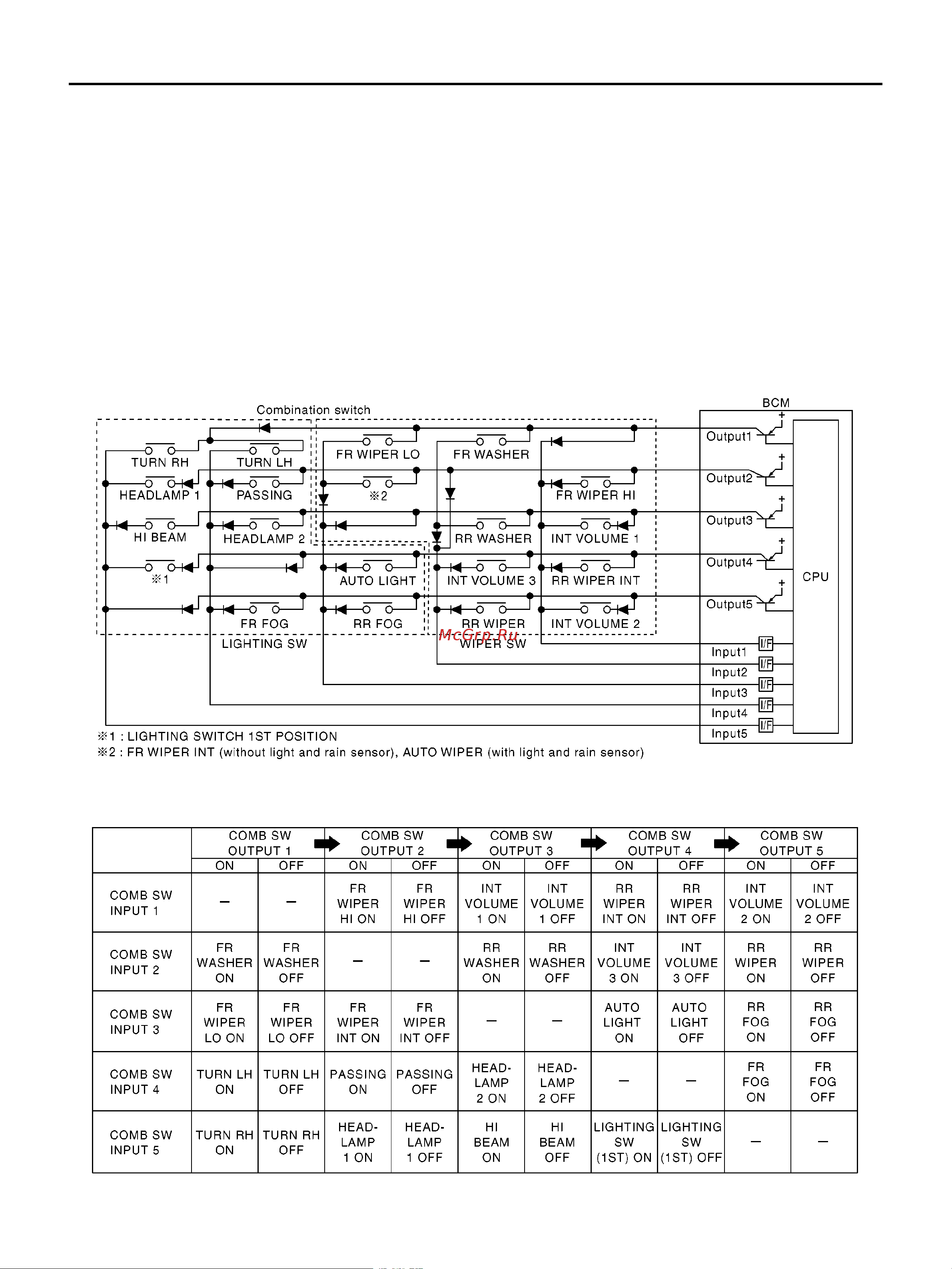

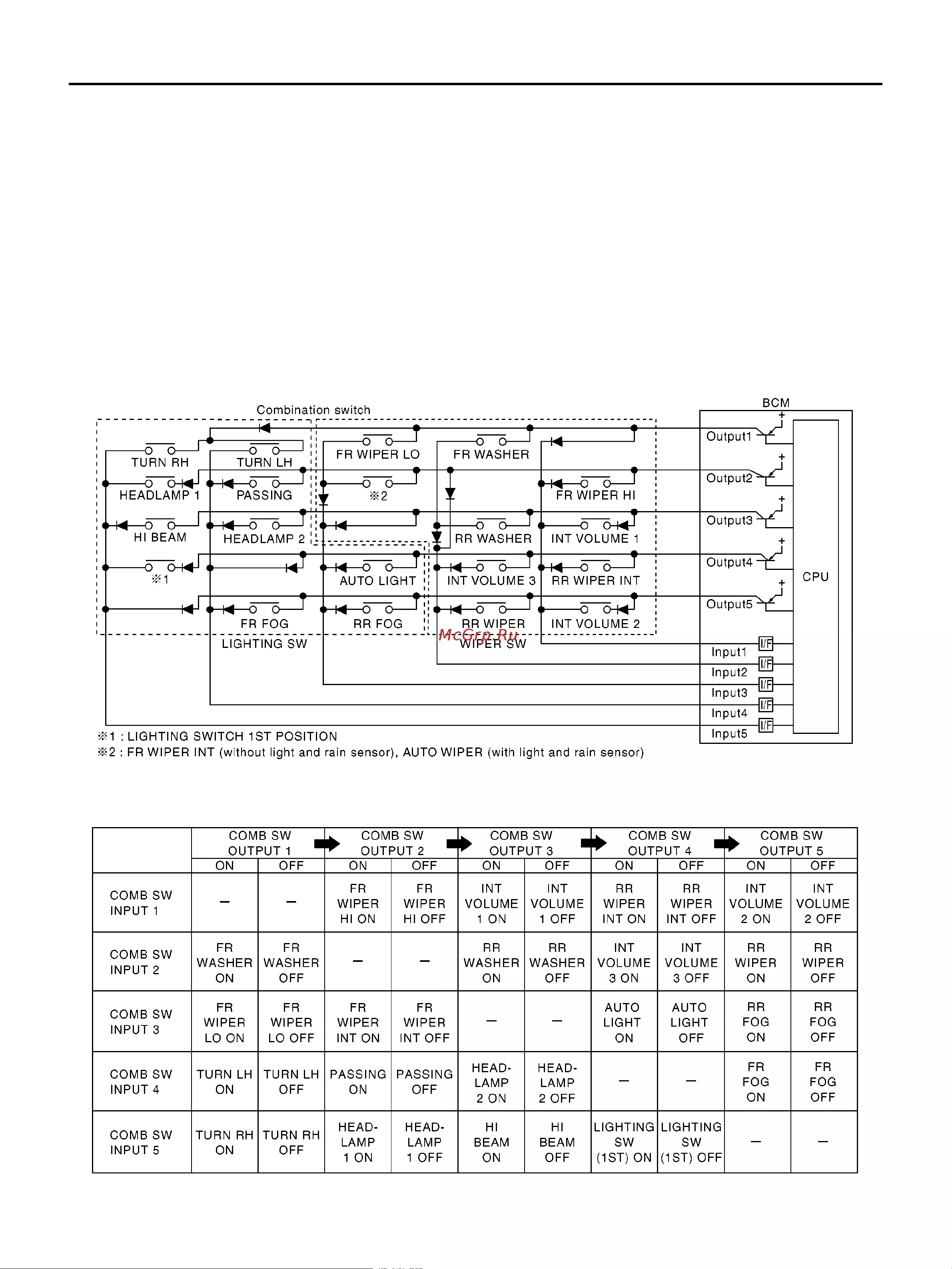

● BCM reads operation status of the combination switch using combinations shown in the table below.
MKIB2223E
PKIC0420E
