WW-44
FRONT WIPER AND WASHER SYSTEM
4. Disconnect wiper motor connector and remove connector clips.

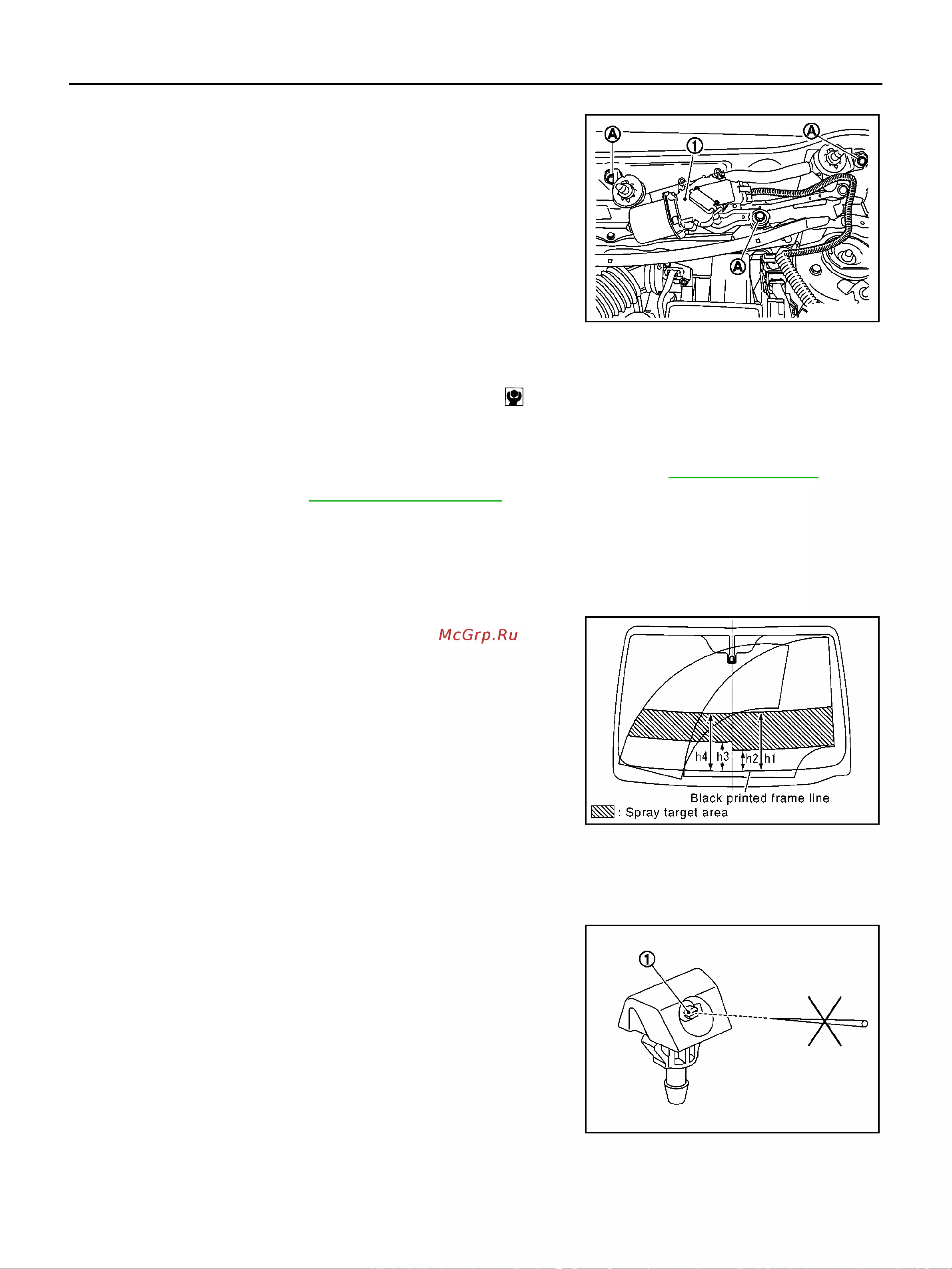

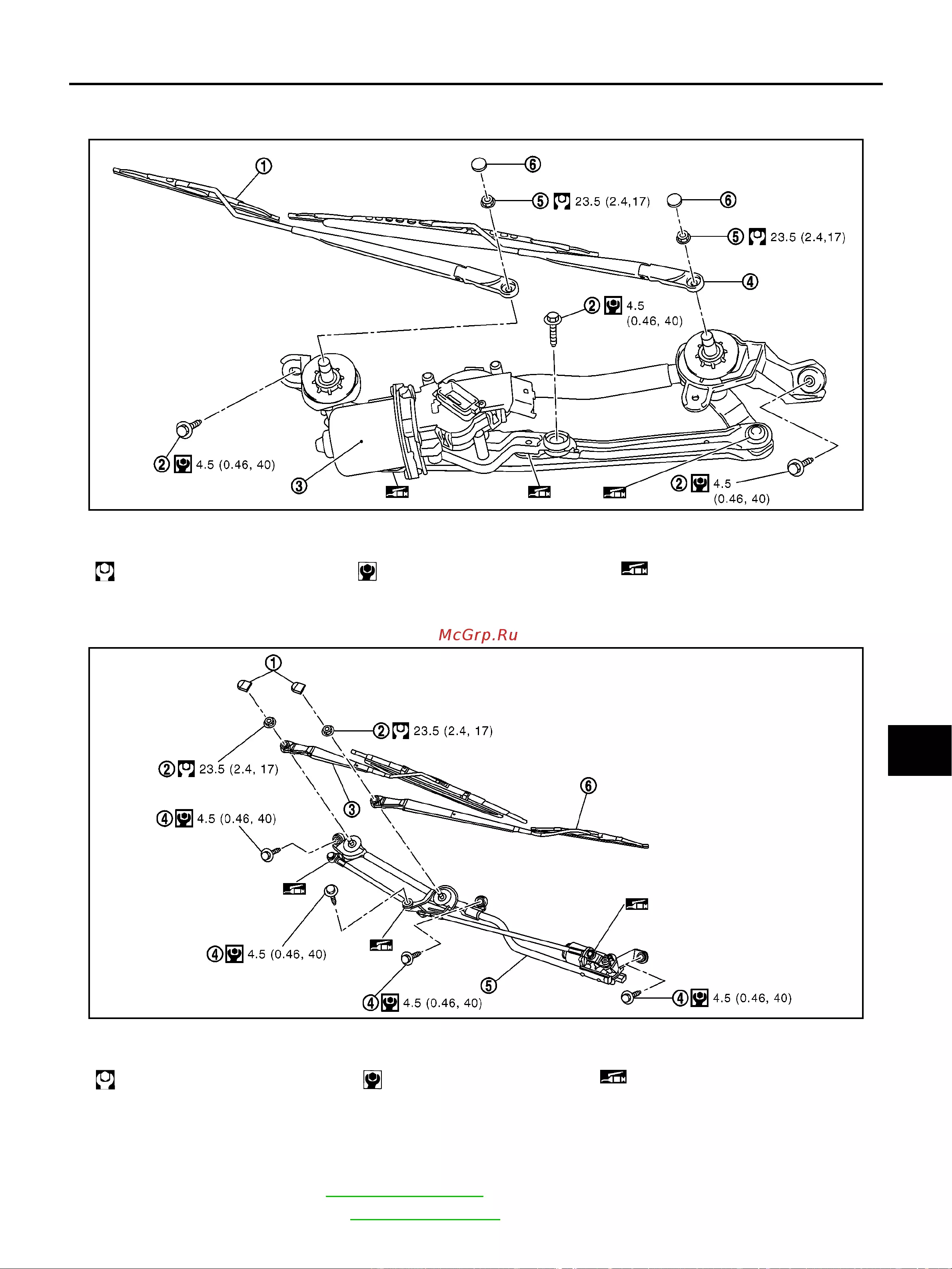

5. Remove front wiper drive assembly mounting bolts (A), and
remove front wiper drive assembly (1) from the vehicle.
INSTALLATION
1. Install front wiper drive assembly to the vehicle.
2. Connect wiper motor connector. Turn wiper switch ON to operate wiper motor, then turn wiper switch OFF
(auto stop).
3. Install connector clips to the wiper frame, and install cowl top cover. Refer to EI-12, "
COWL TOP" .
4. Attach wiper arms. Refer to WW-42, "
INSTALLATION" .
5. Adjustment of wiper arm stop location.
6. Install arm caps.

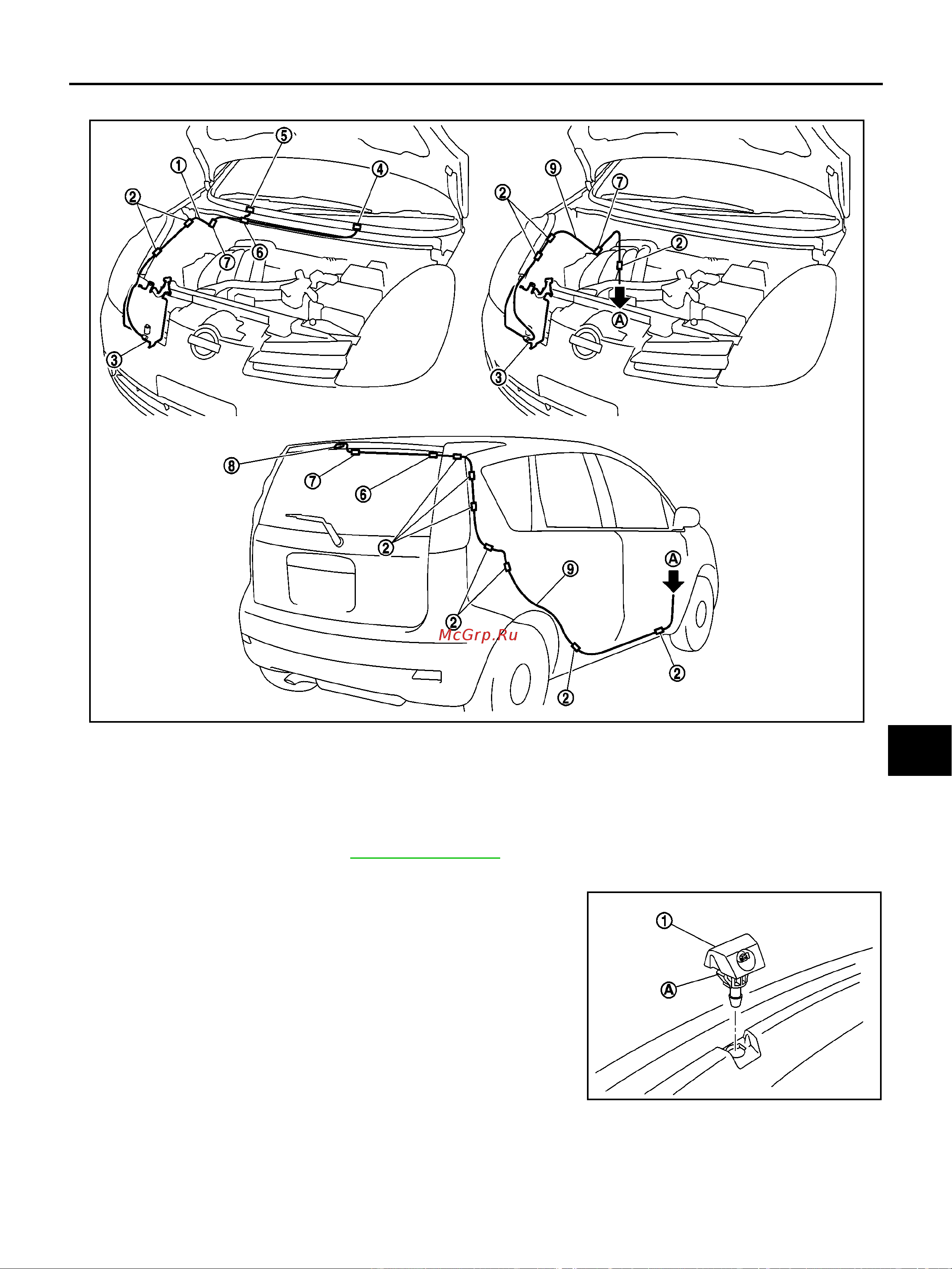

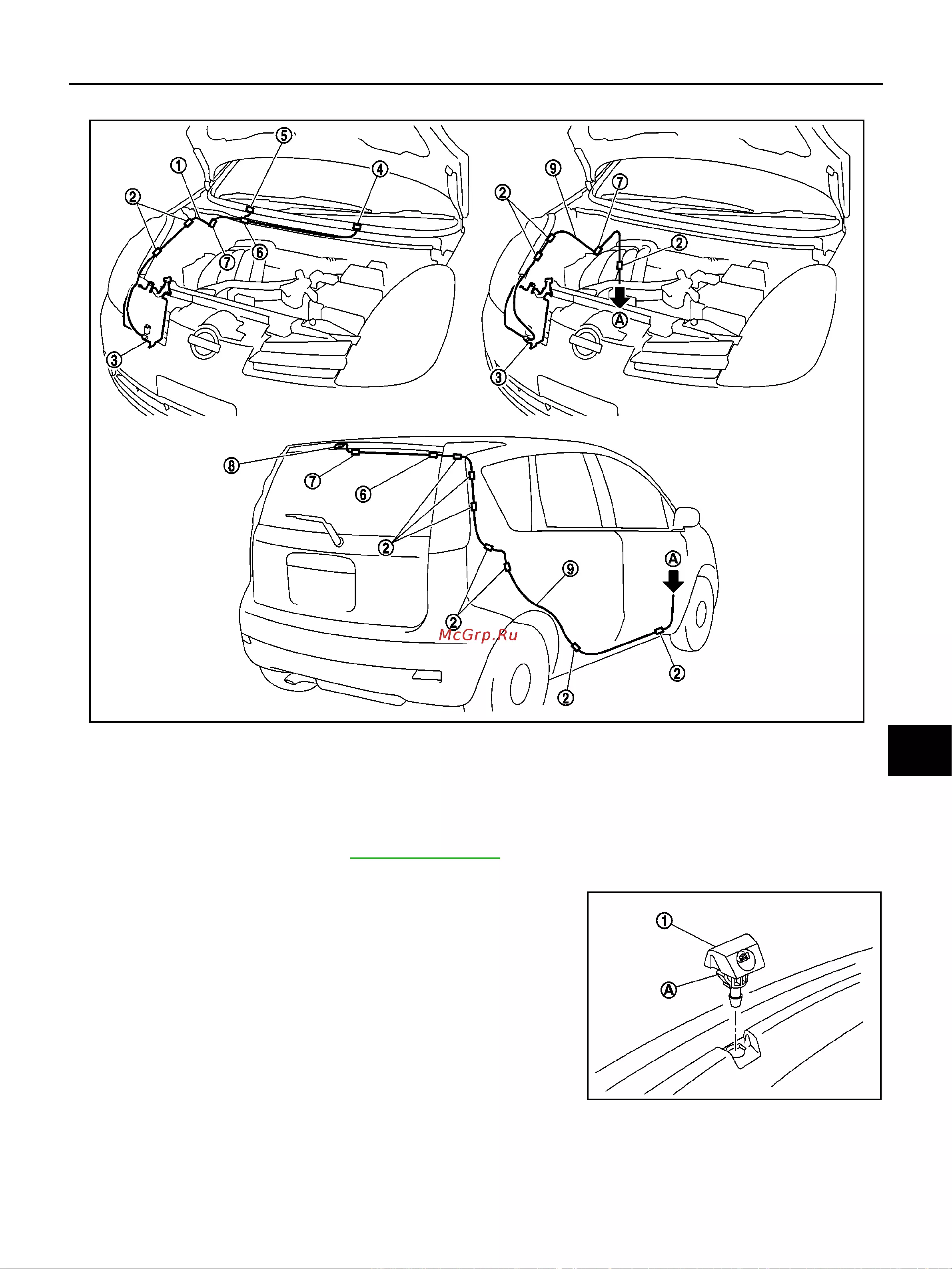

Washer Nozzle Adjustment
BKS0011O
● In this model, the washer nozzle has a non-adjustment nozzle and requires no adjusting.
● If necessary, ensure that washer fluid spray covers at least the
area as shown in the figure.
NOTE:
This illustration is for LHD models. The layout for RHD models is
symmetrically opposite.
● If the above is not satisfied, confirm that the washer nozzle is
installed correctly on the cowl top cover and/or cowl top cover is installed correctly on the body.
● If they are installed correctly, and the fluid is still spraying out of the shooting target areas, replace them
with new washer nozzle and/or cowl top cover.
CAUTION:
Never adjust the washer nozzle (1) with needle pin. If attempts
are made to adjust the washer nozzle with needle pin, the noz-
zle may be damaged.
MKIB2237E
Front wiper drive assembly mounting bolts : 4.5 N- m (0.46kg-m, 40 in-lb)
h1: 320 mm (12.60 in)
h2: 115 mm (4.53 in)
h3: 160 mm (6.30 in)
h4: 315 mm (12.40 in)
MKIB2217E
MKIB2216E
